Liberty | Vault Door Series
The Vault Door combines style with superior theft and fire protection for an elegant look that fits any decor. Massive 4-inch military style locking bars that are 1/2 inch thick will defend against any pry attacks. 2.5-hour fire rated door and heat expanding Palusol door seal protects from smoke and heat. Vault Door includes both inside release 3-point handle and inside lock lever to lock door from the inside as a panic room. If your plans include a whole room full of items to protect...Liberty's Vault Door will get the job done.

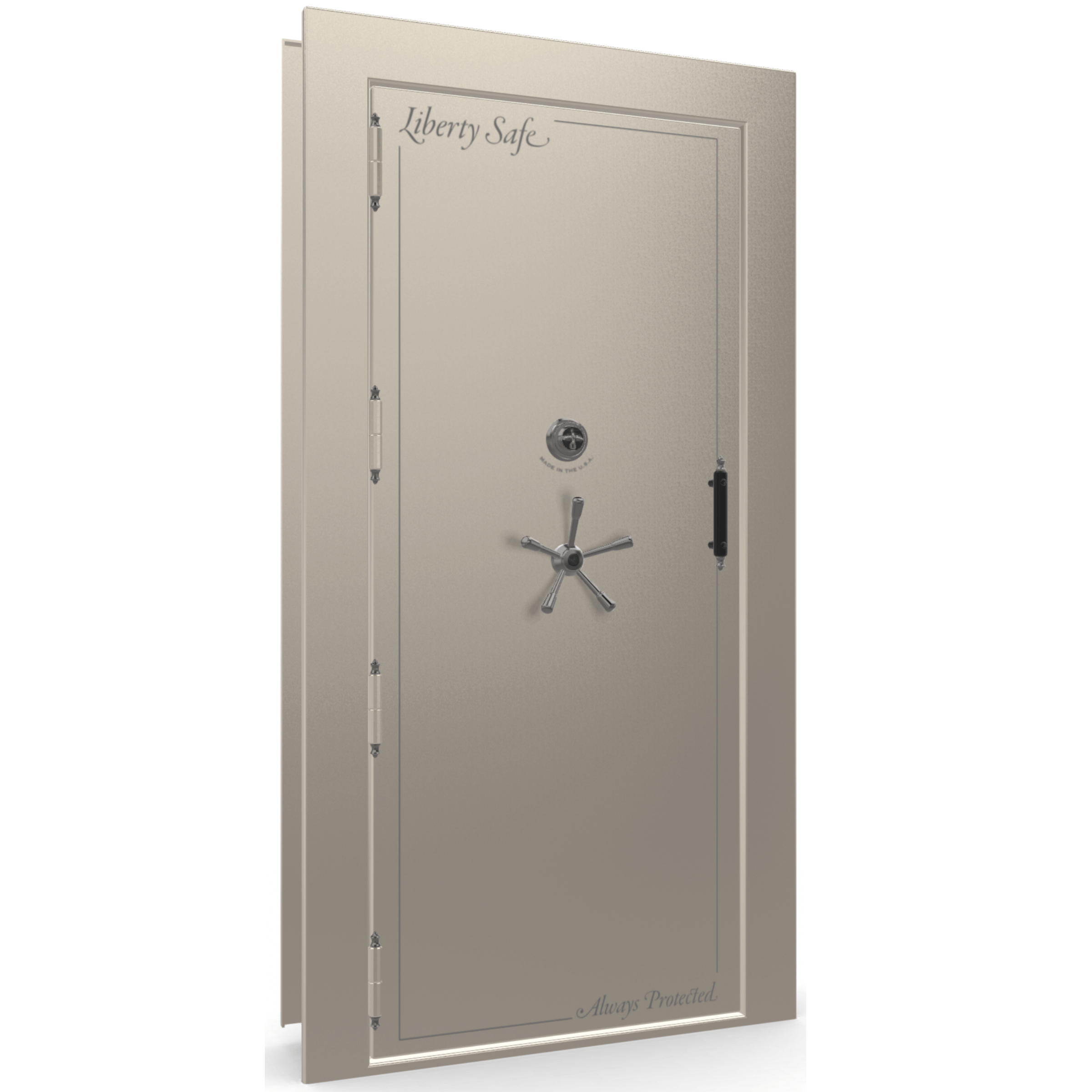

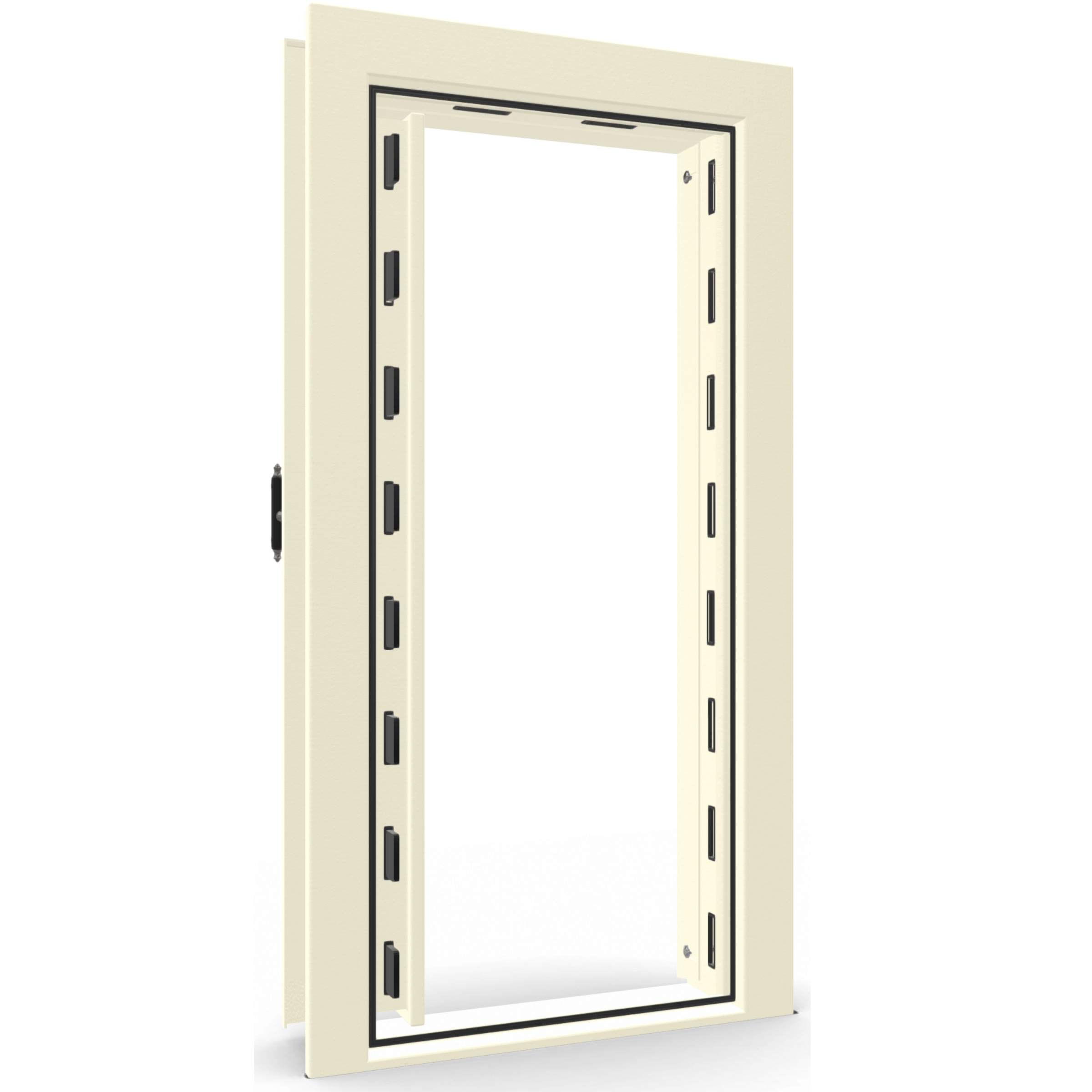

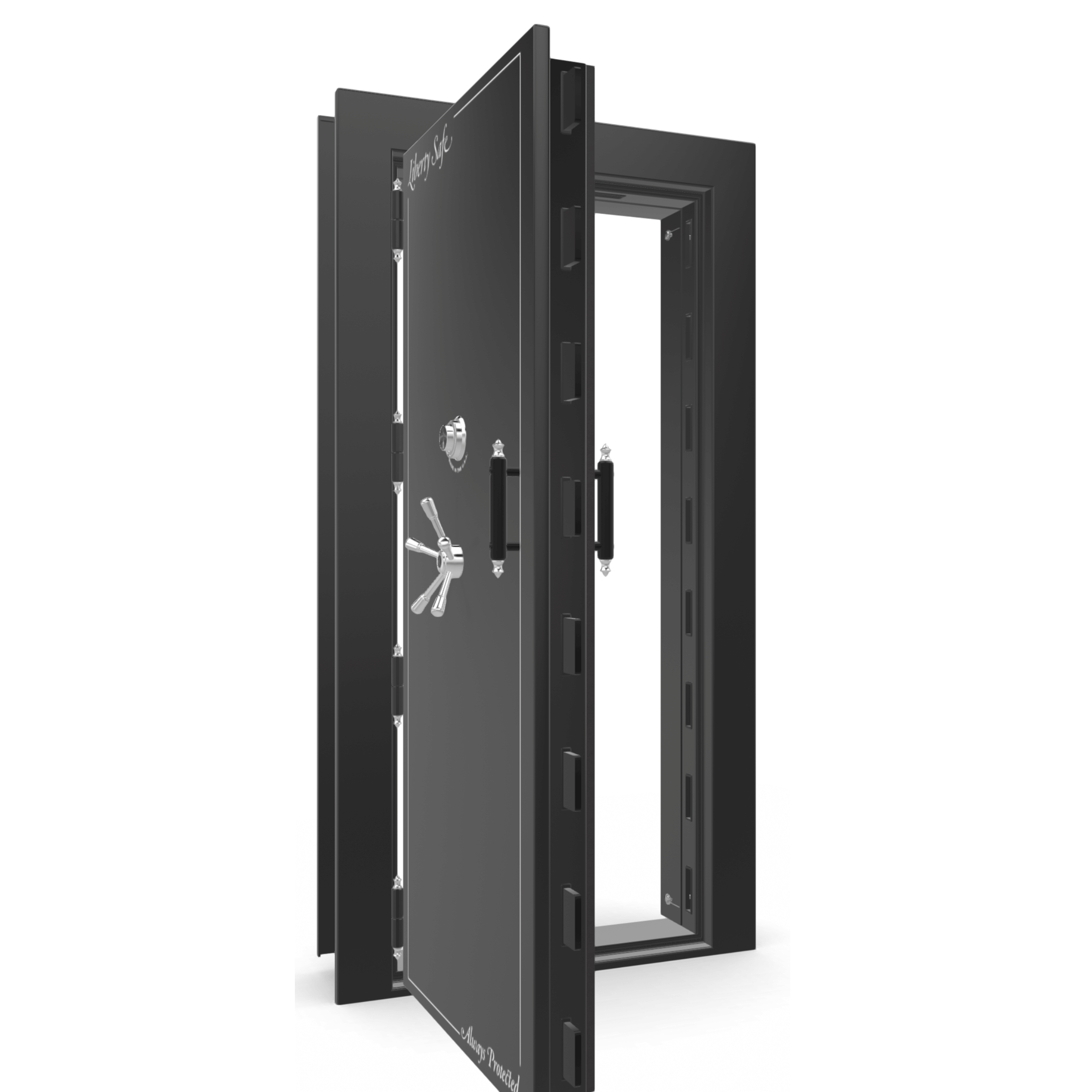

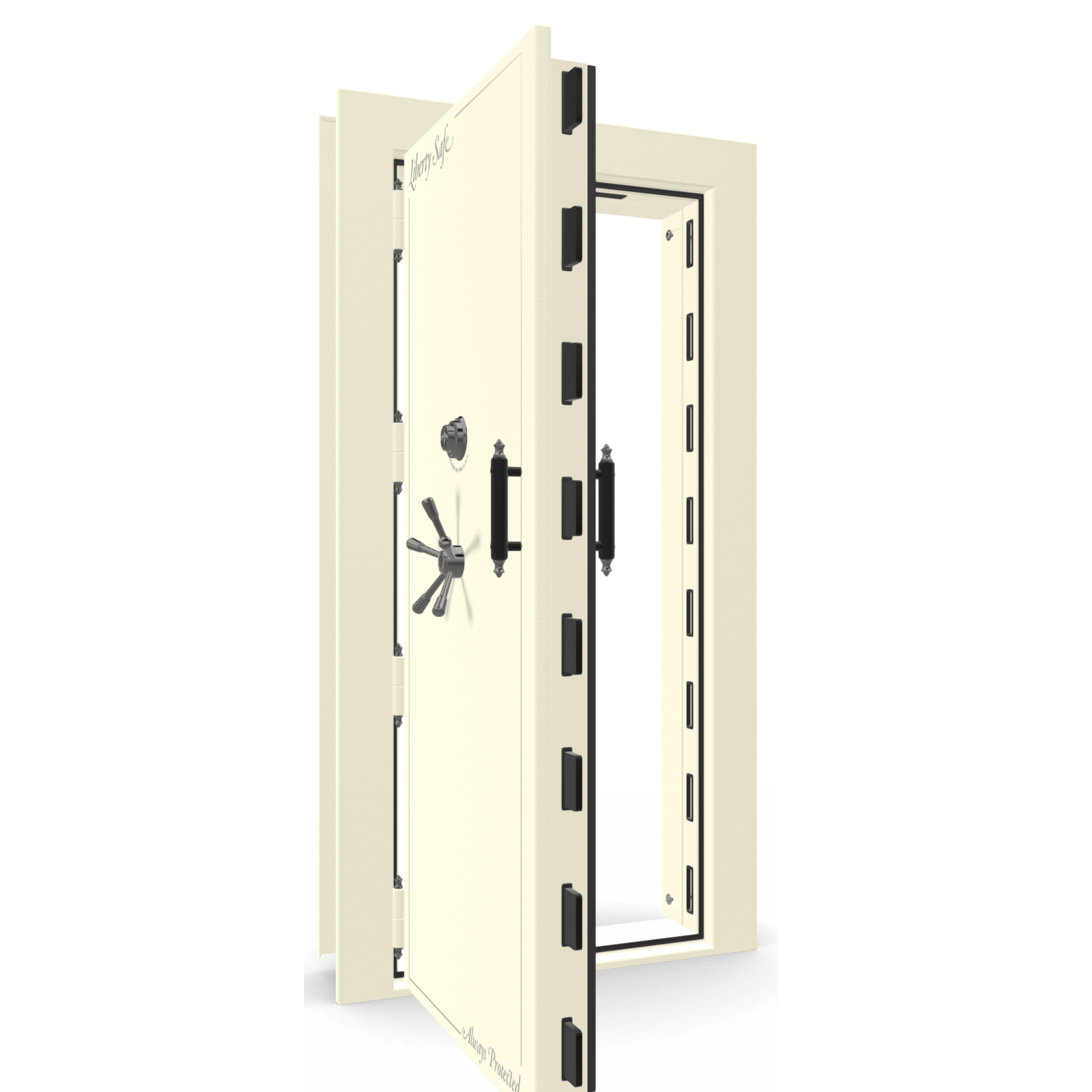

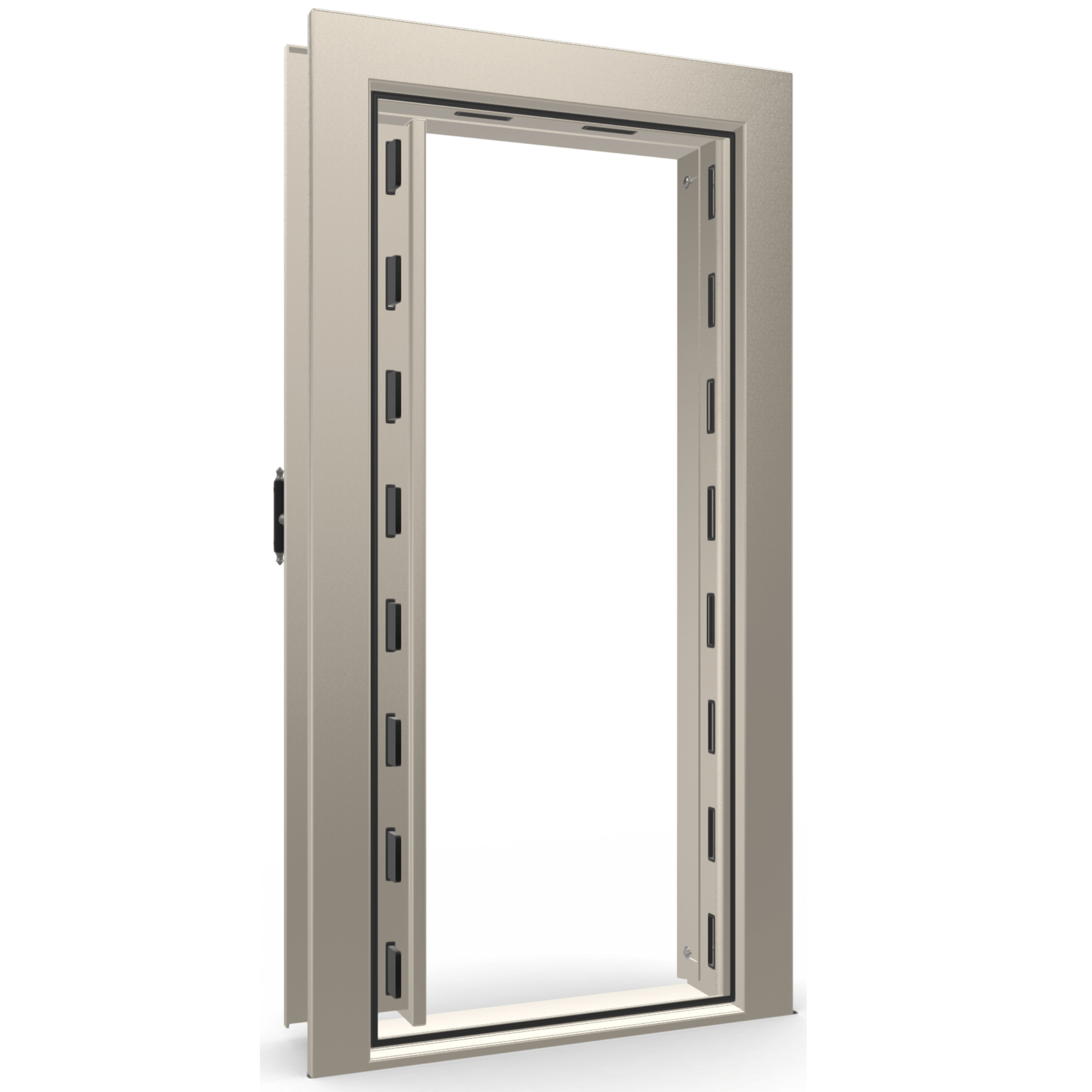

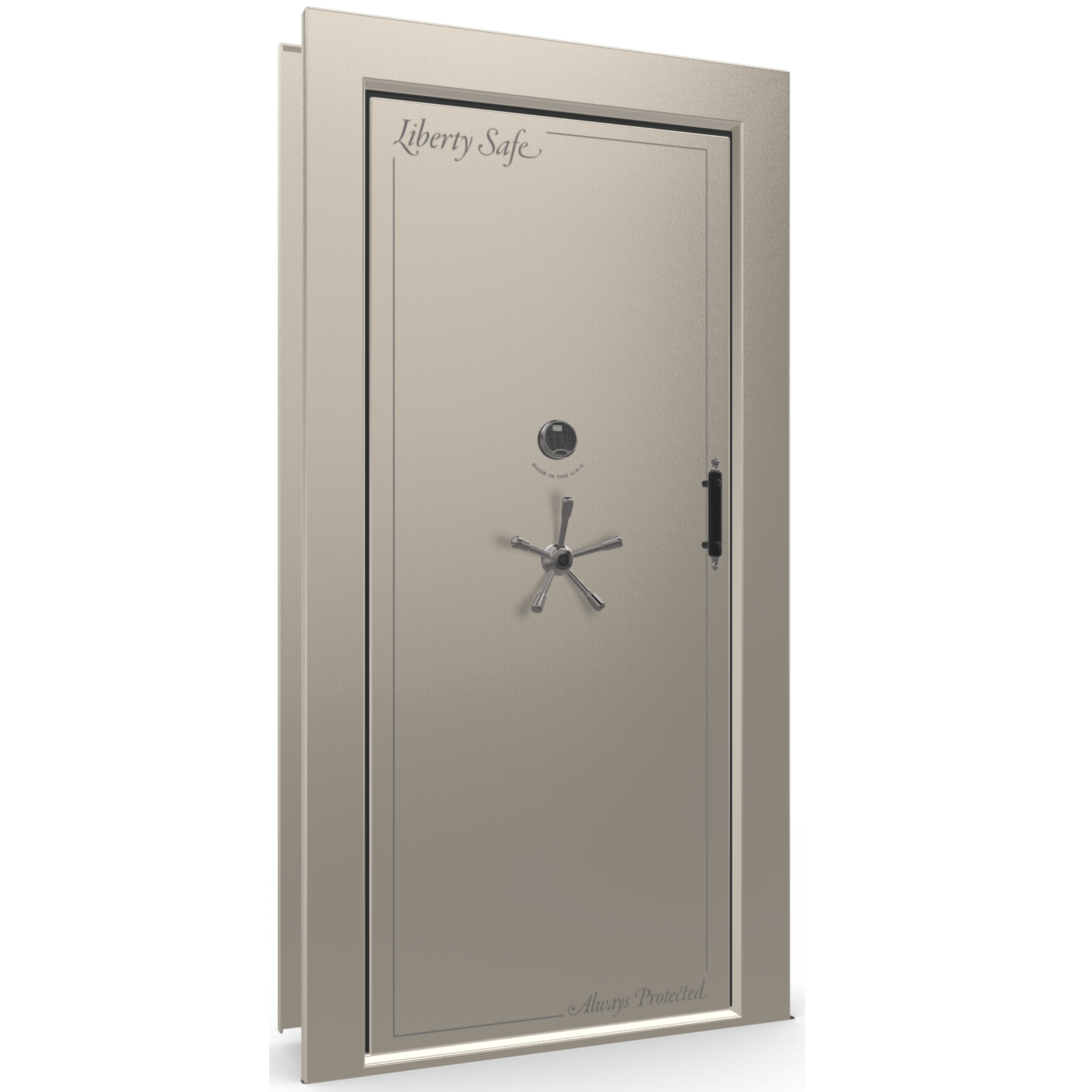

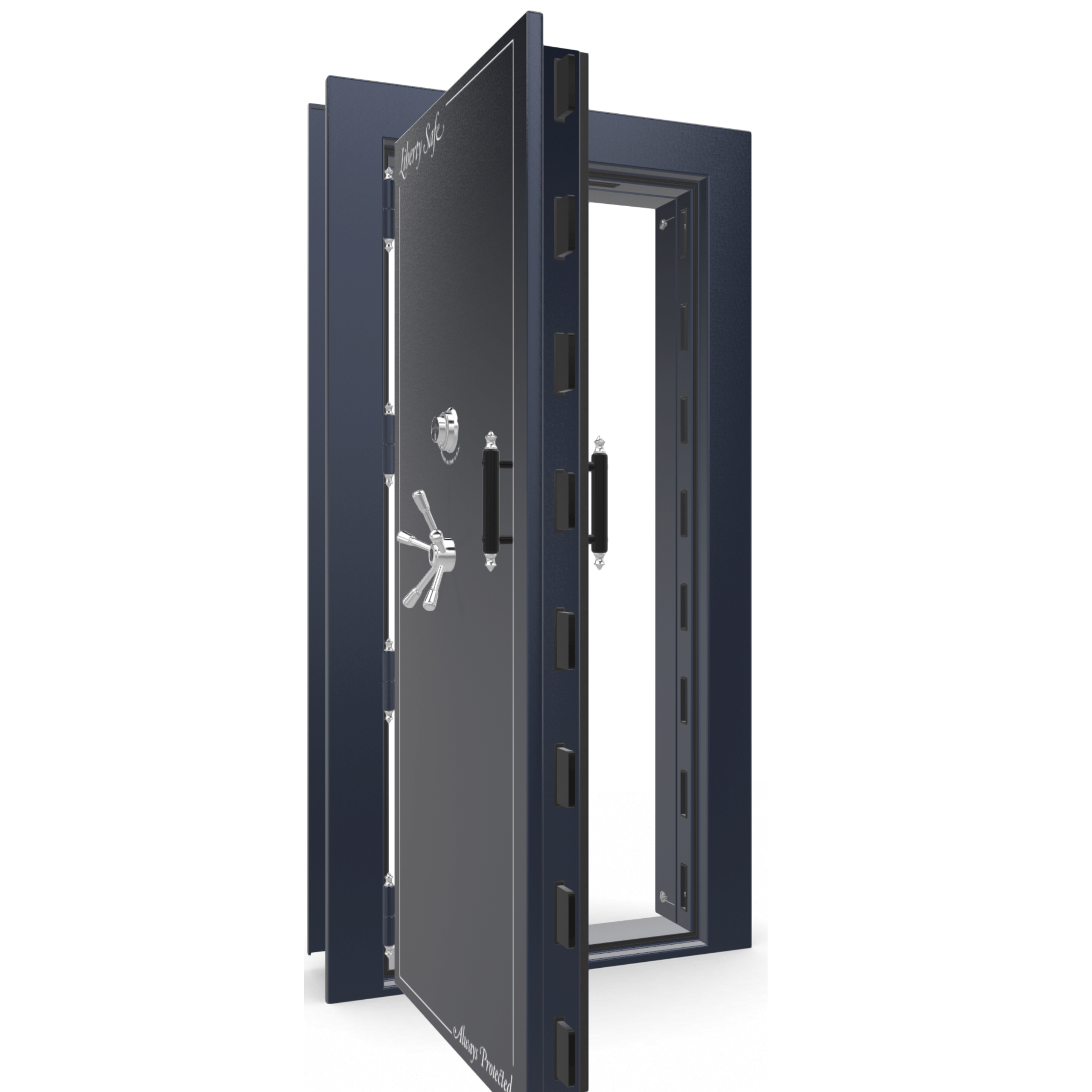

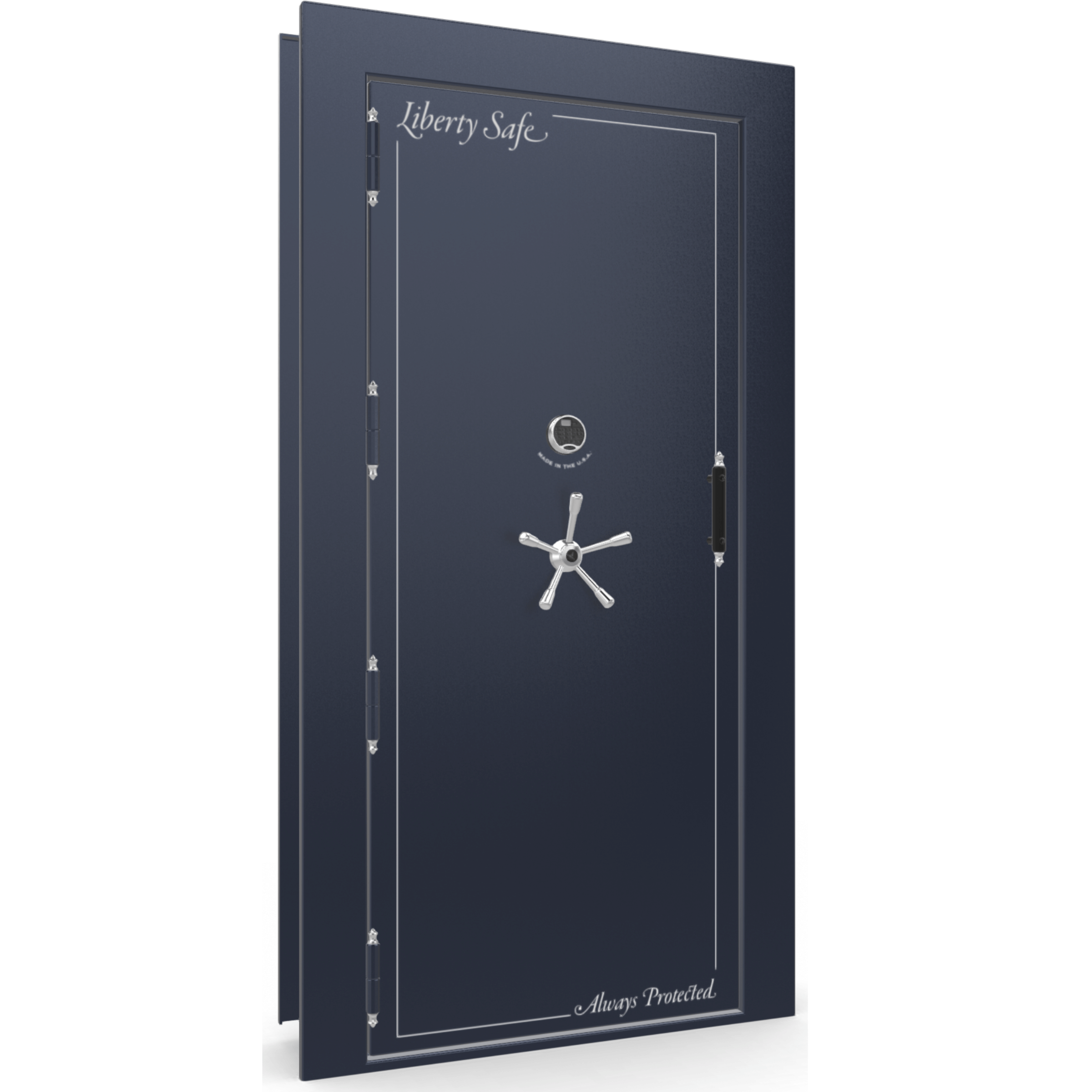

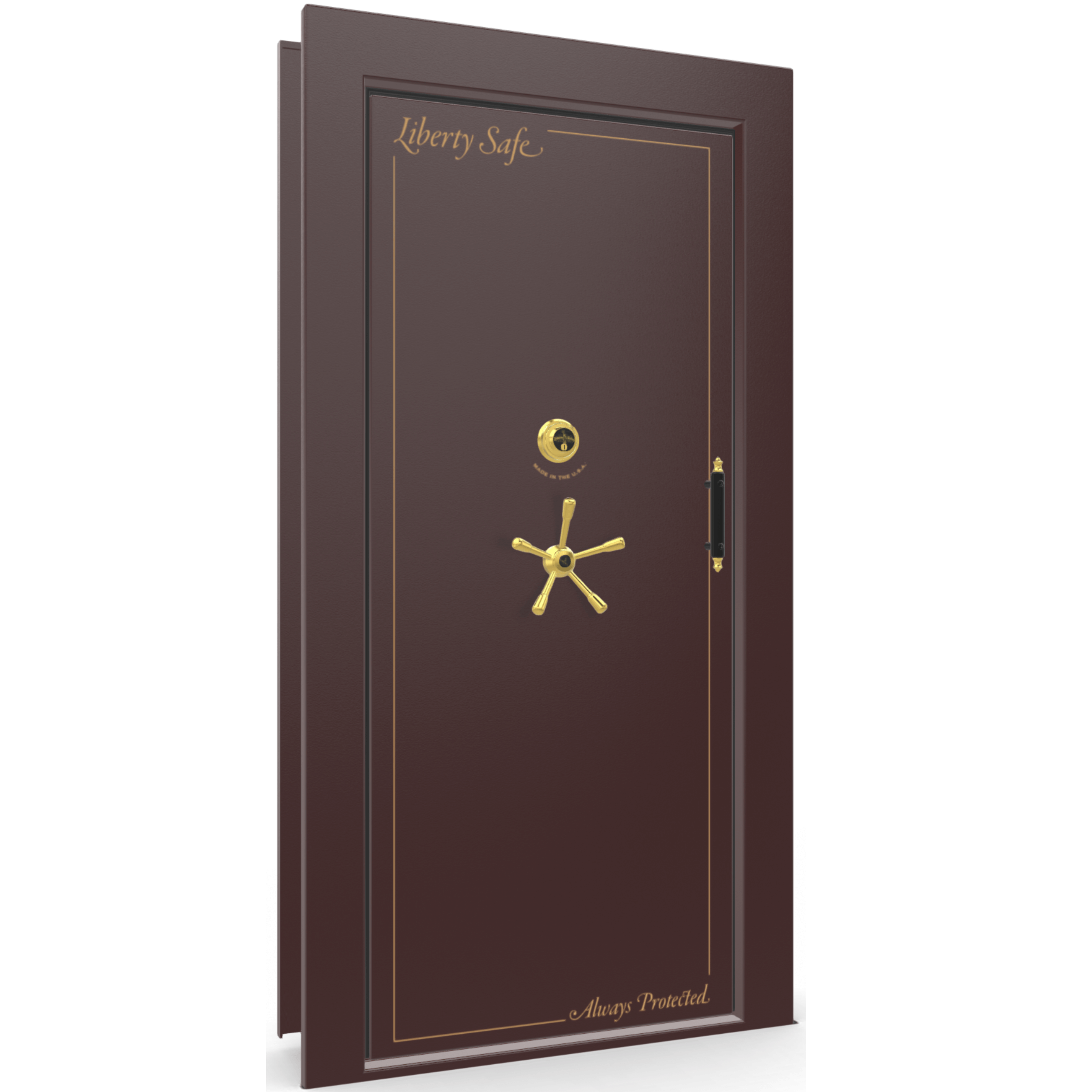

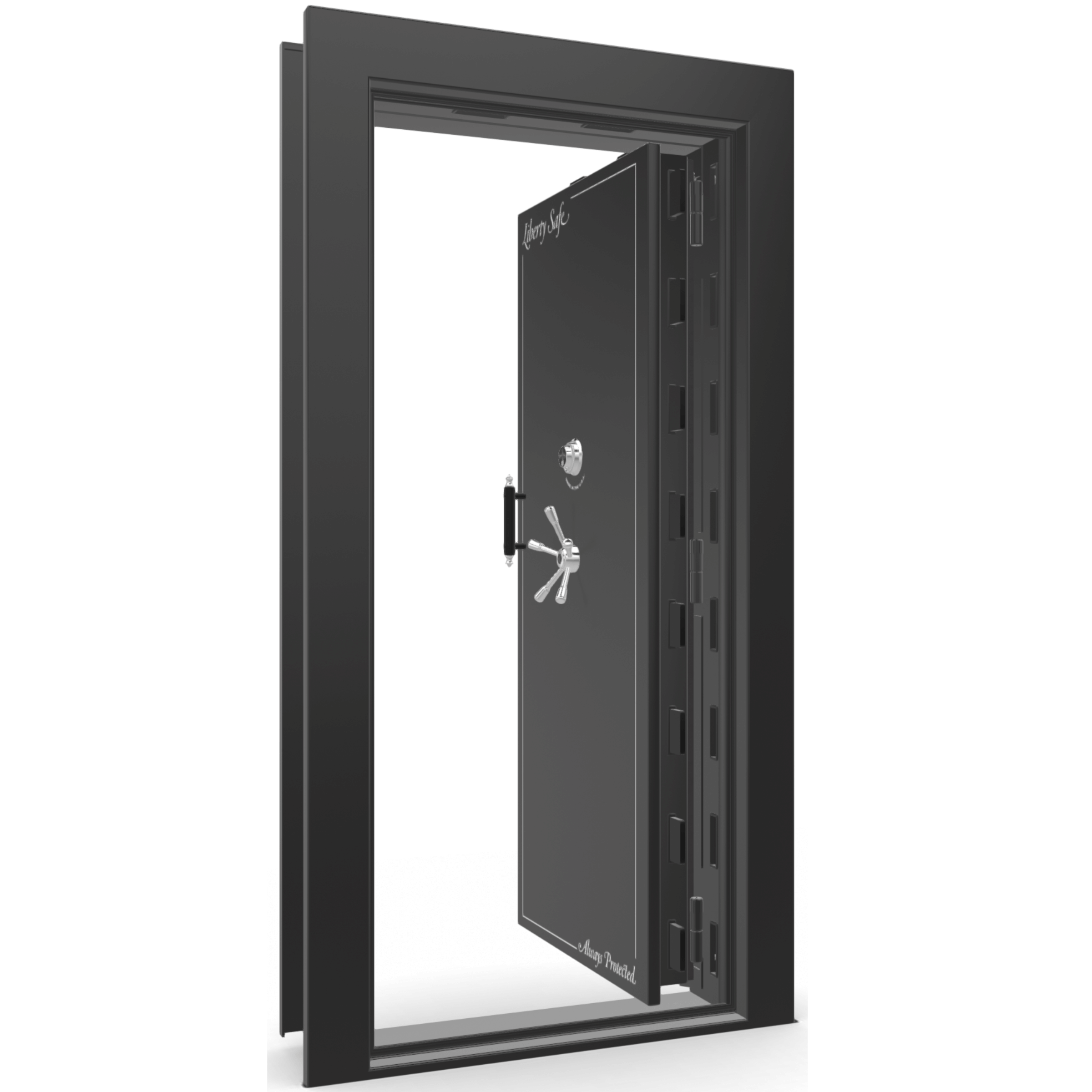

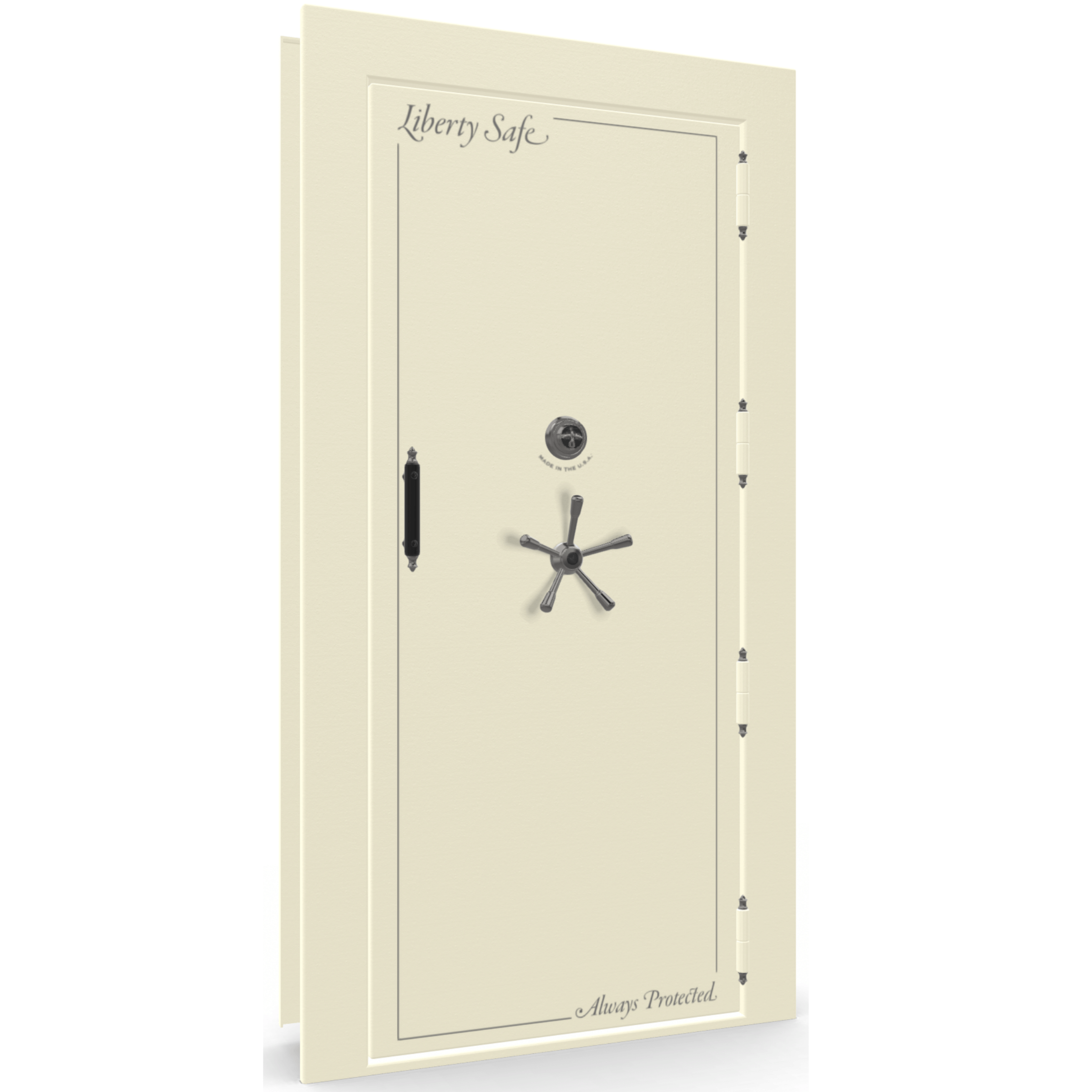

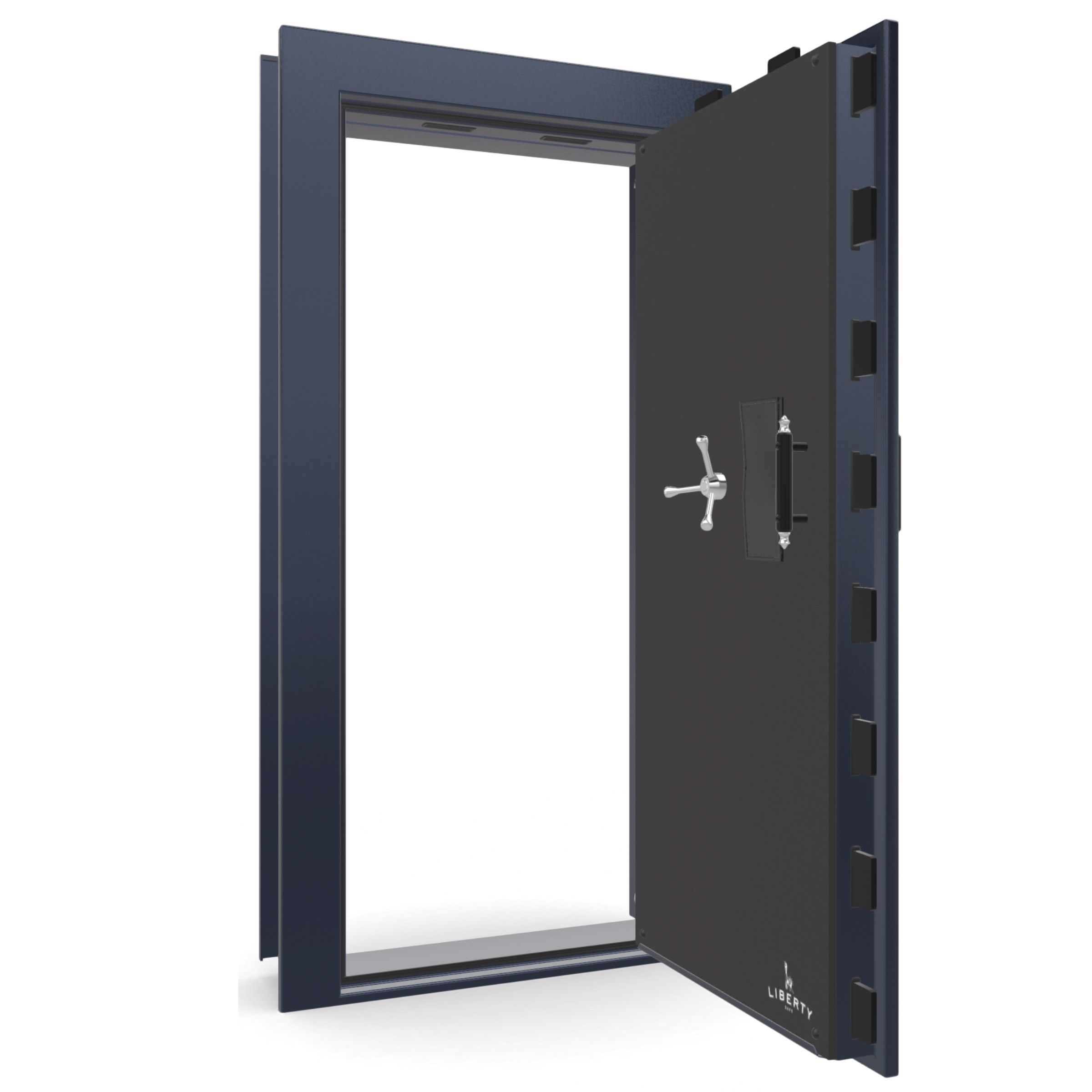

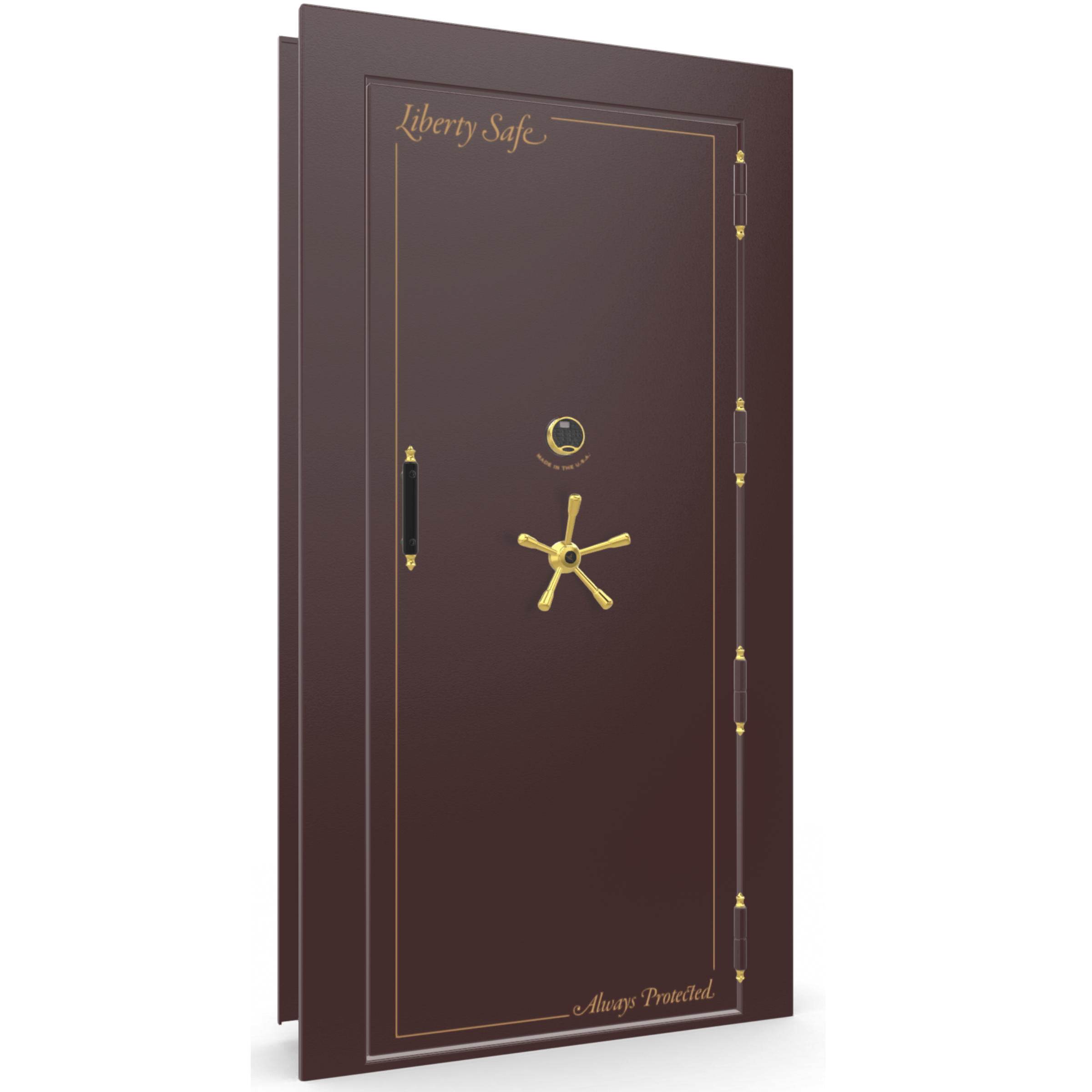

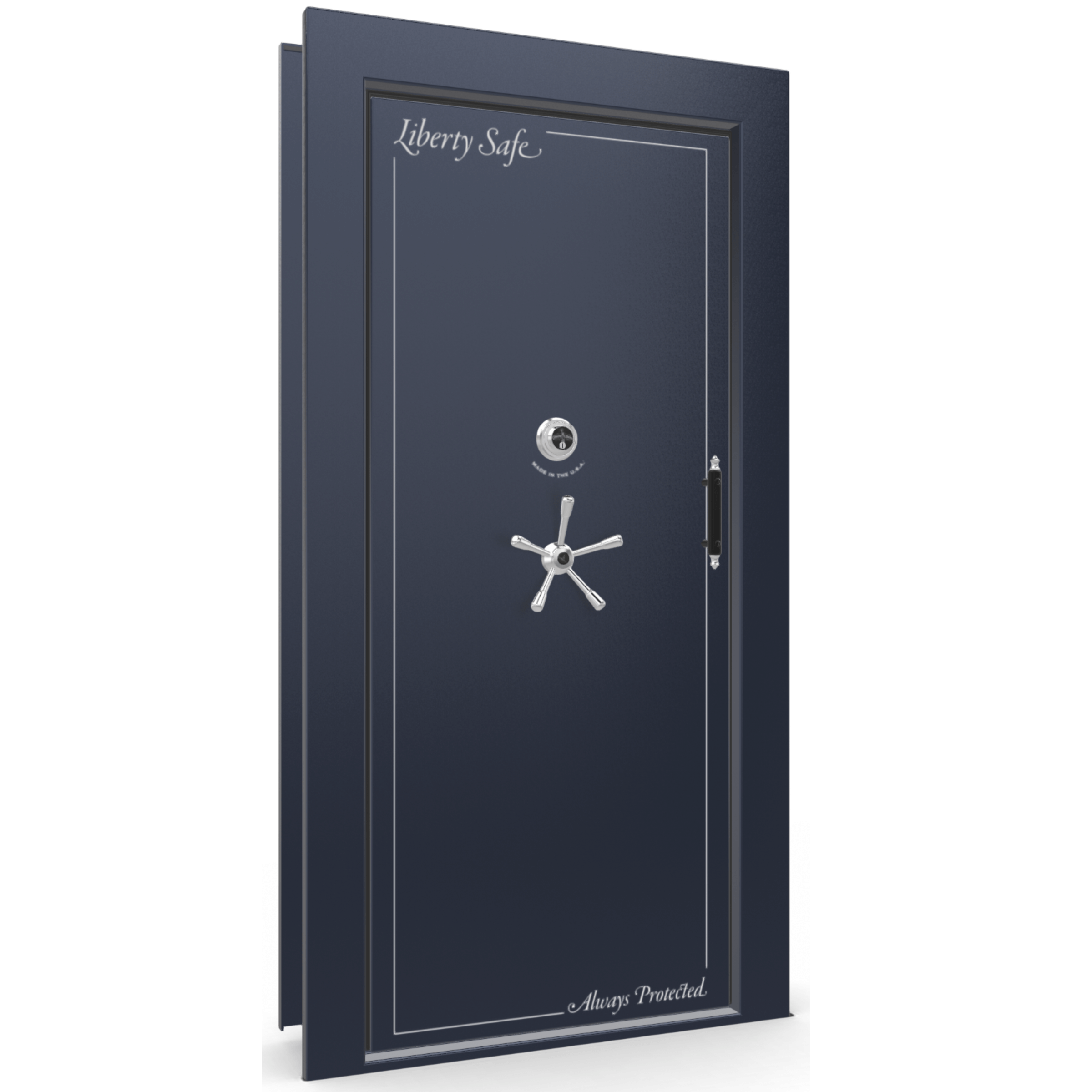

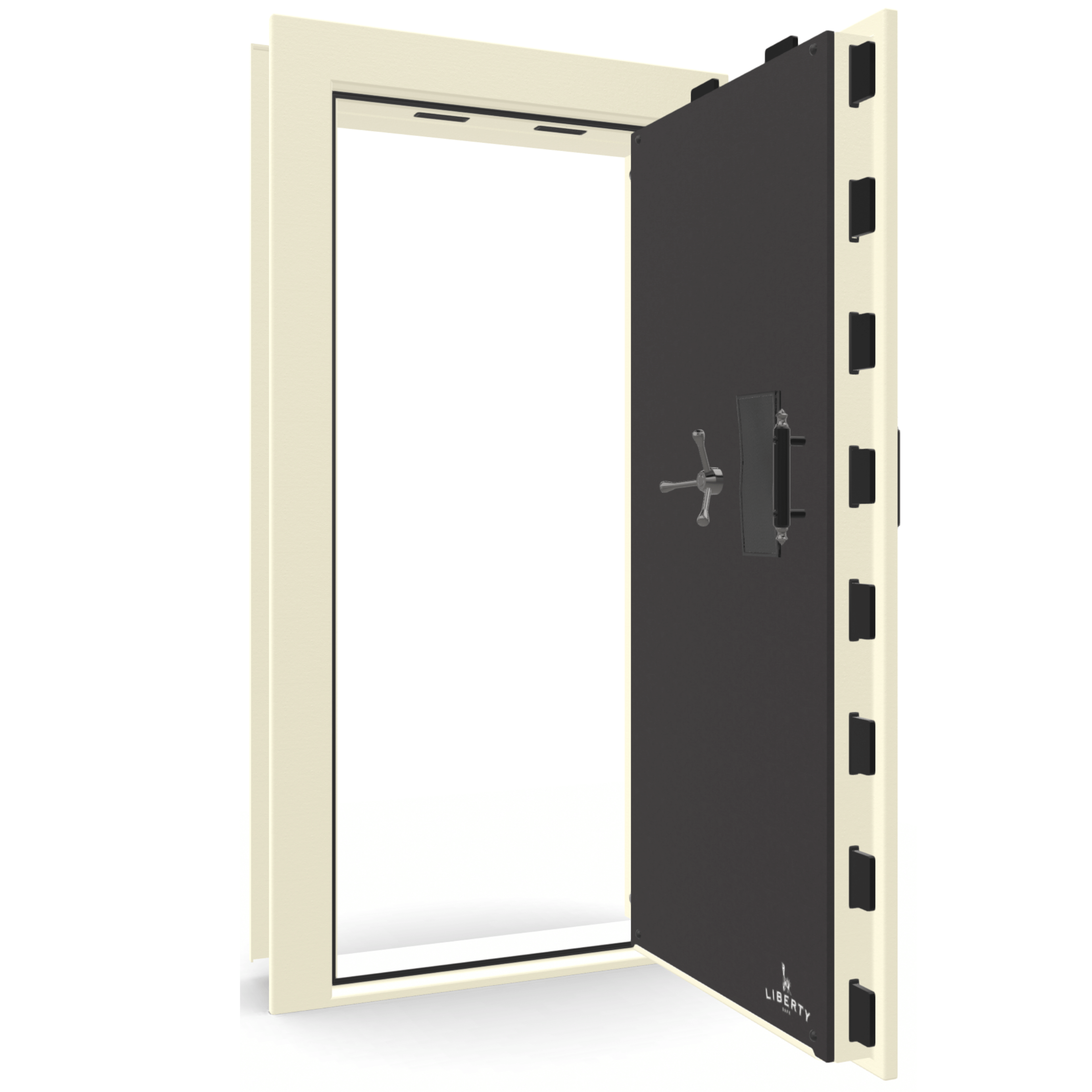

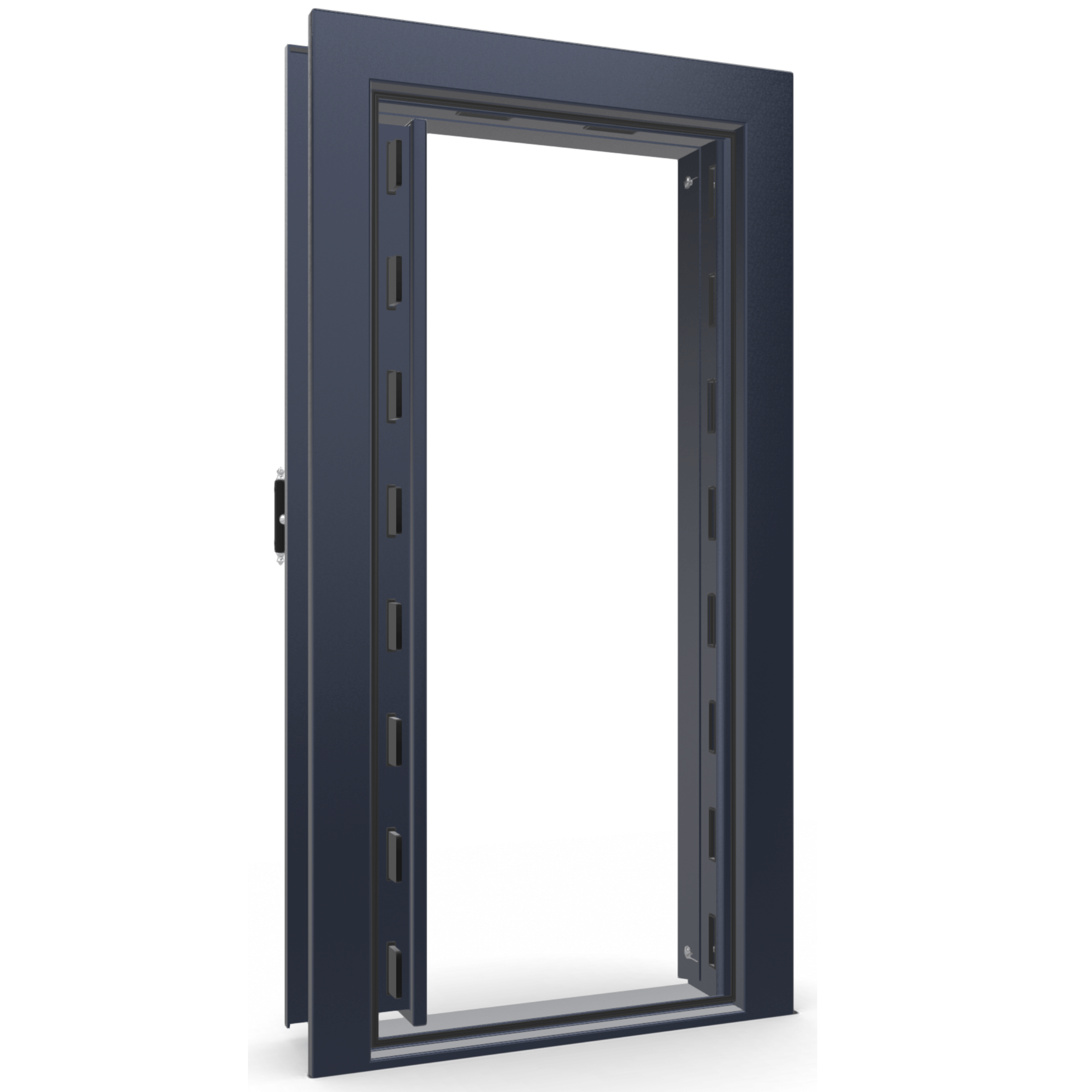

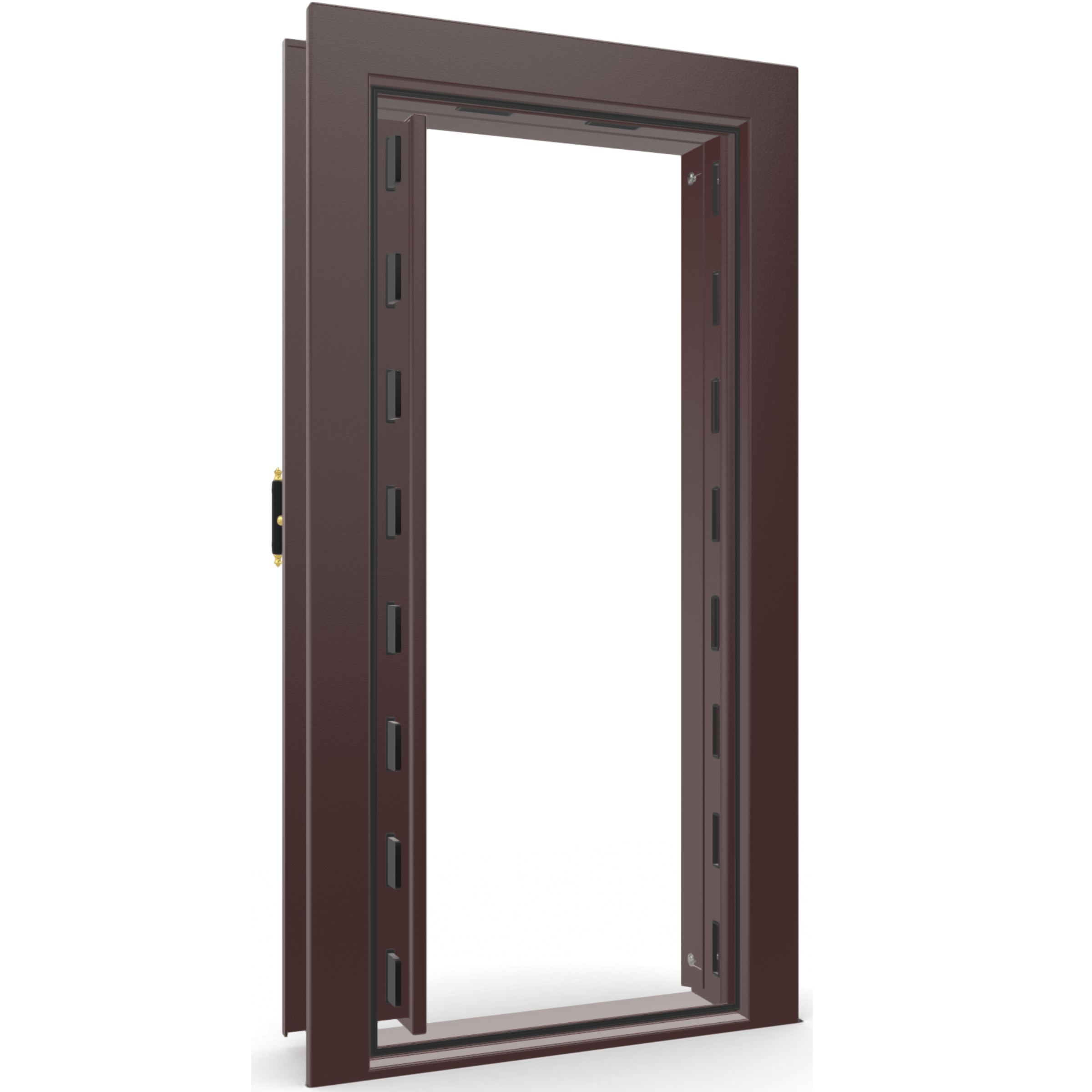

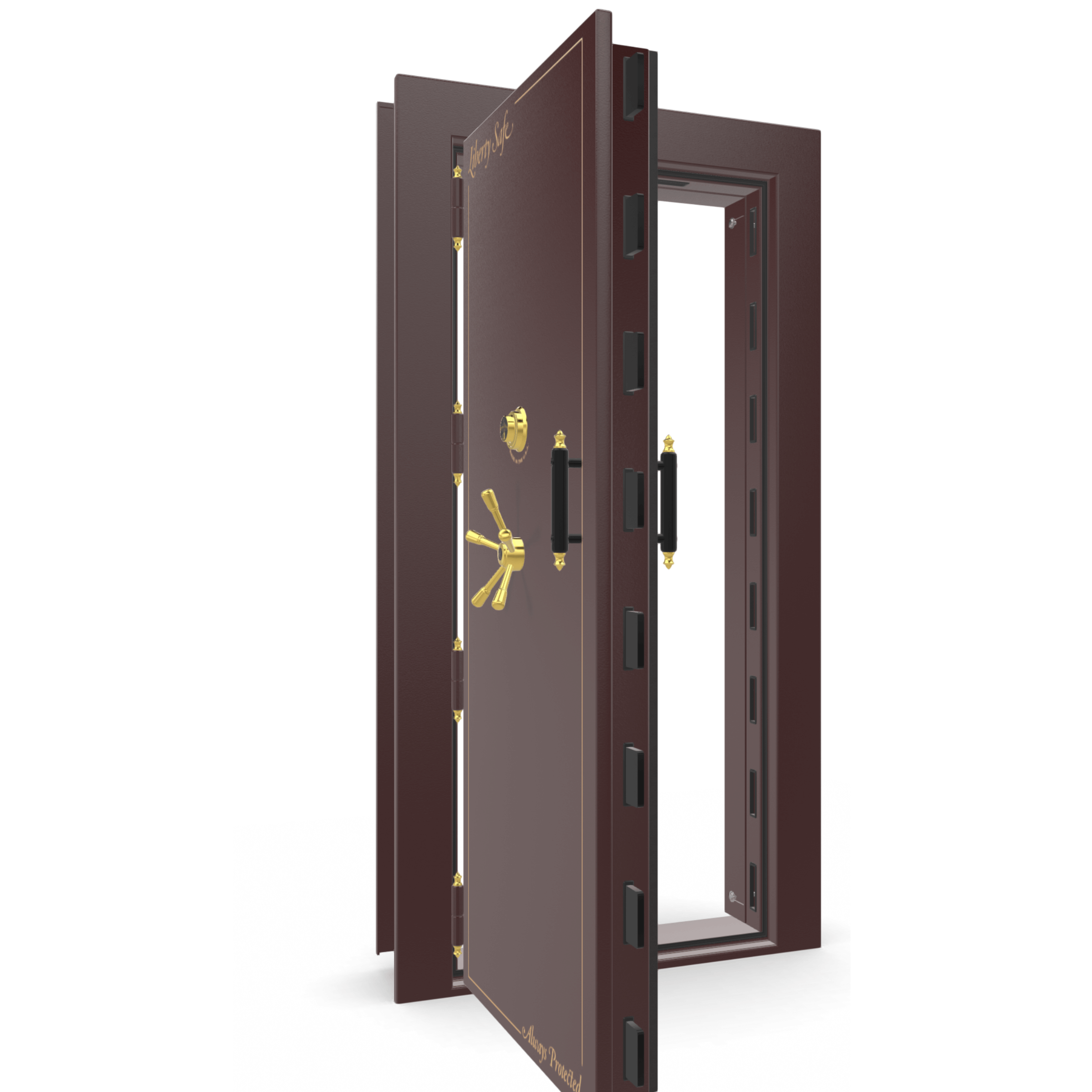

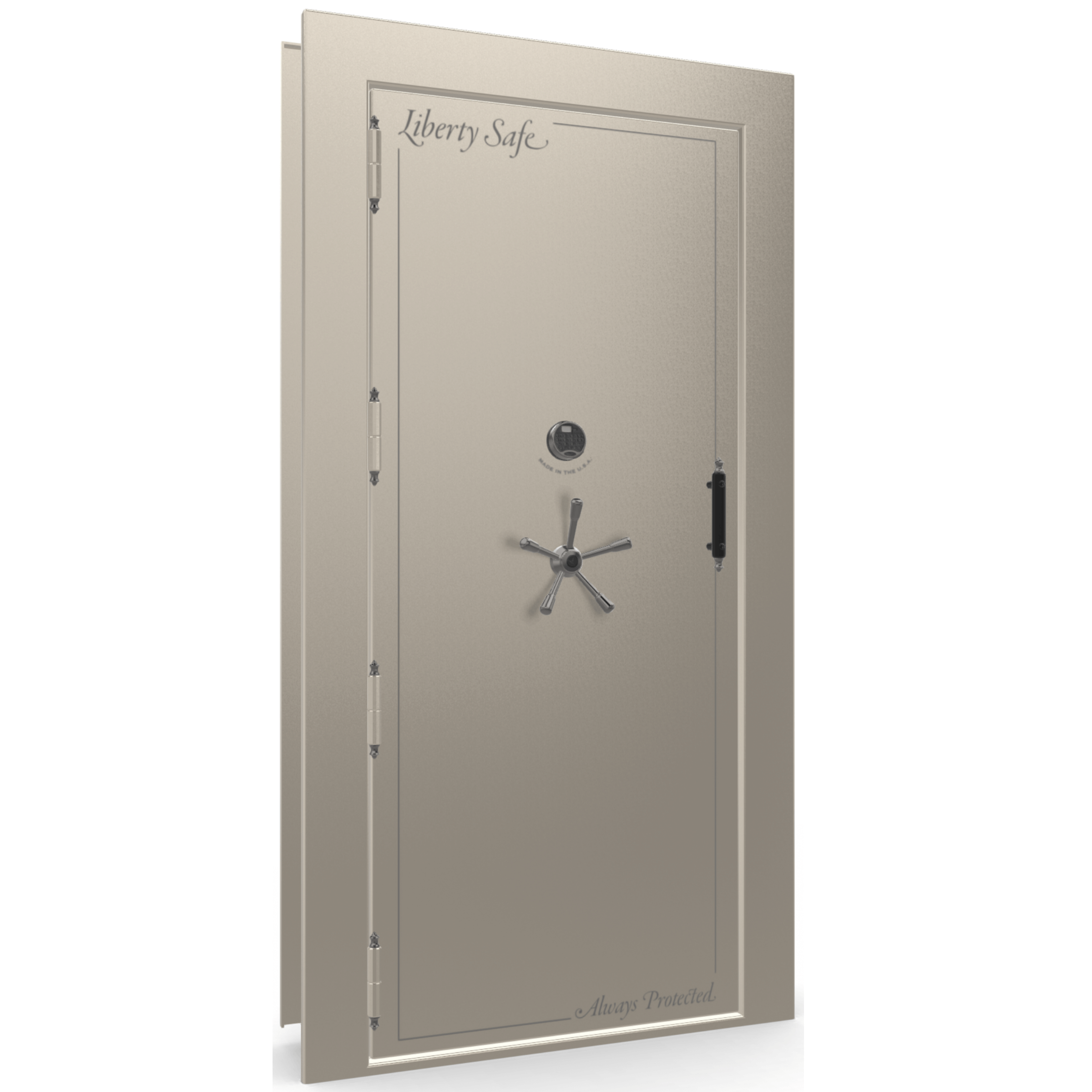

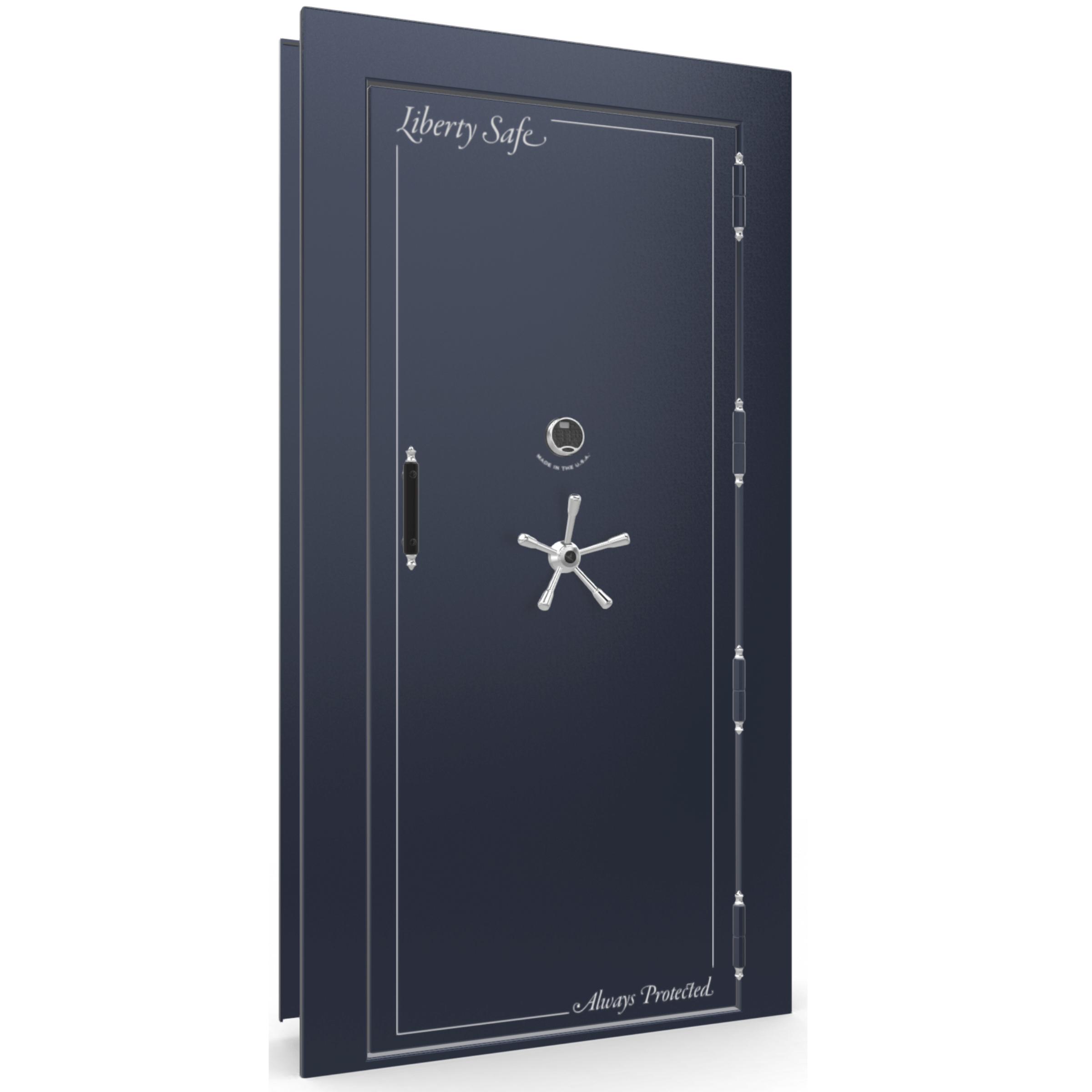

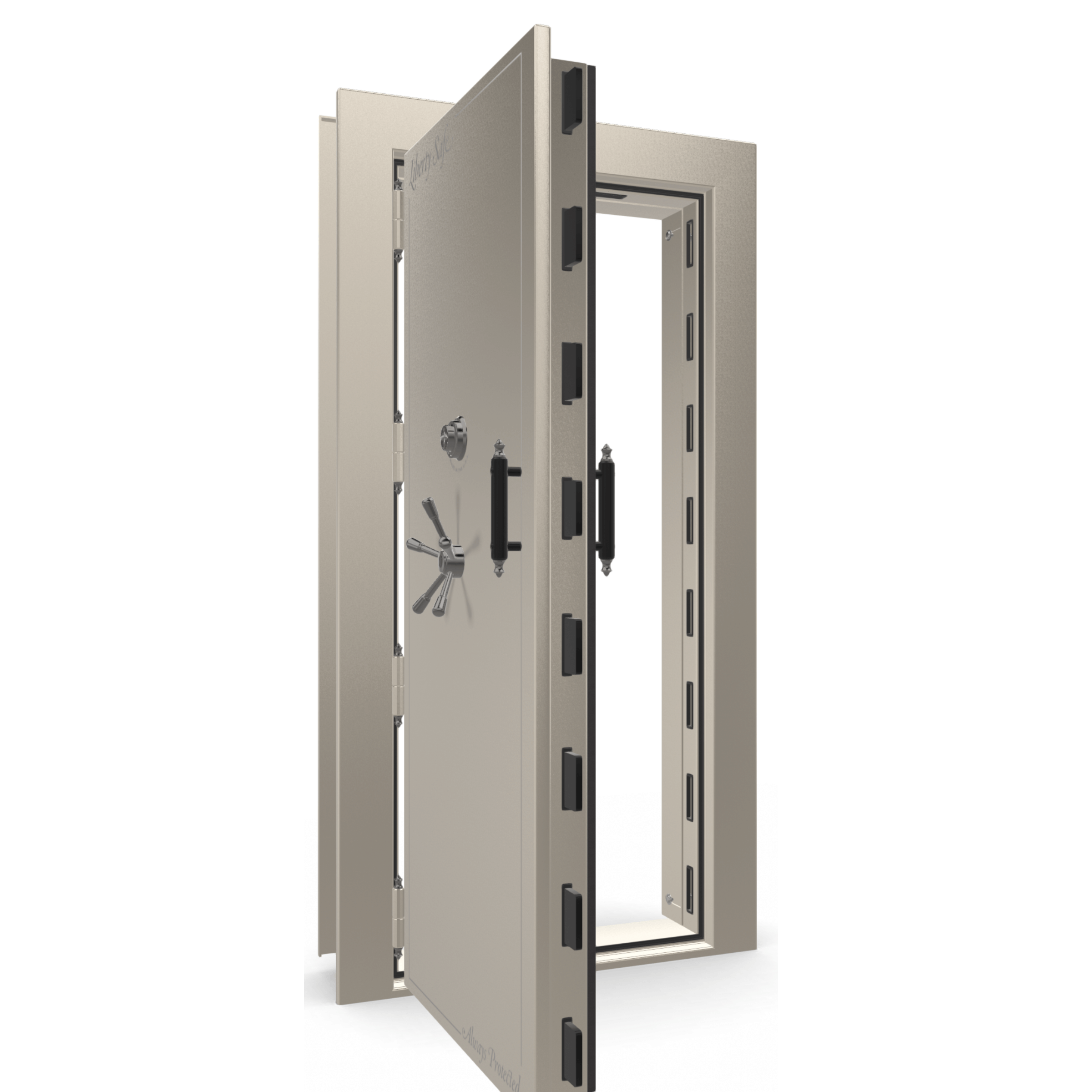

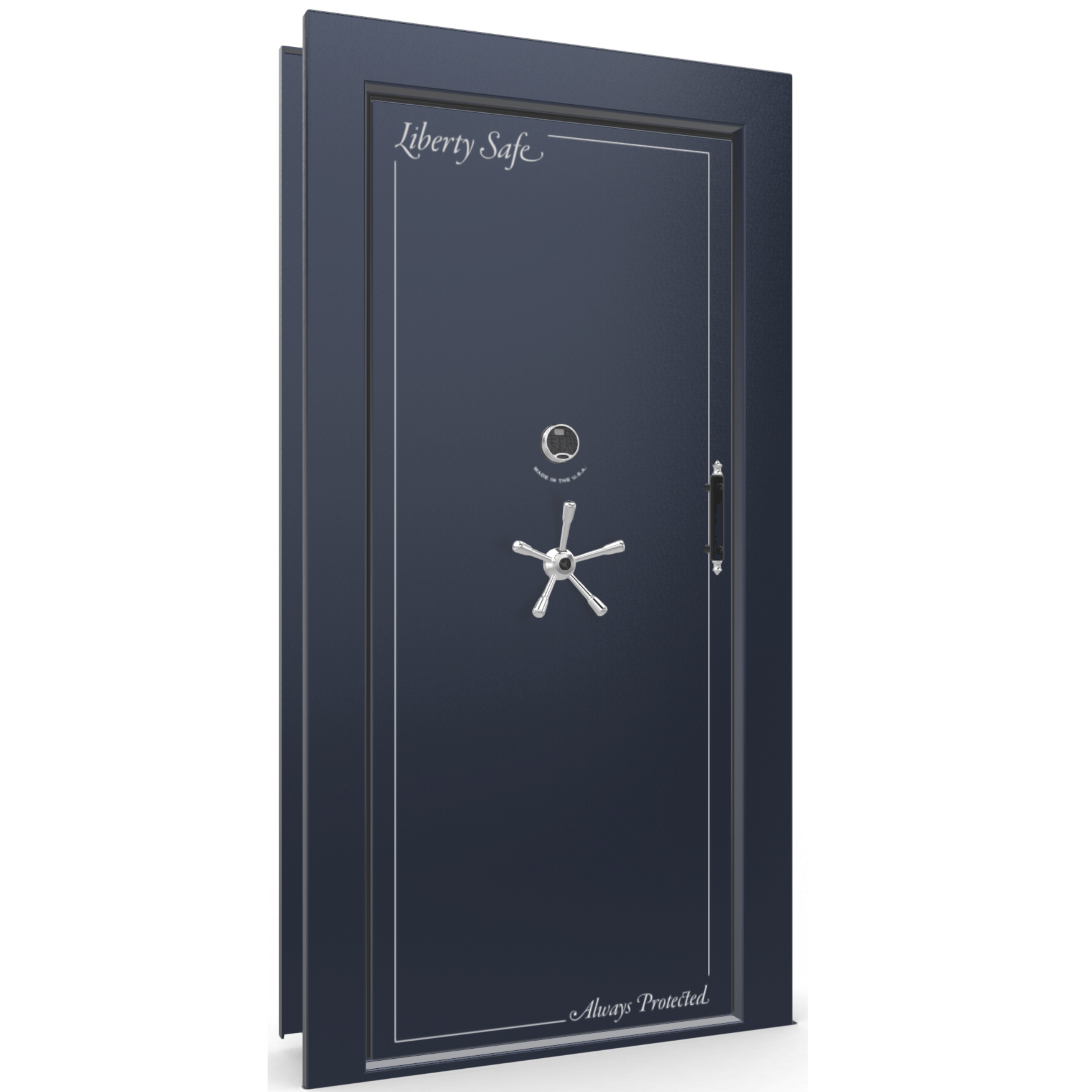

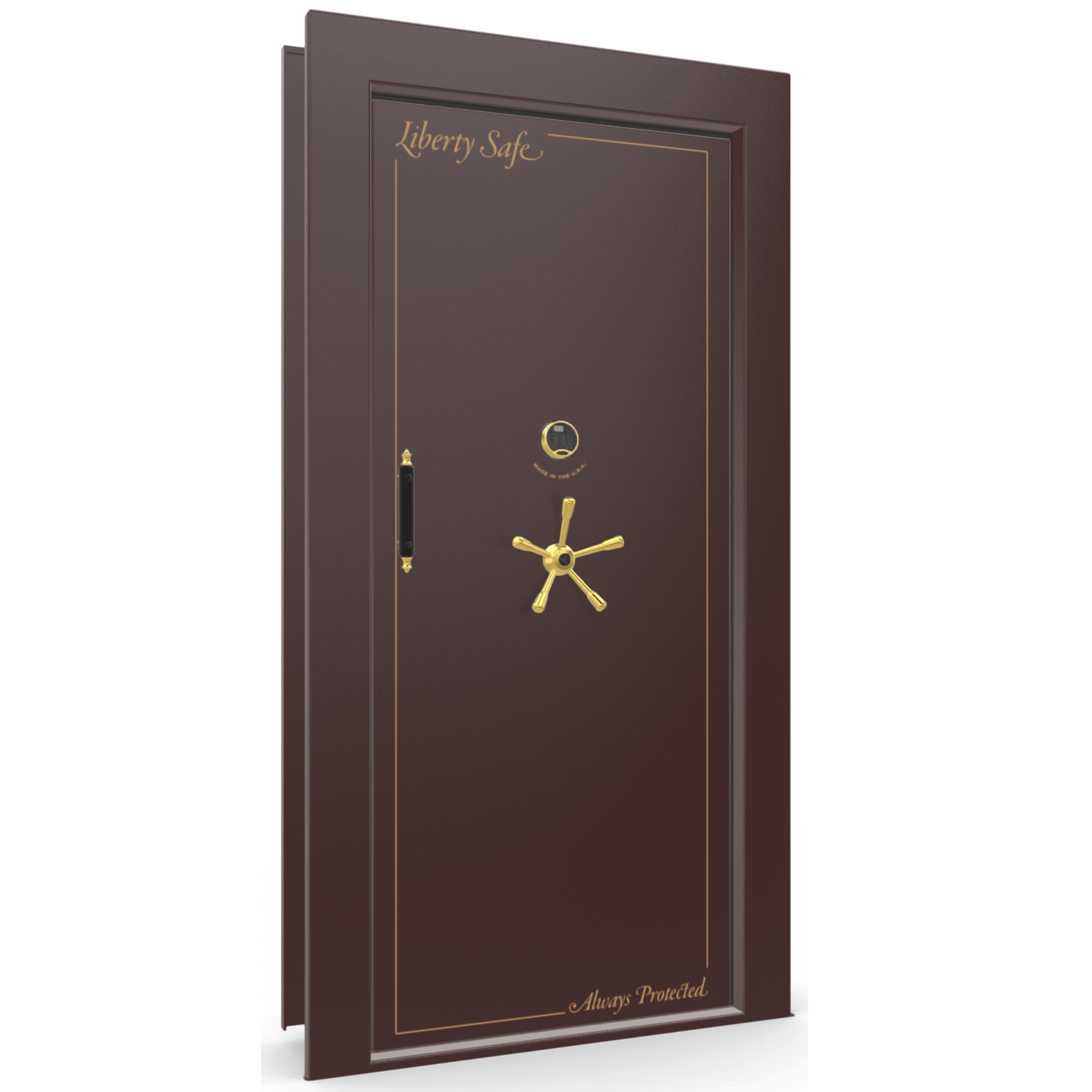

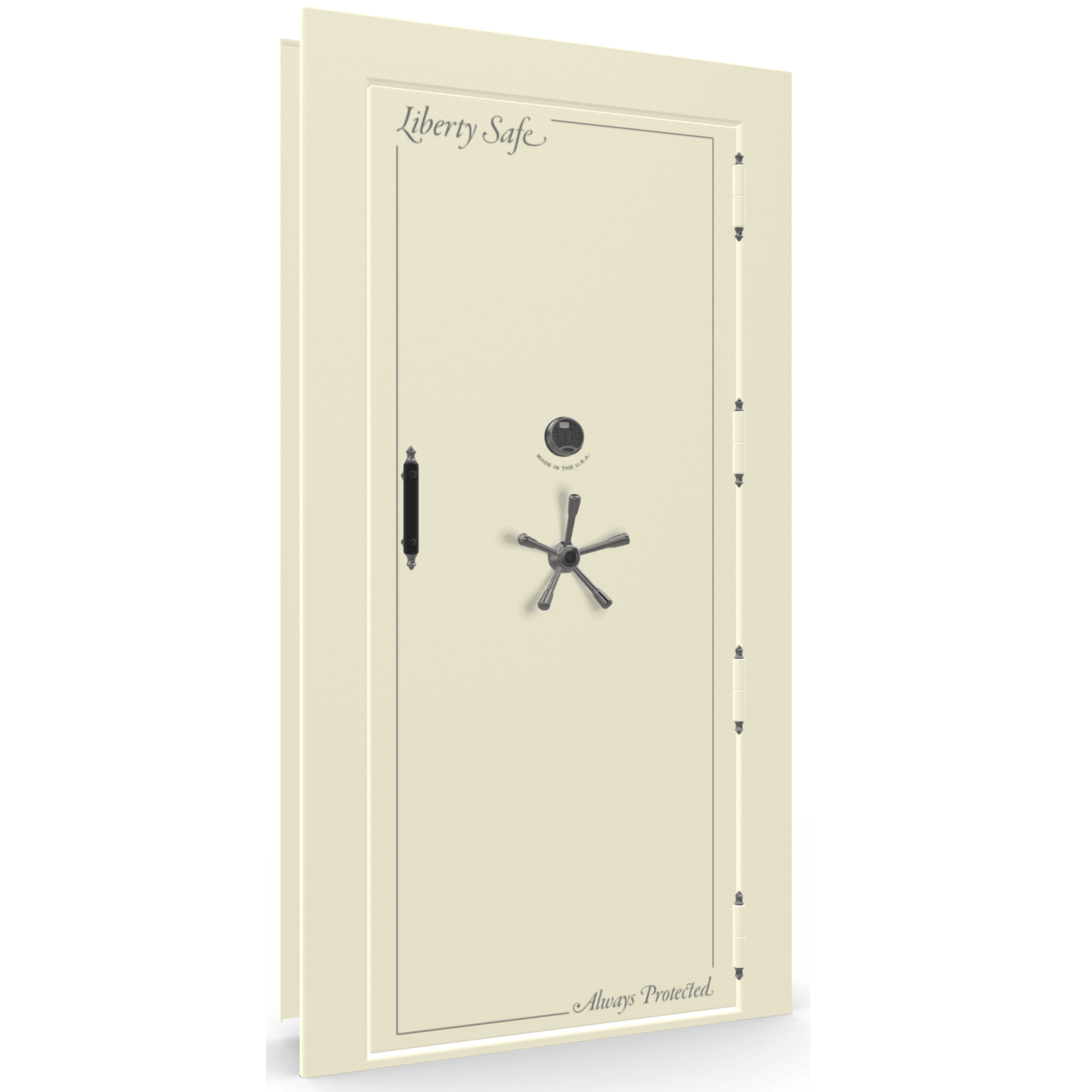

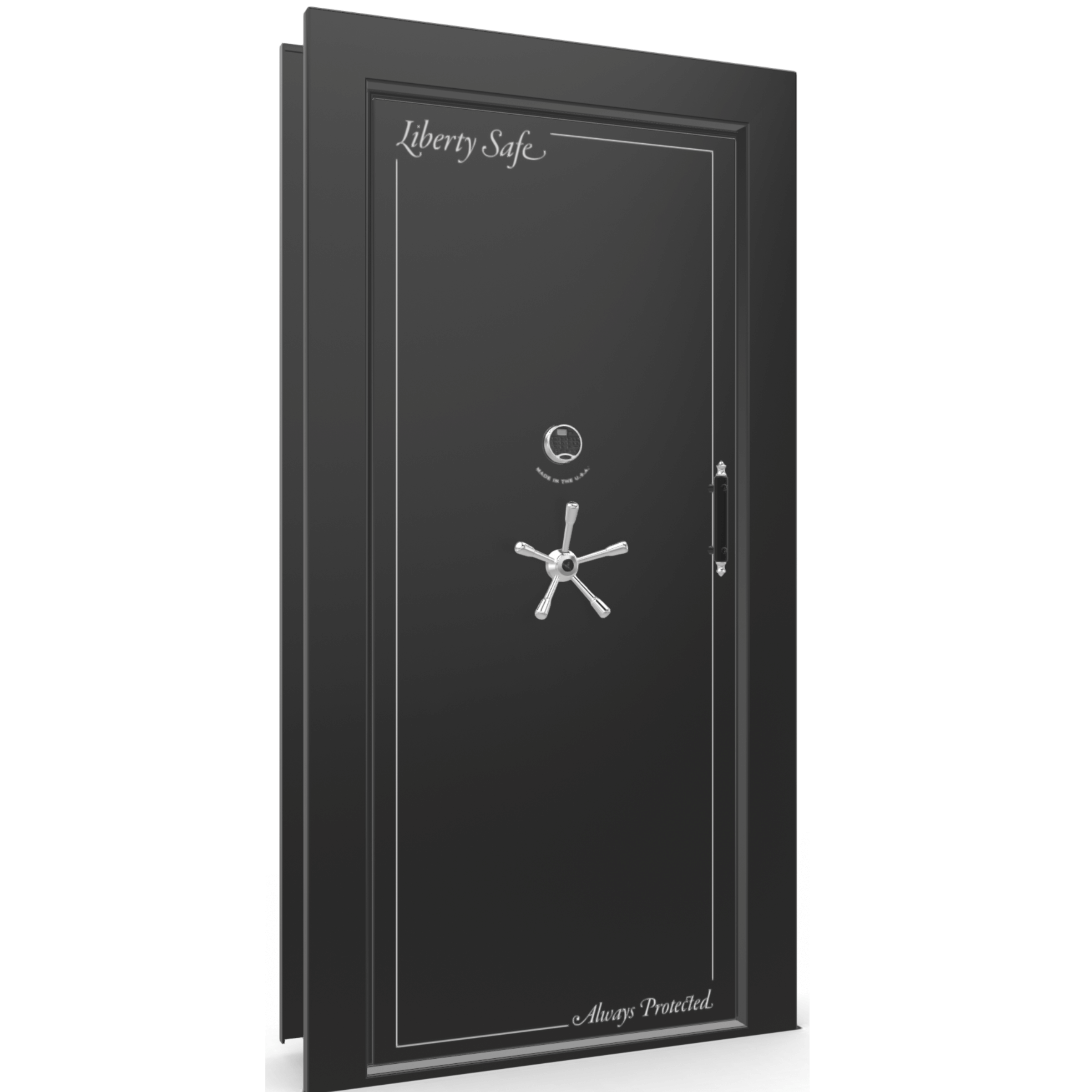

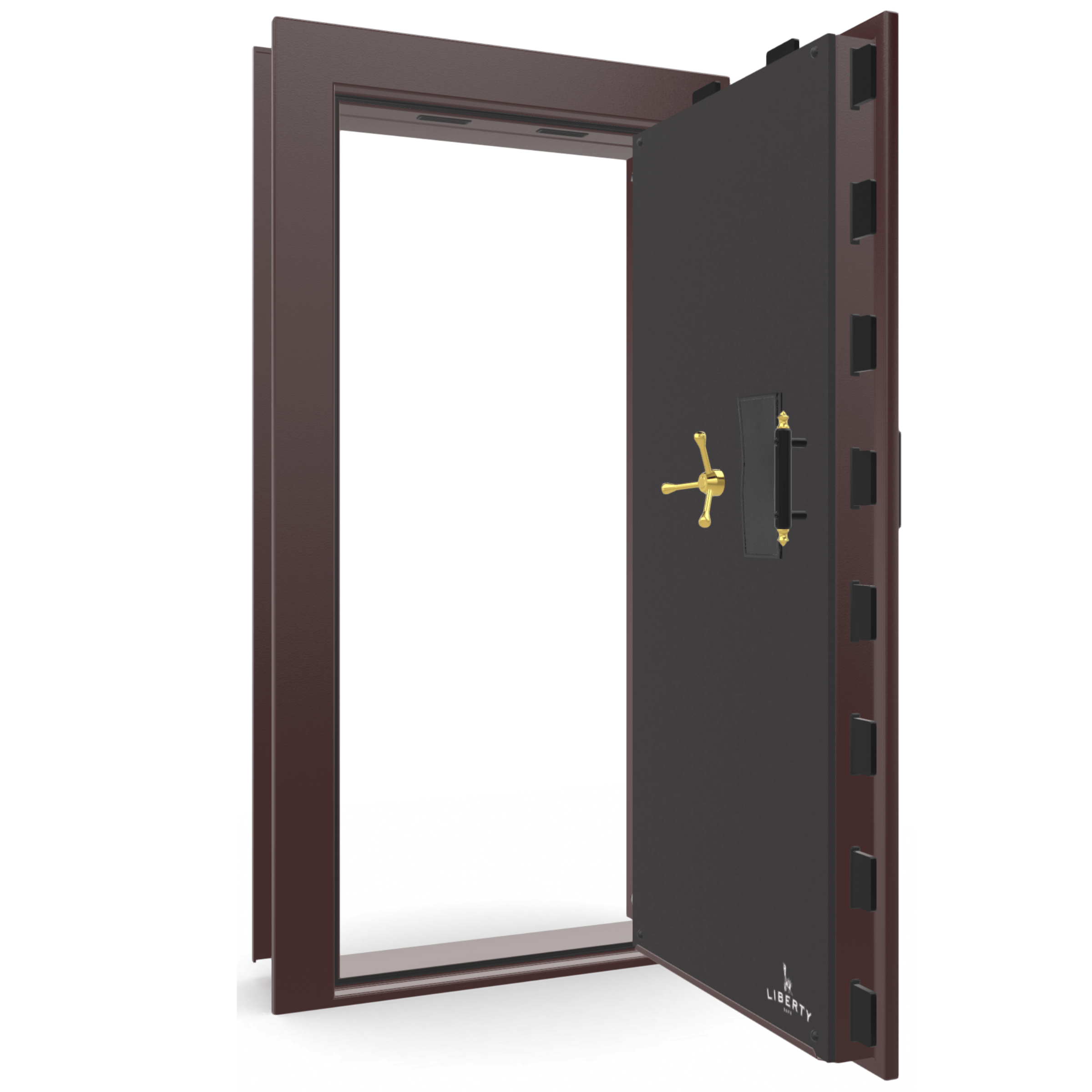

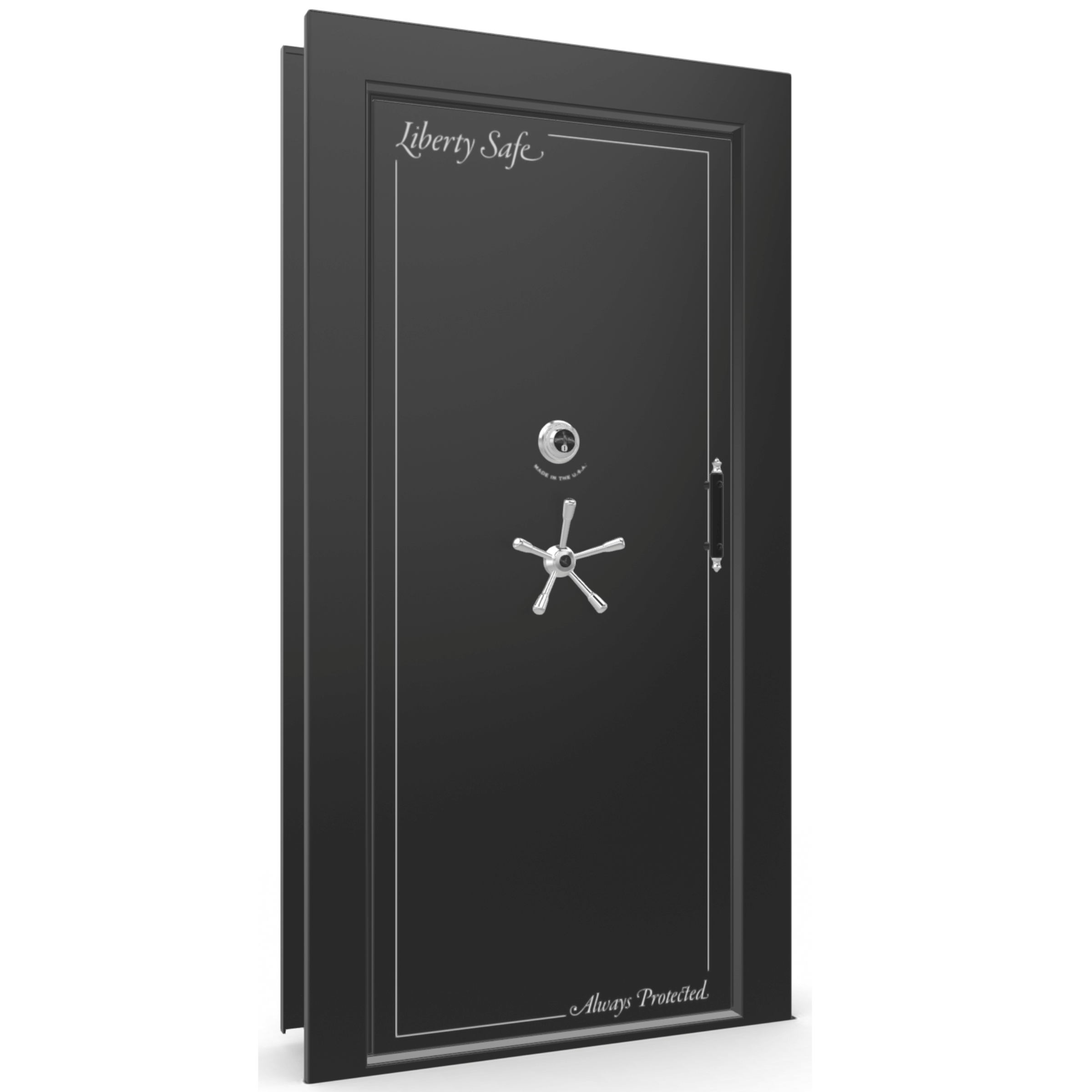

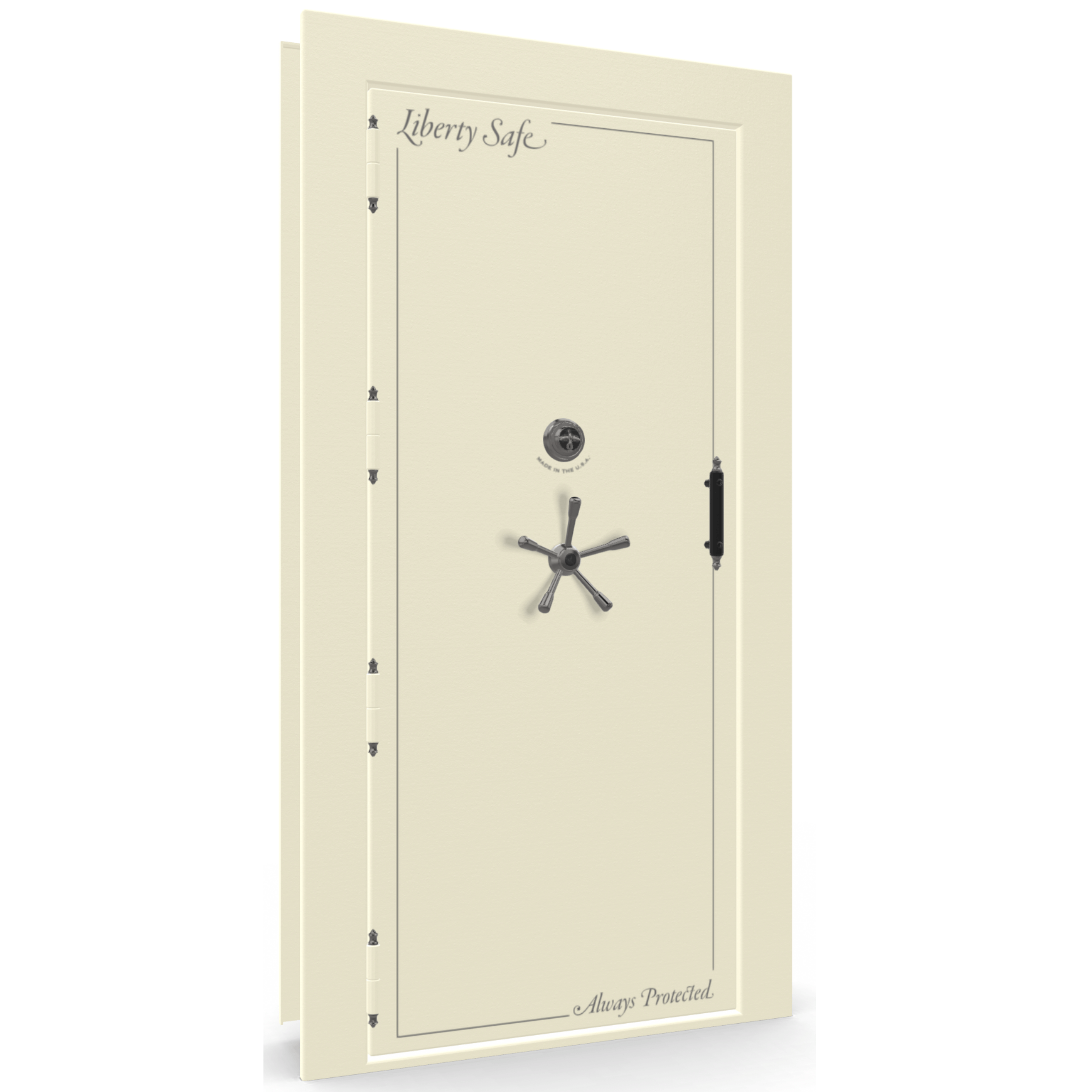

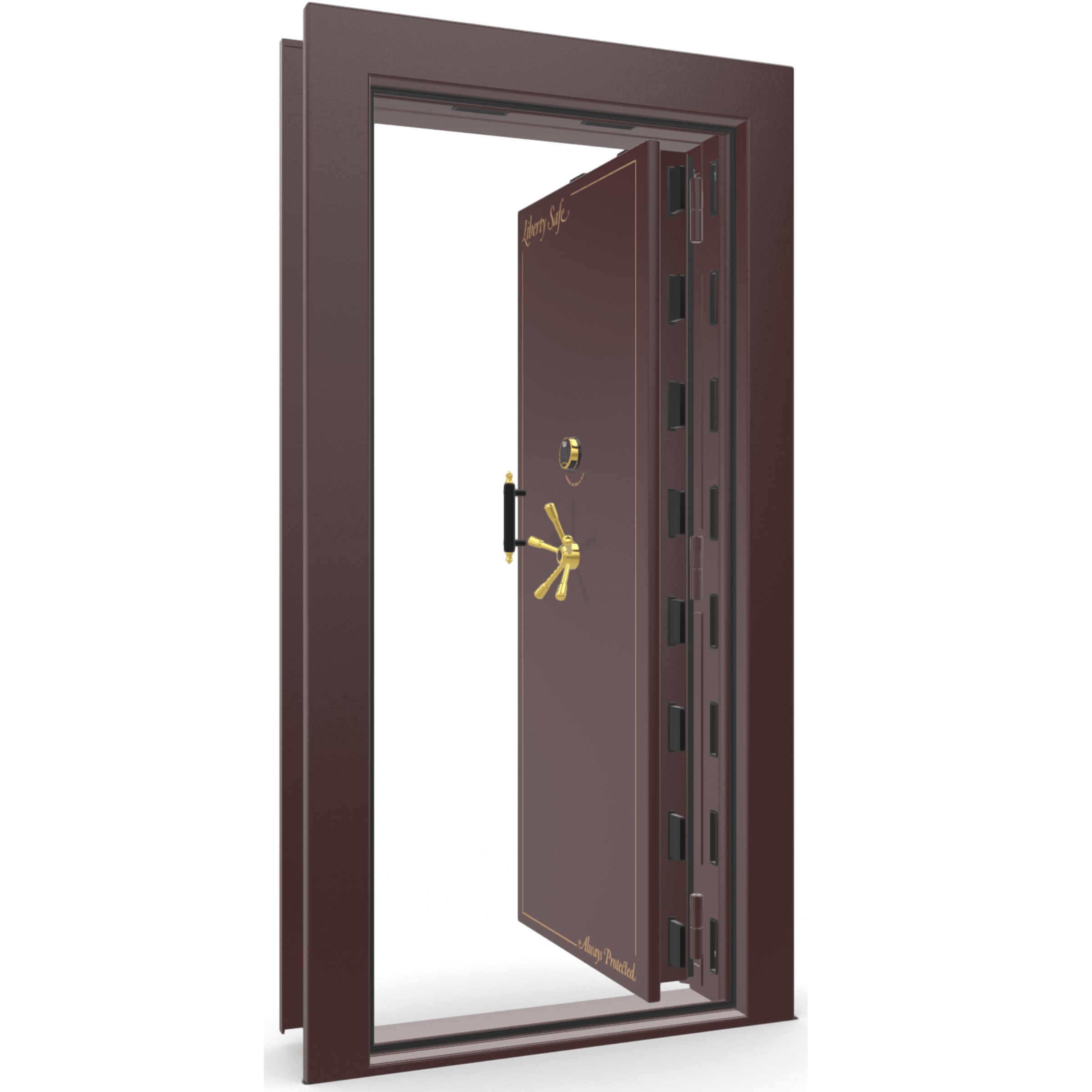

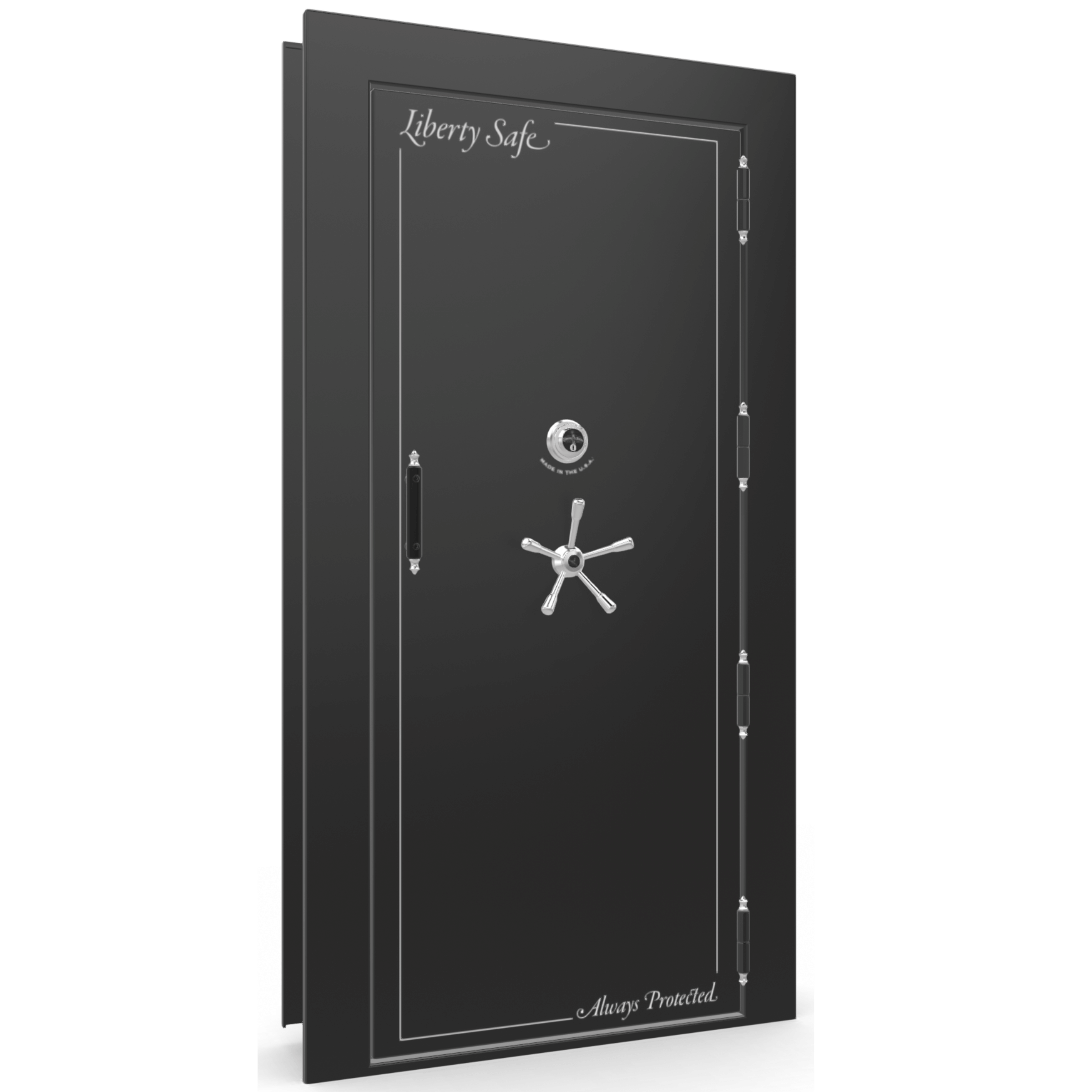

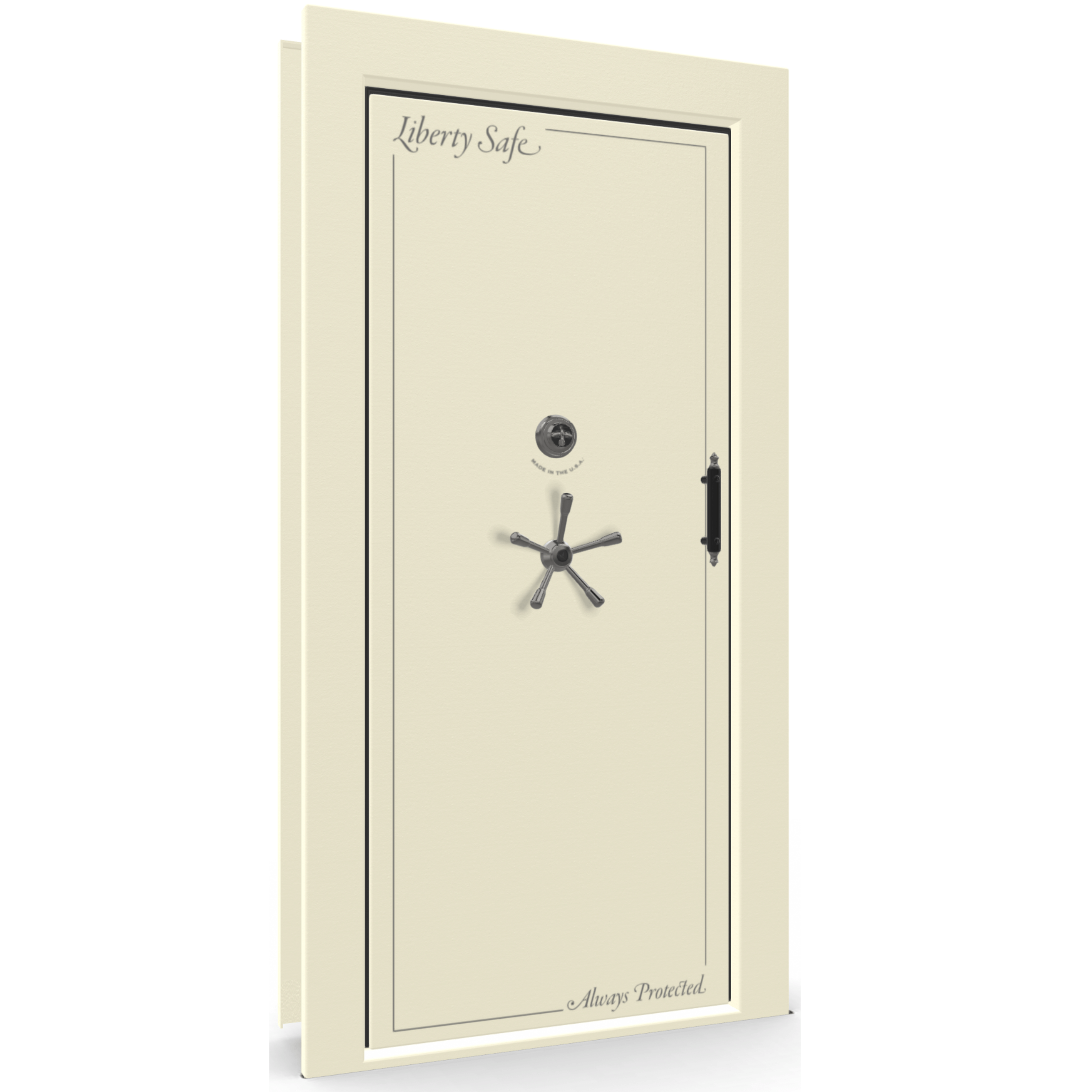

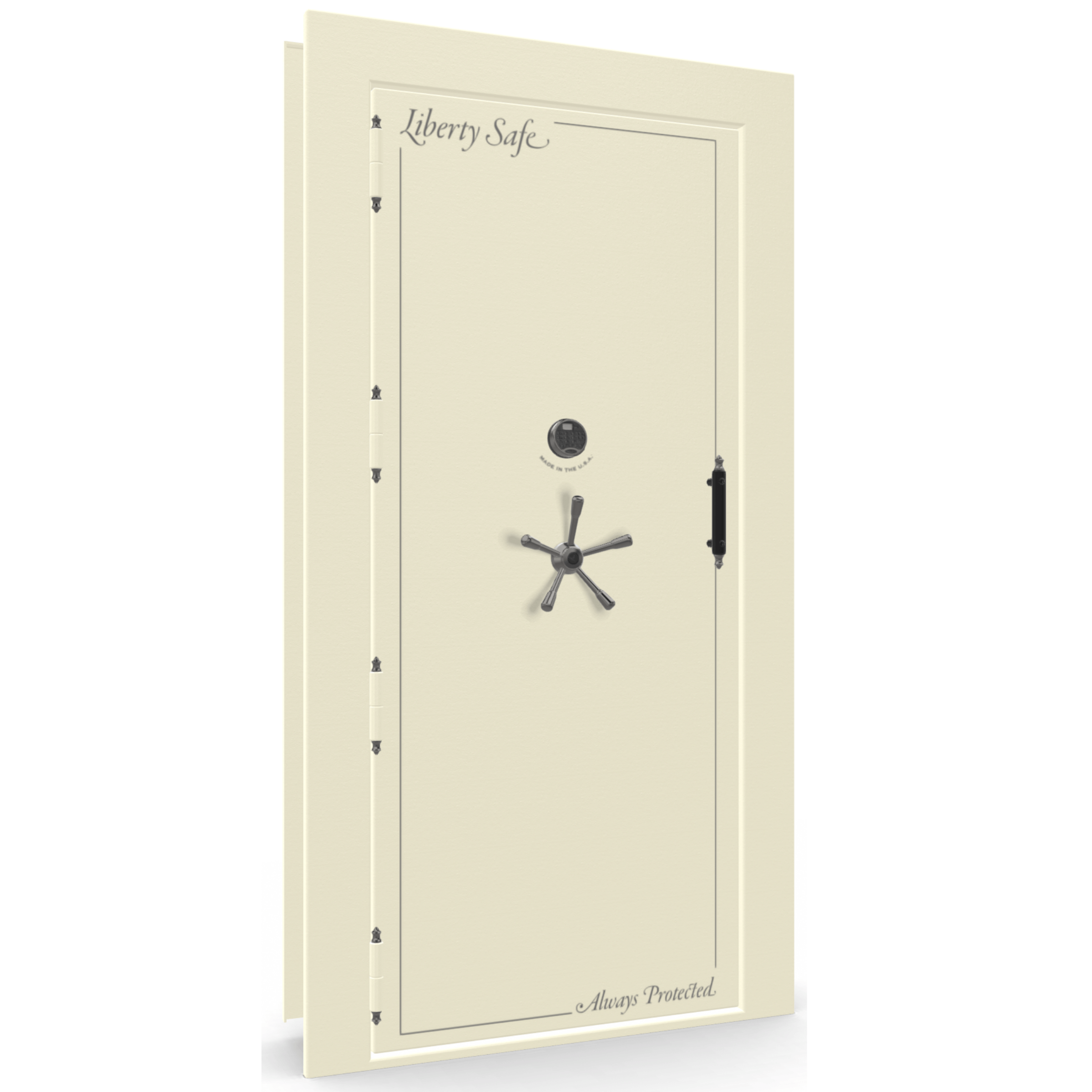

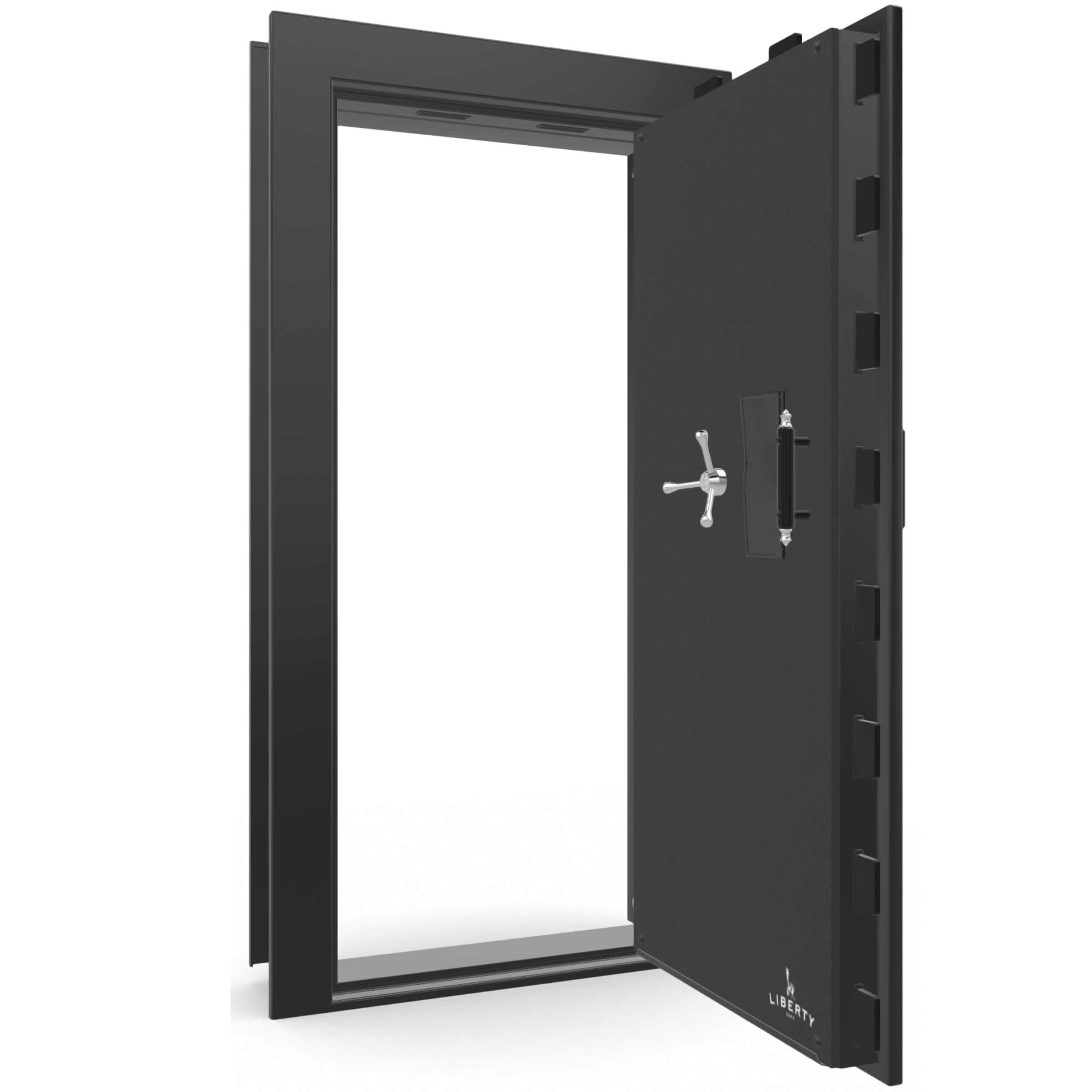

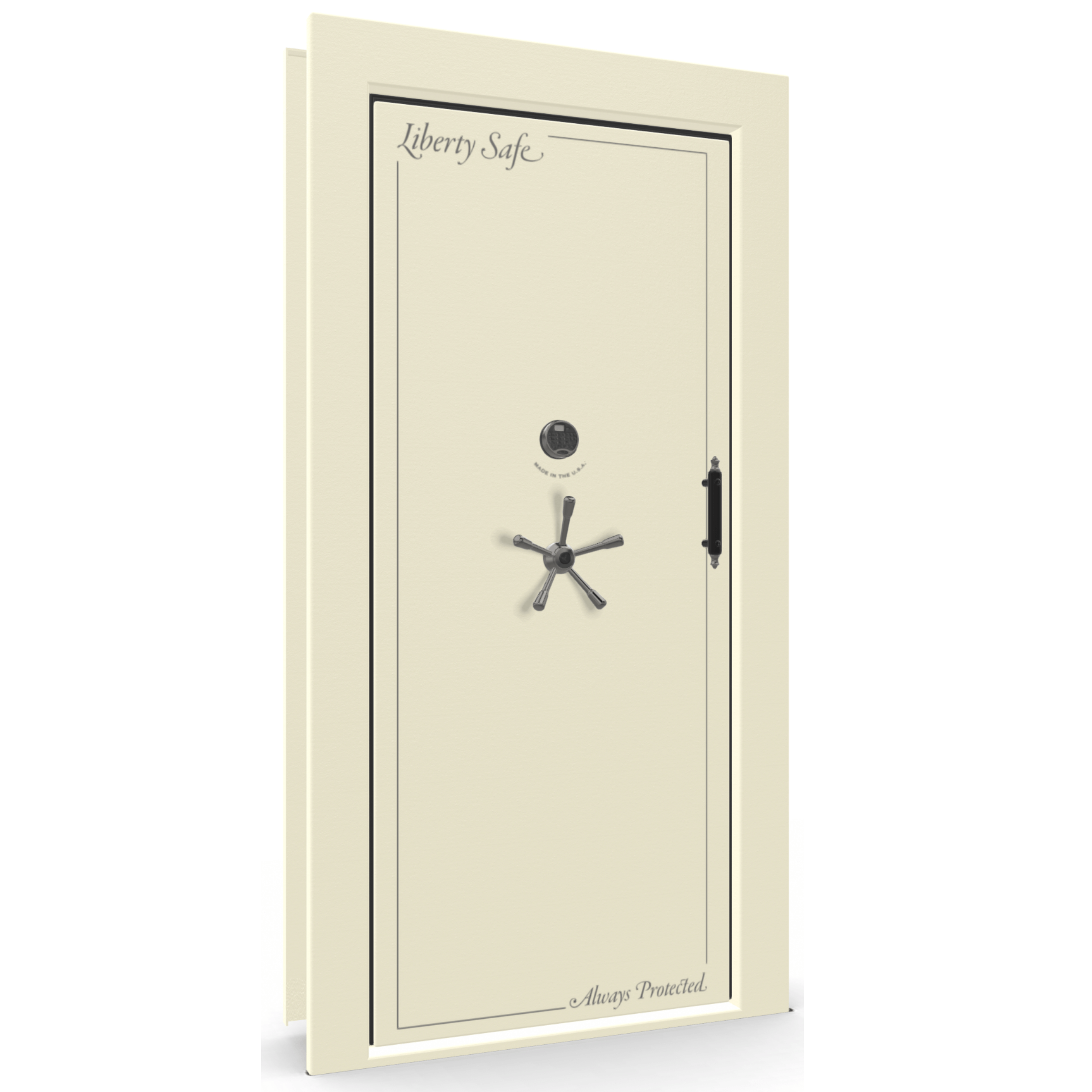

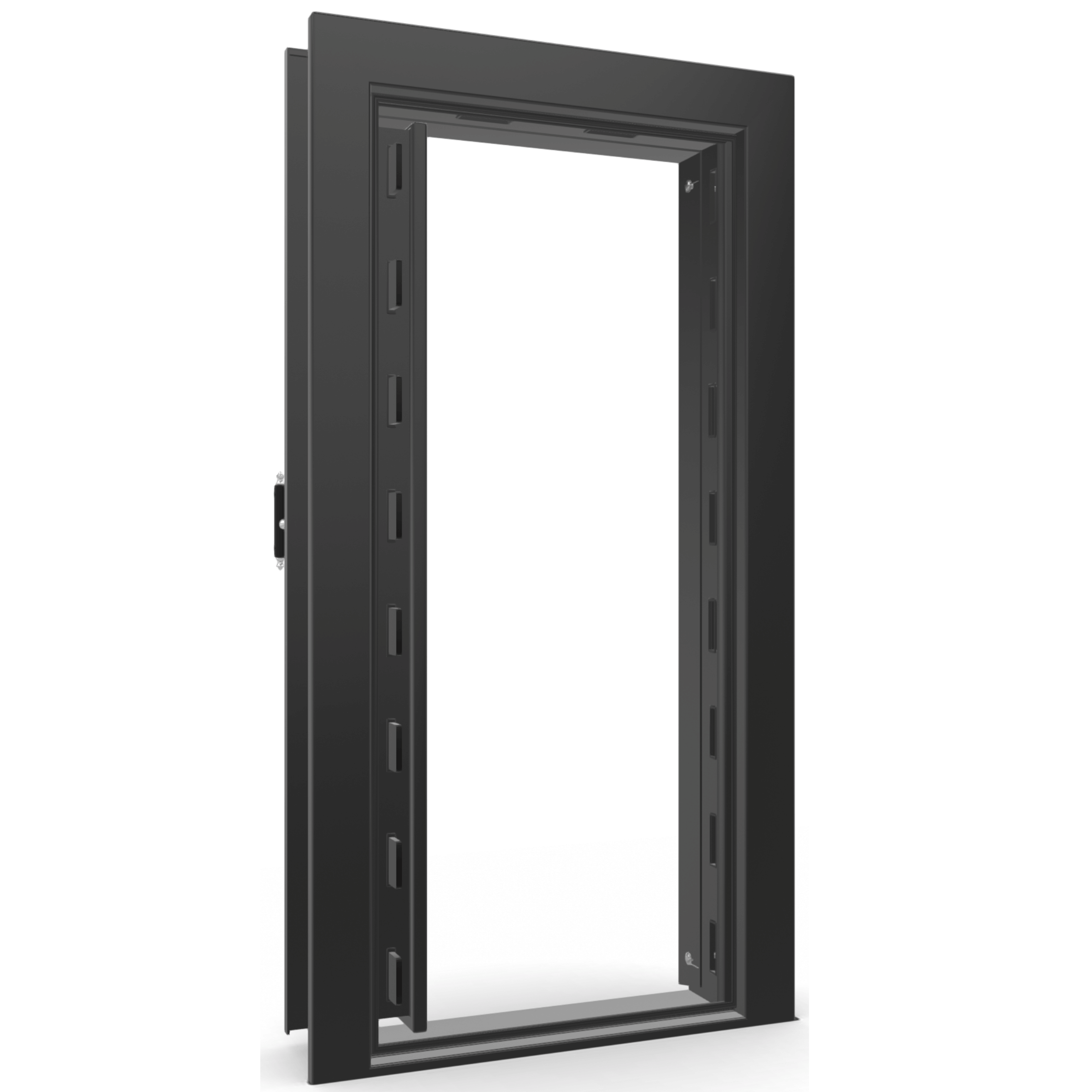

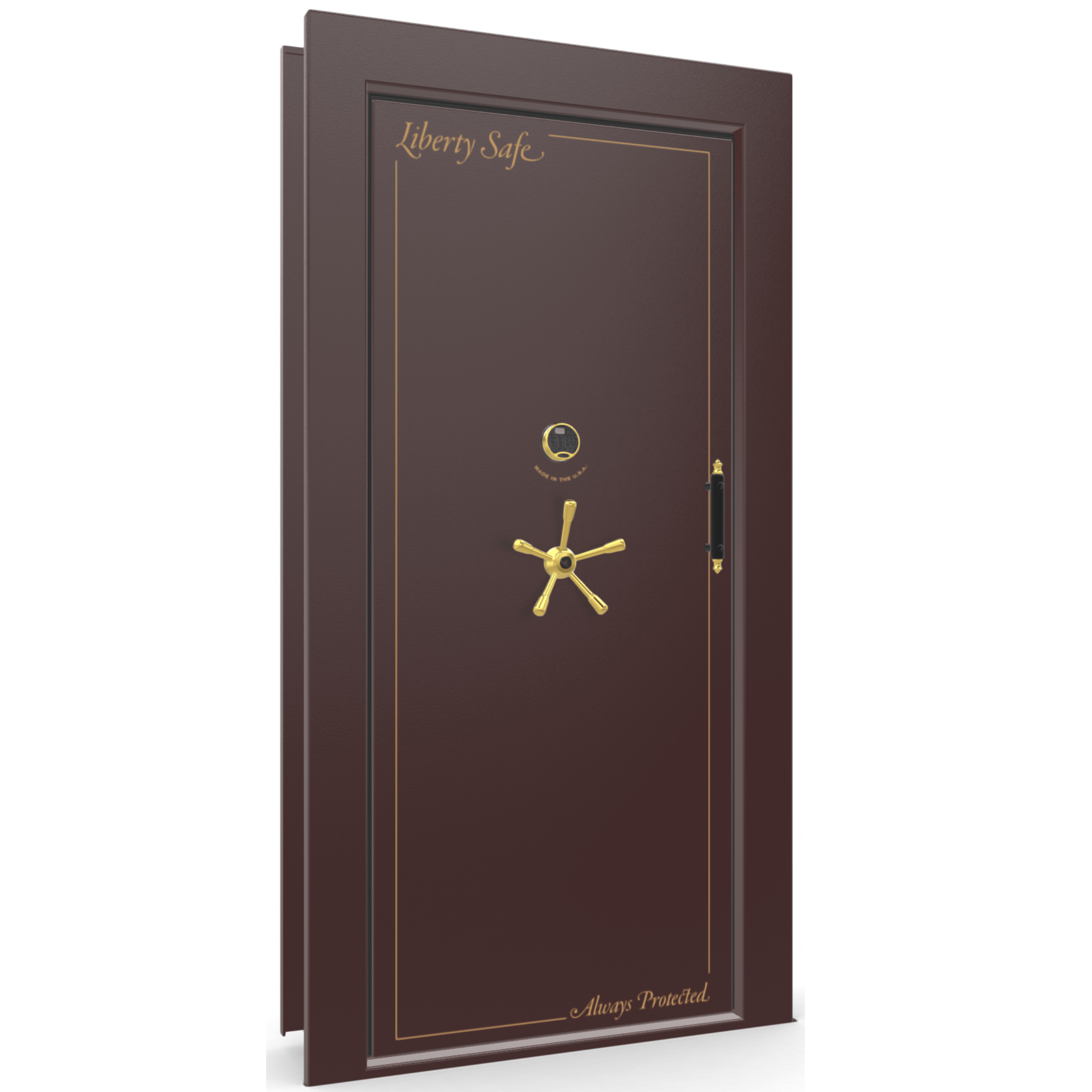

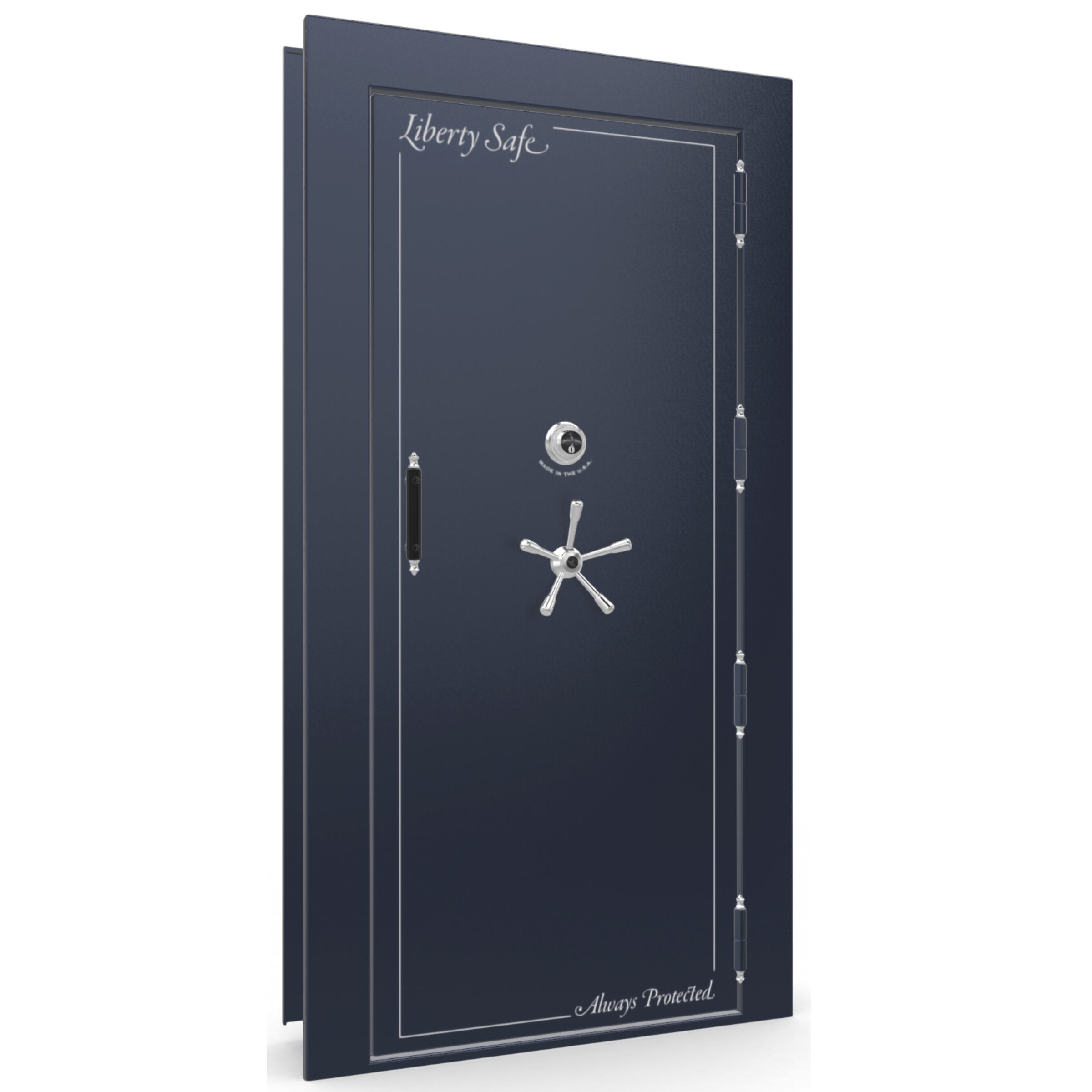

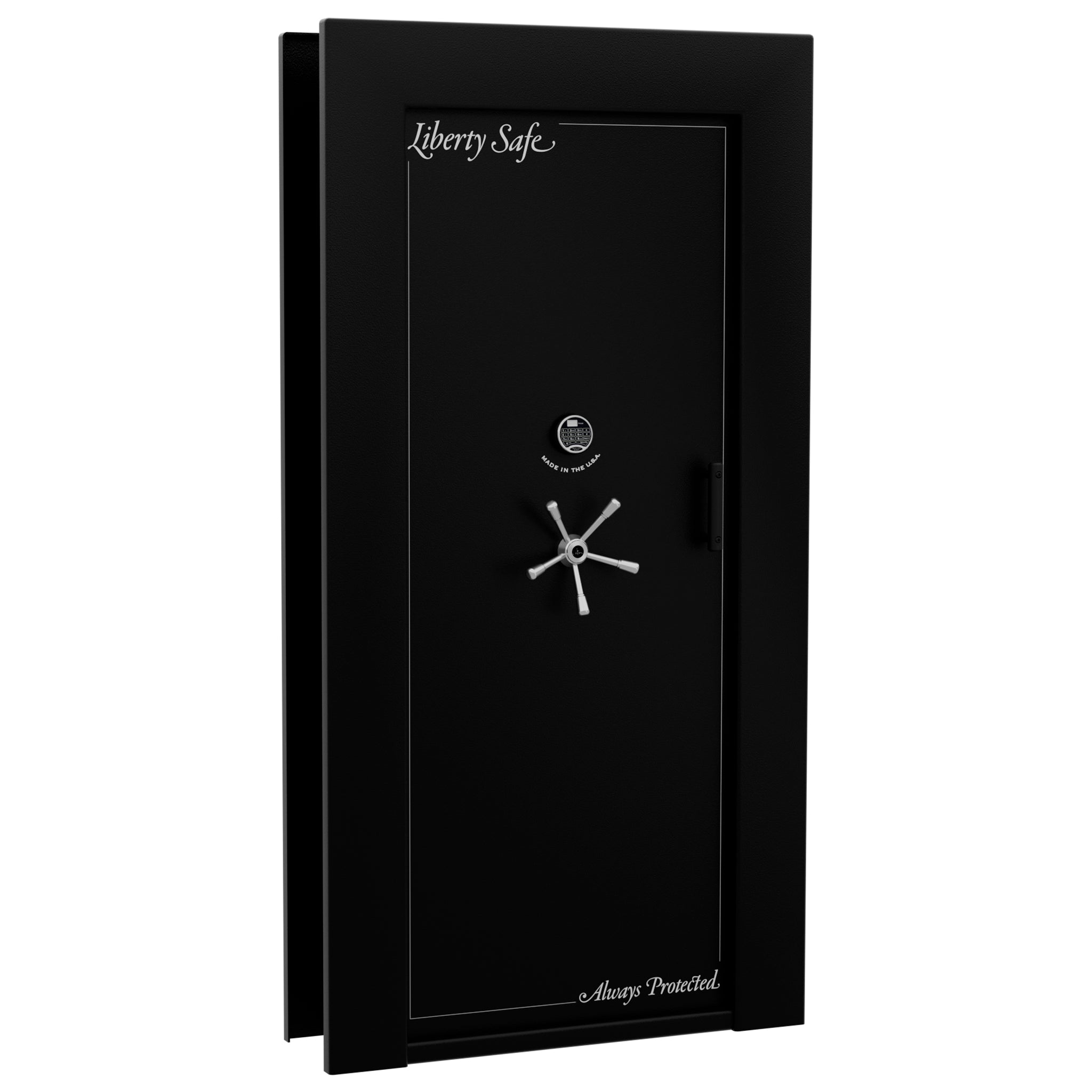

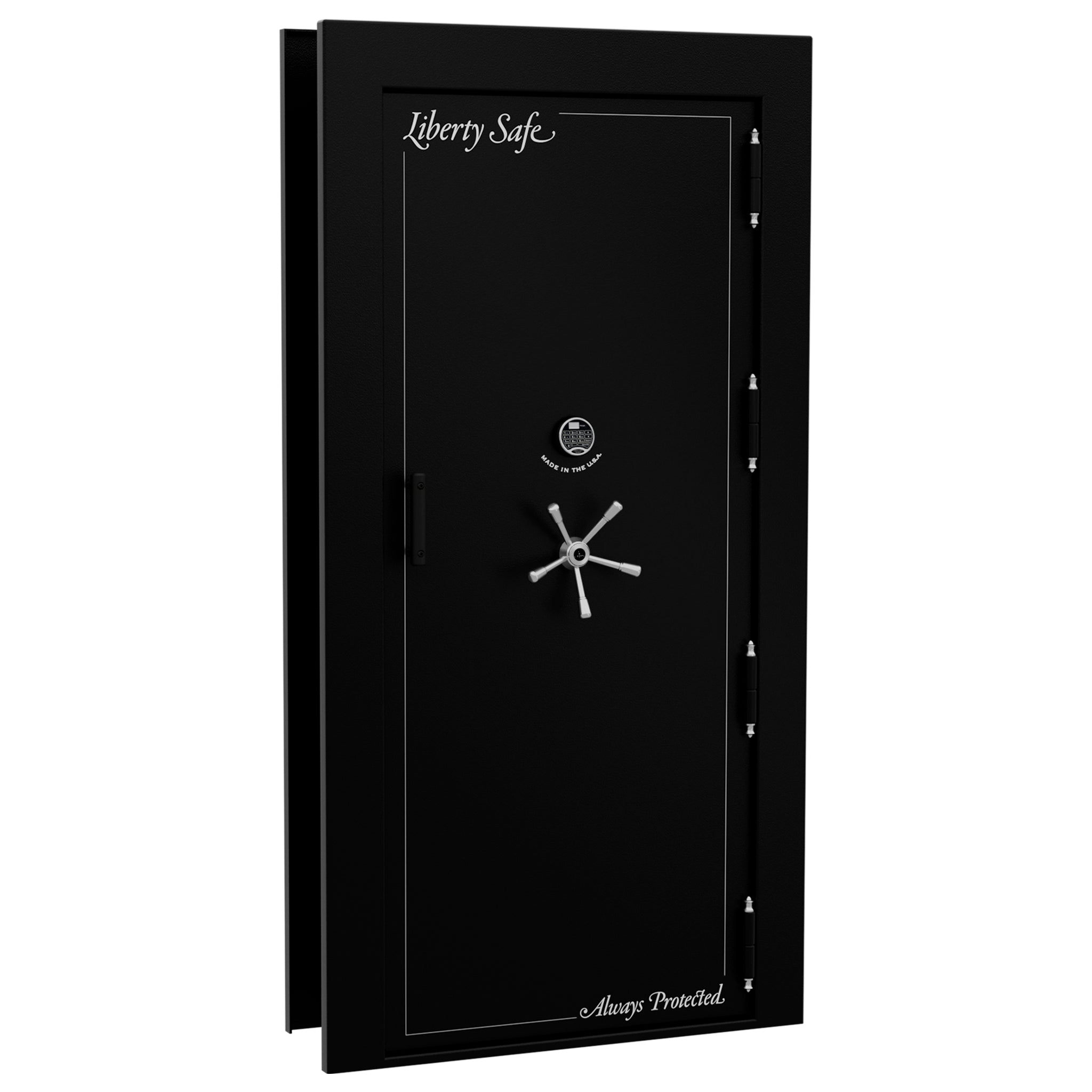

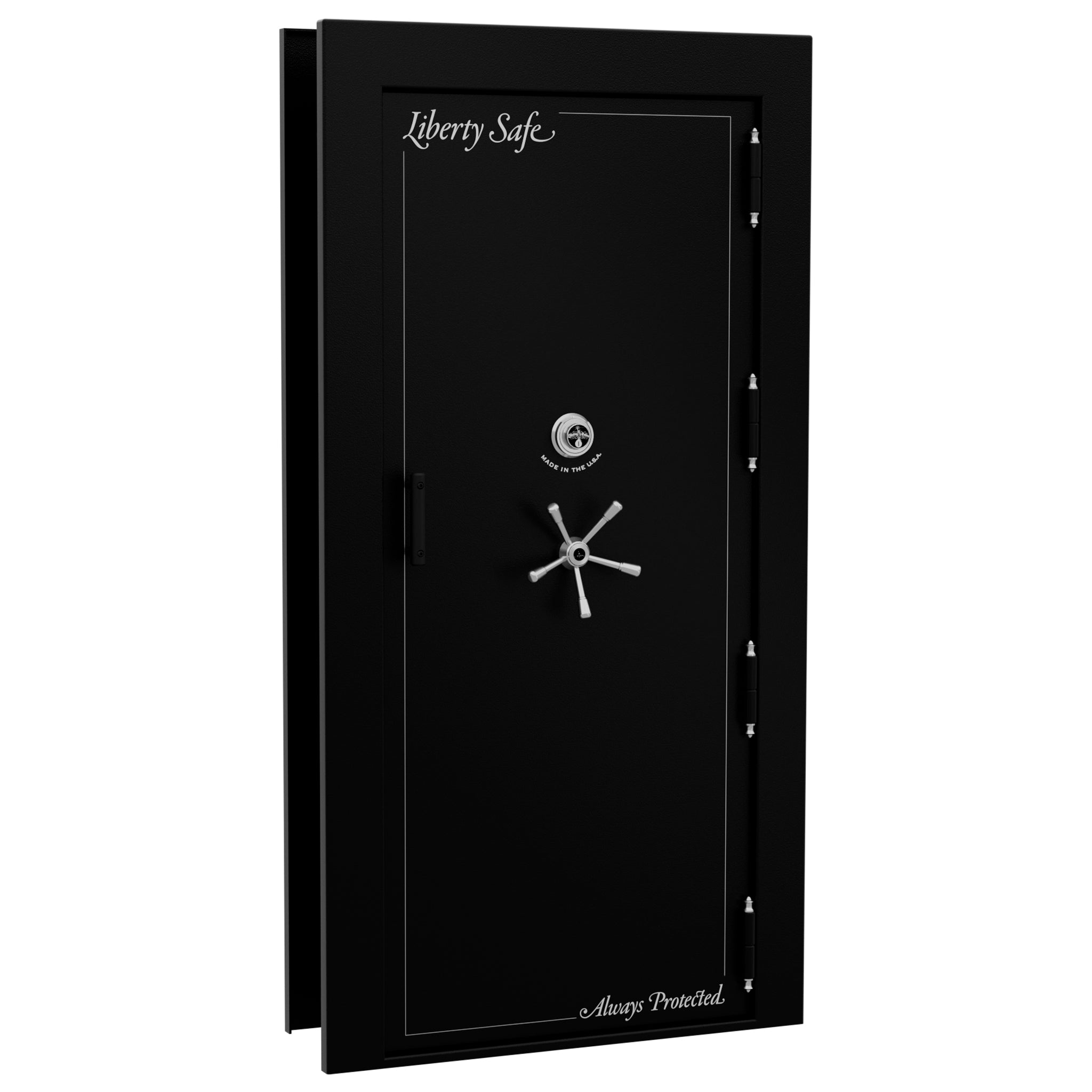

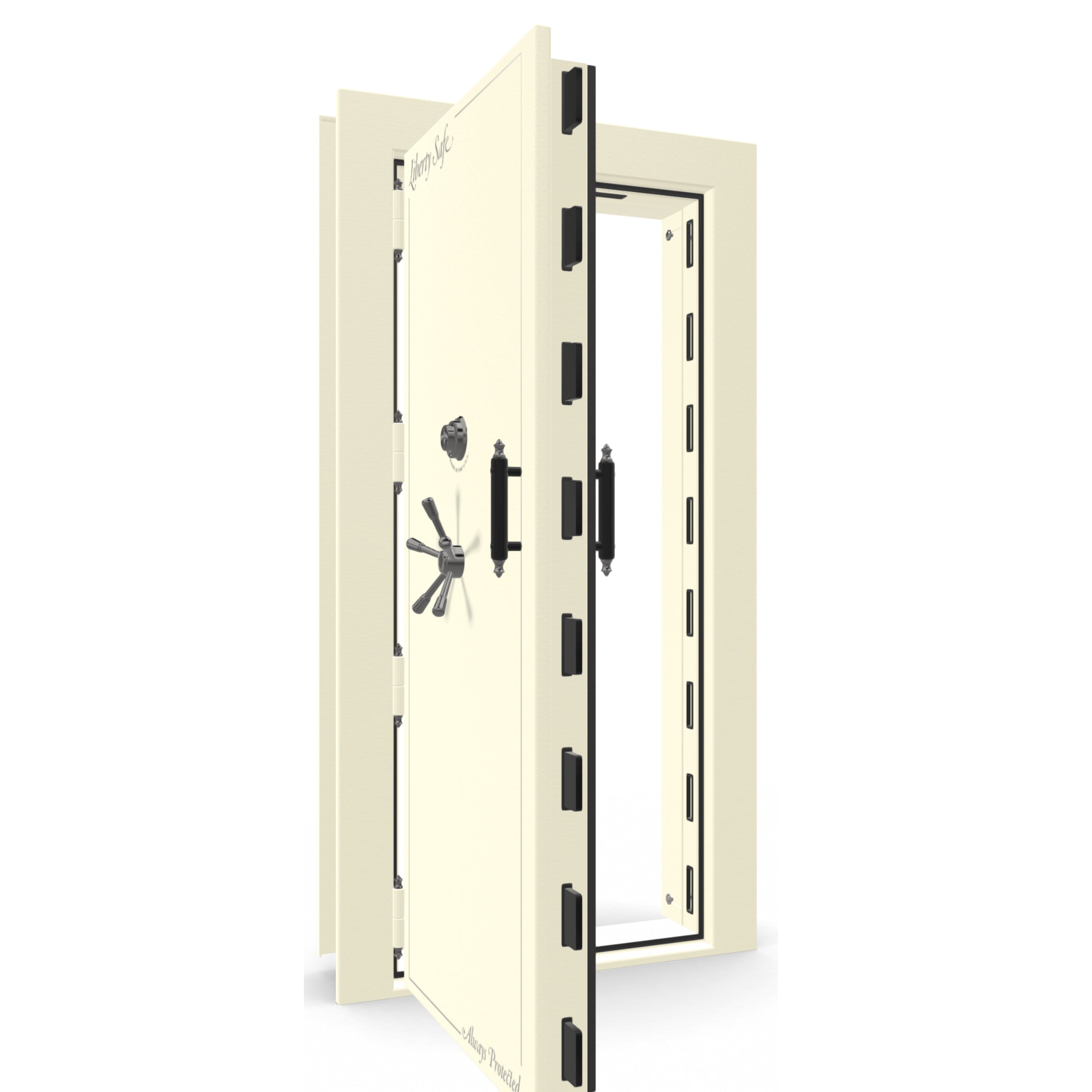

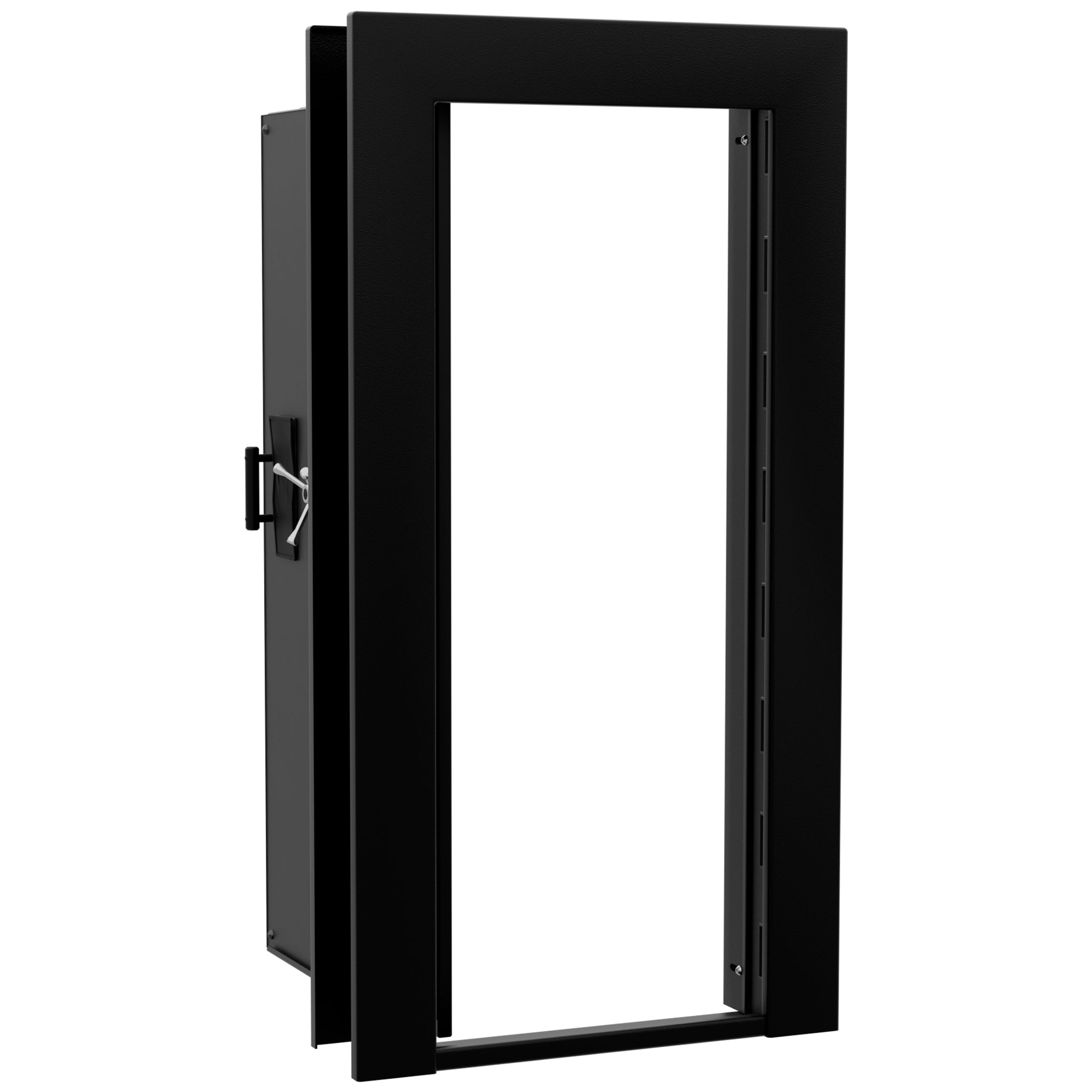

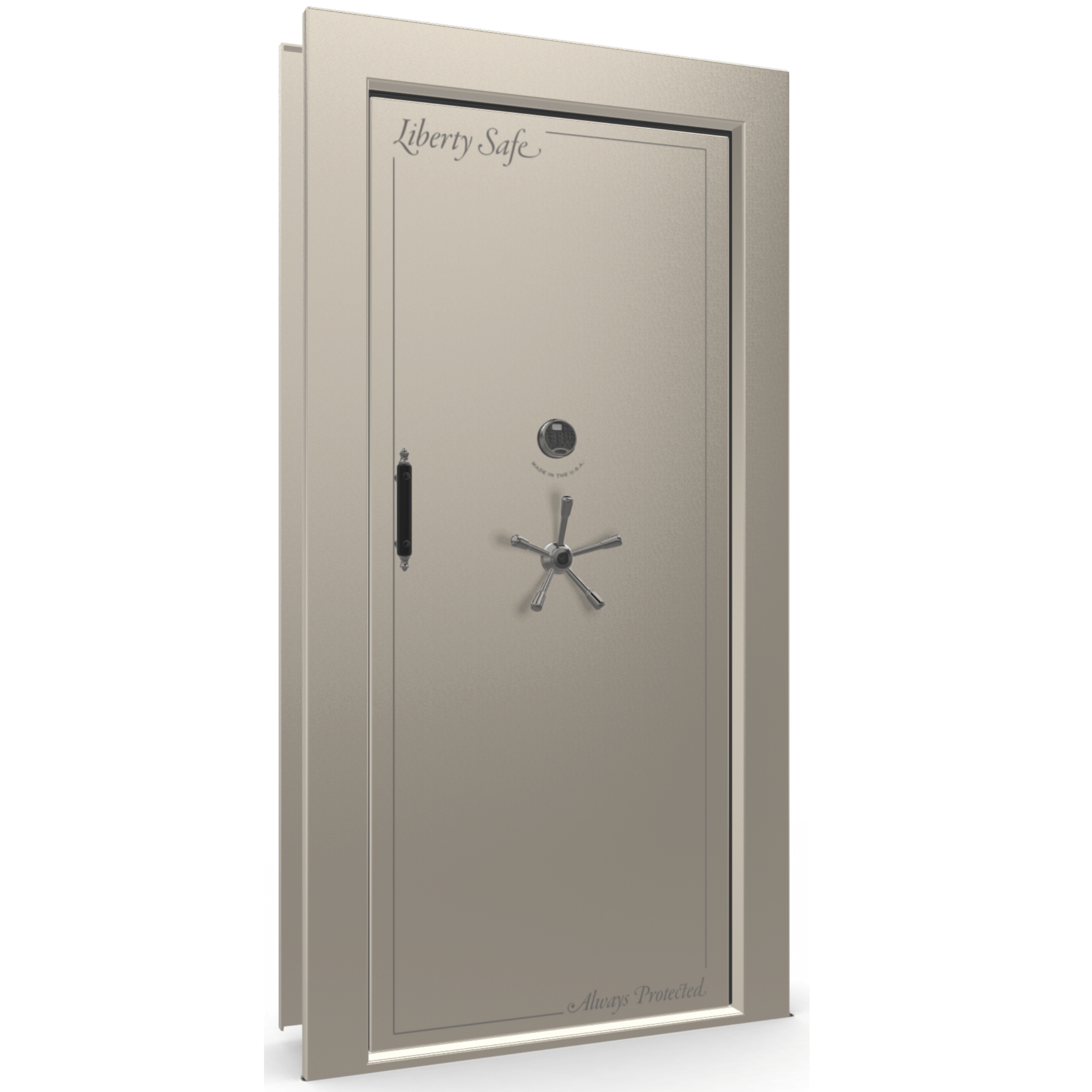

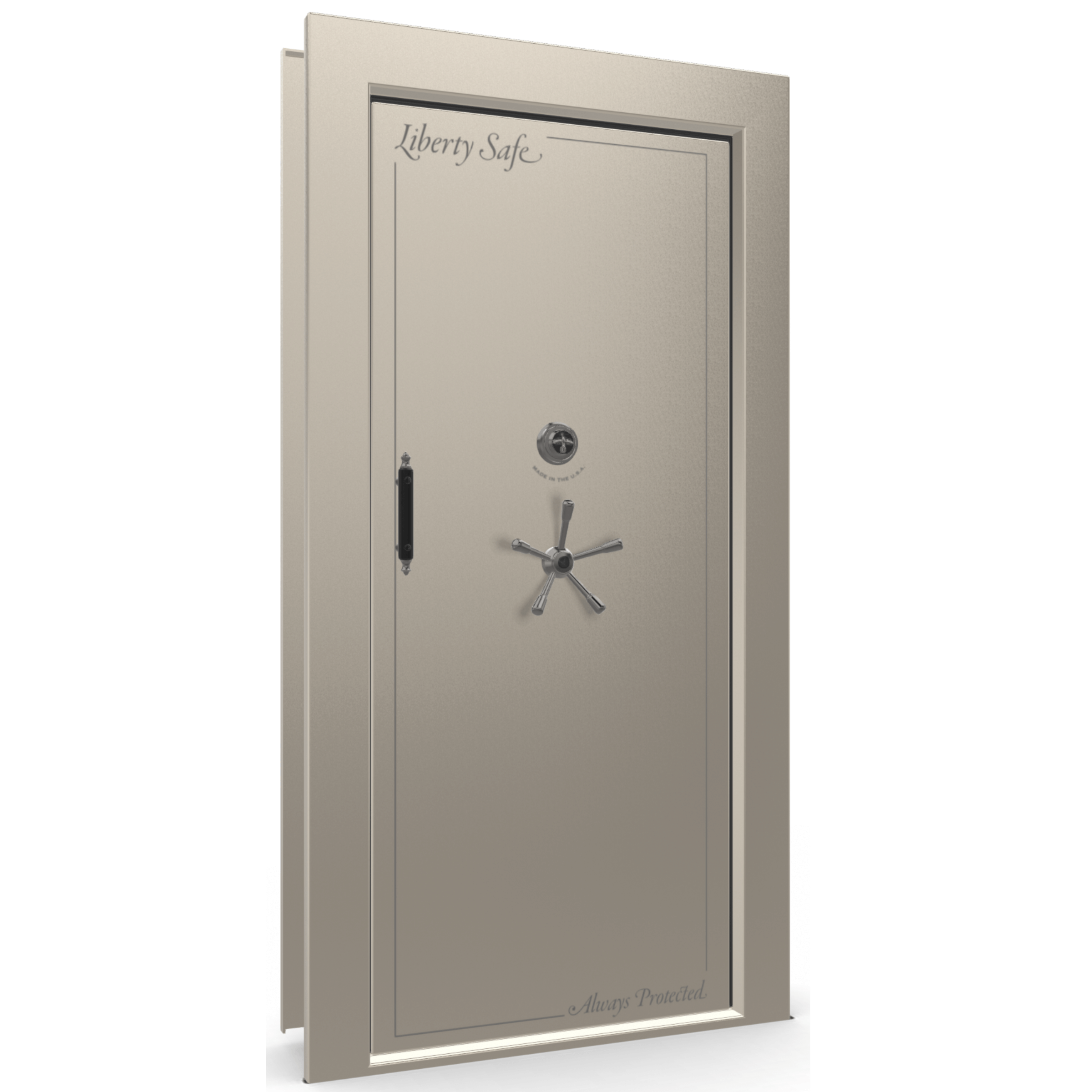

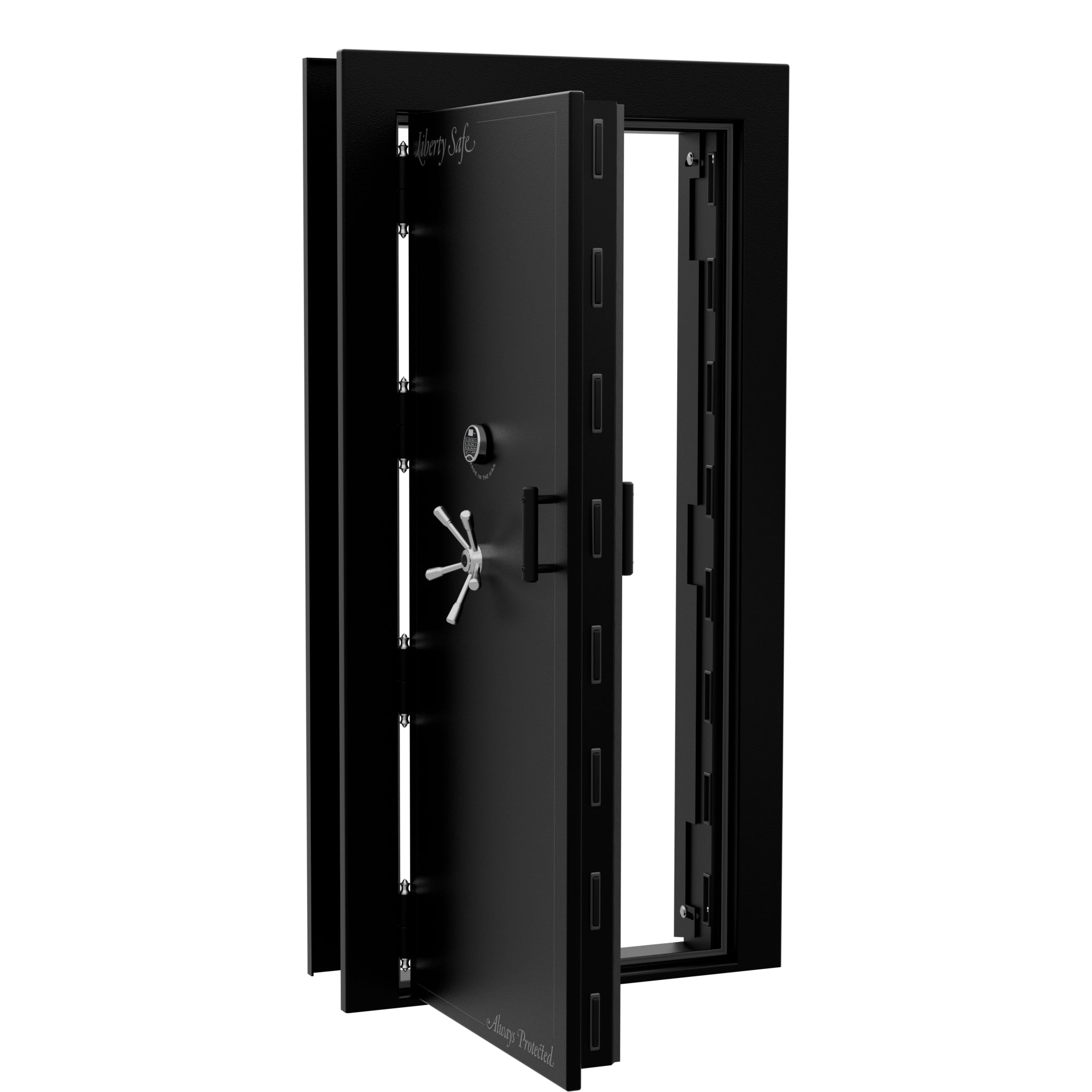

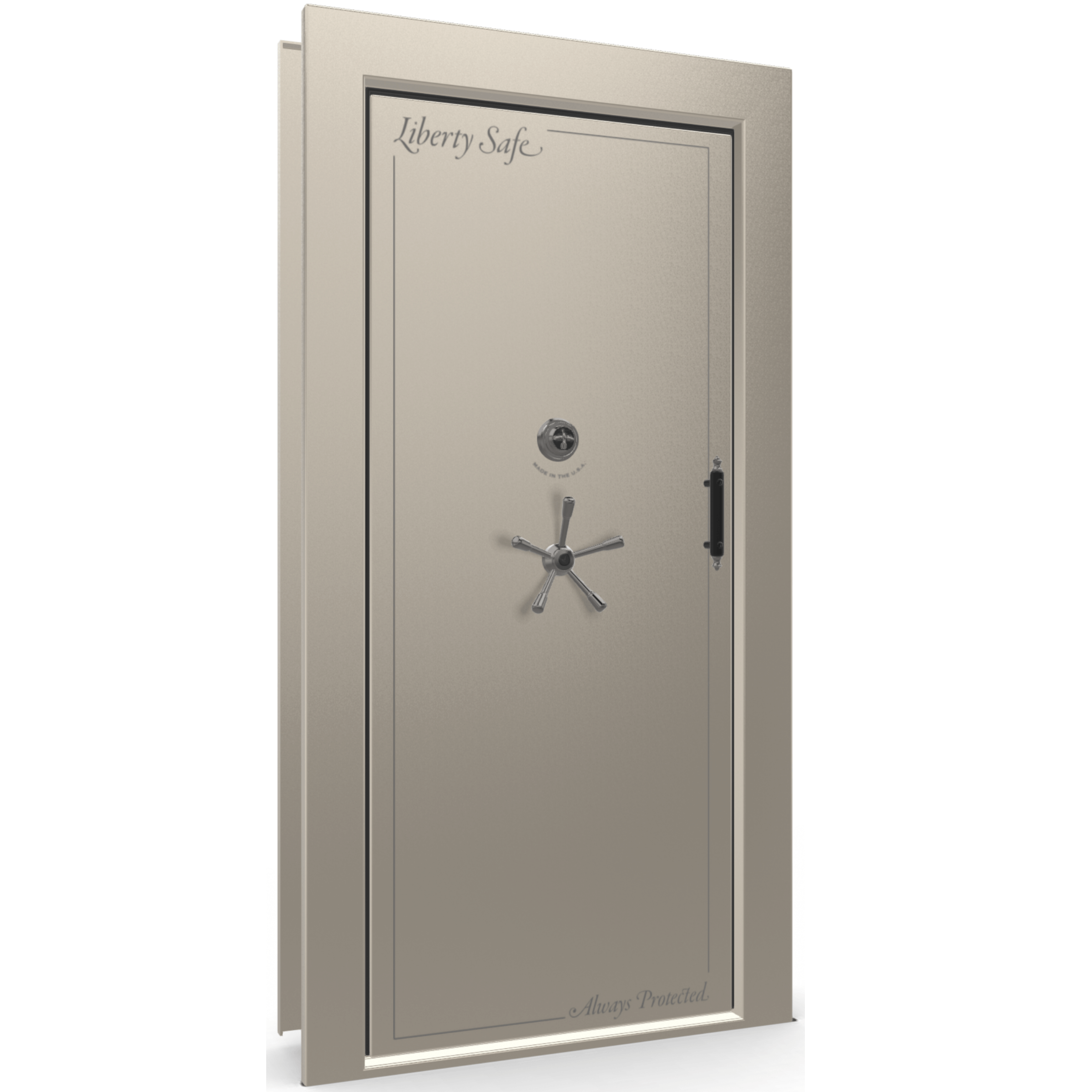

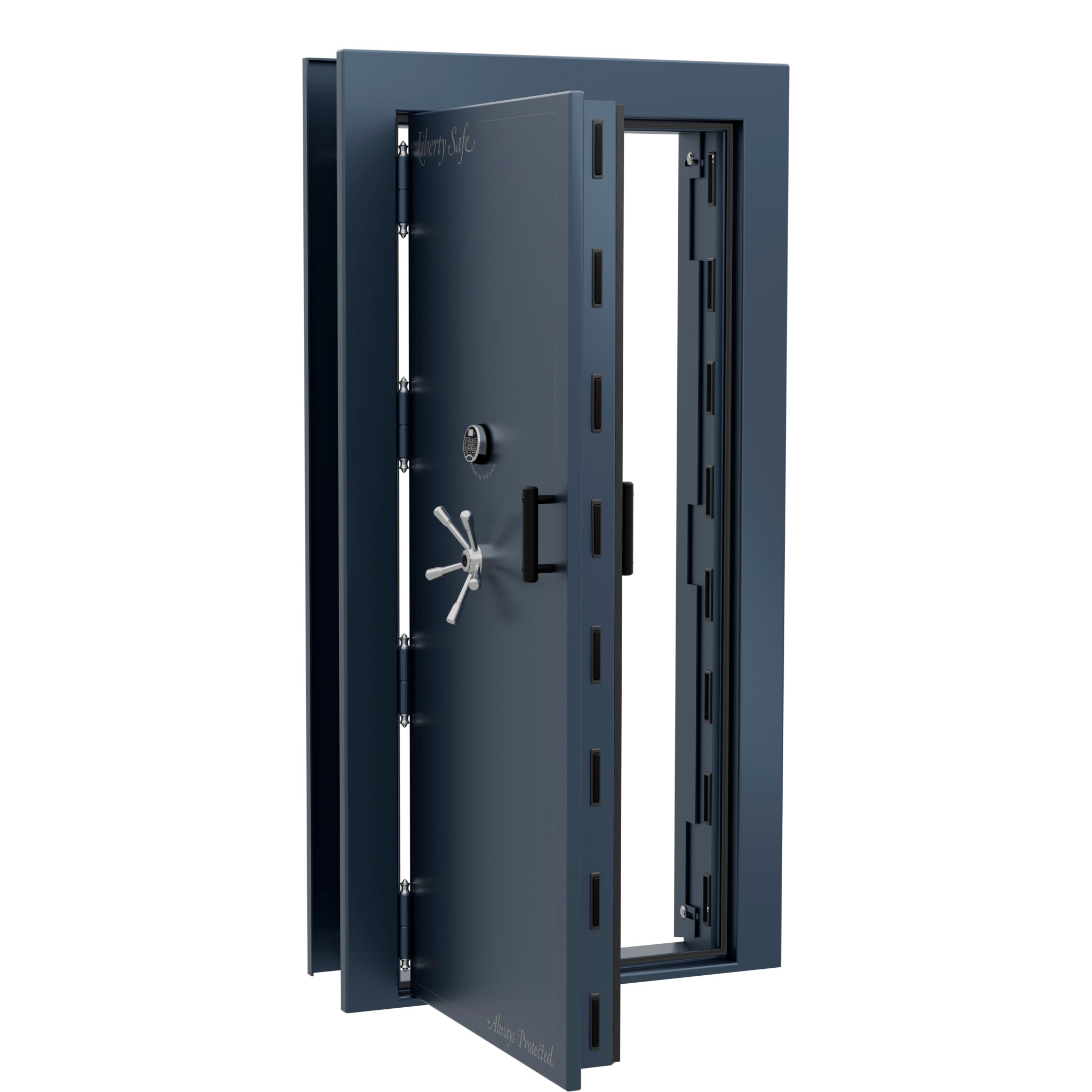

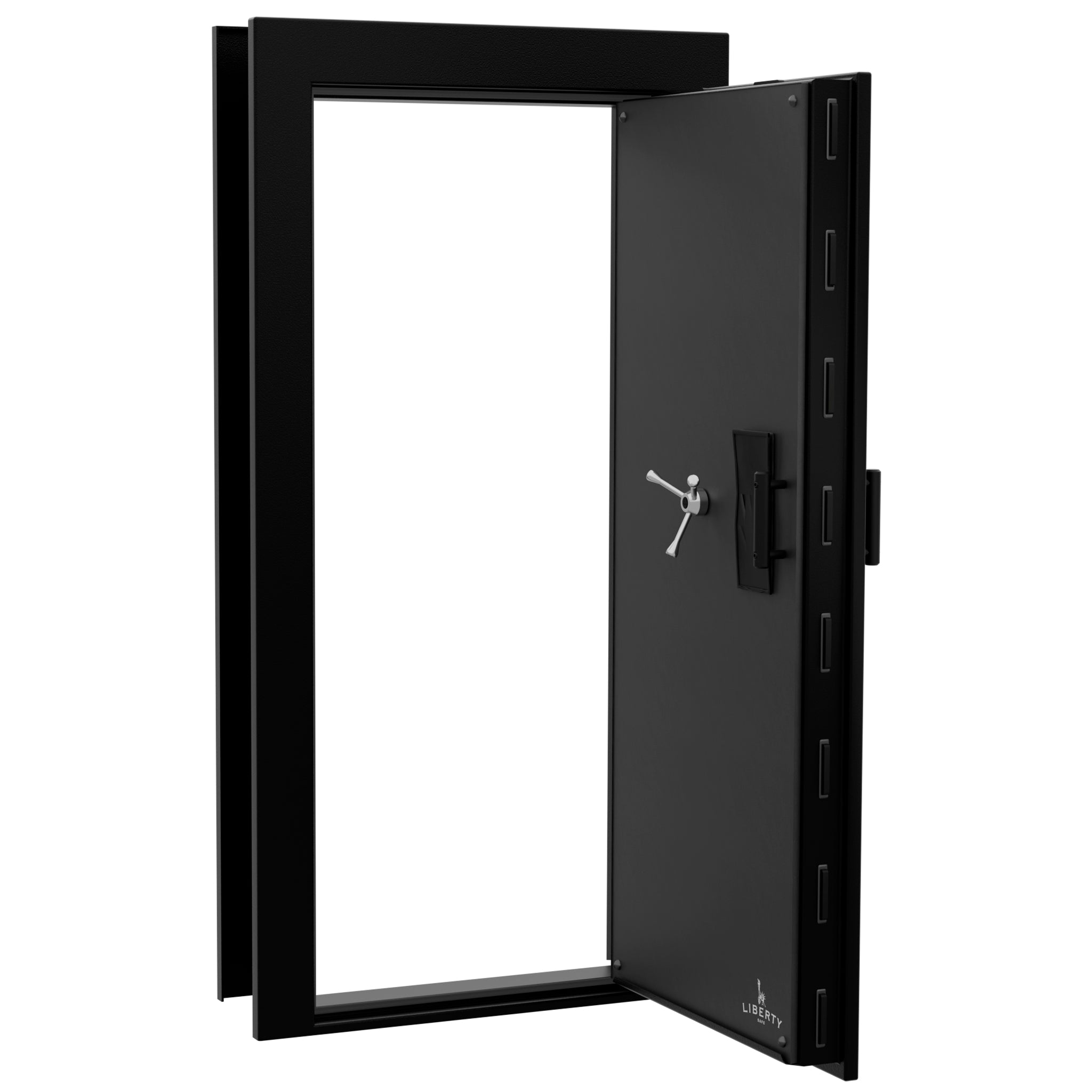

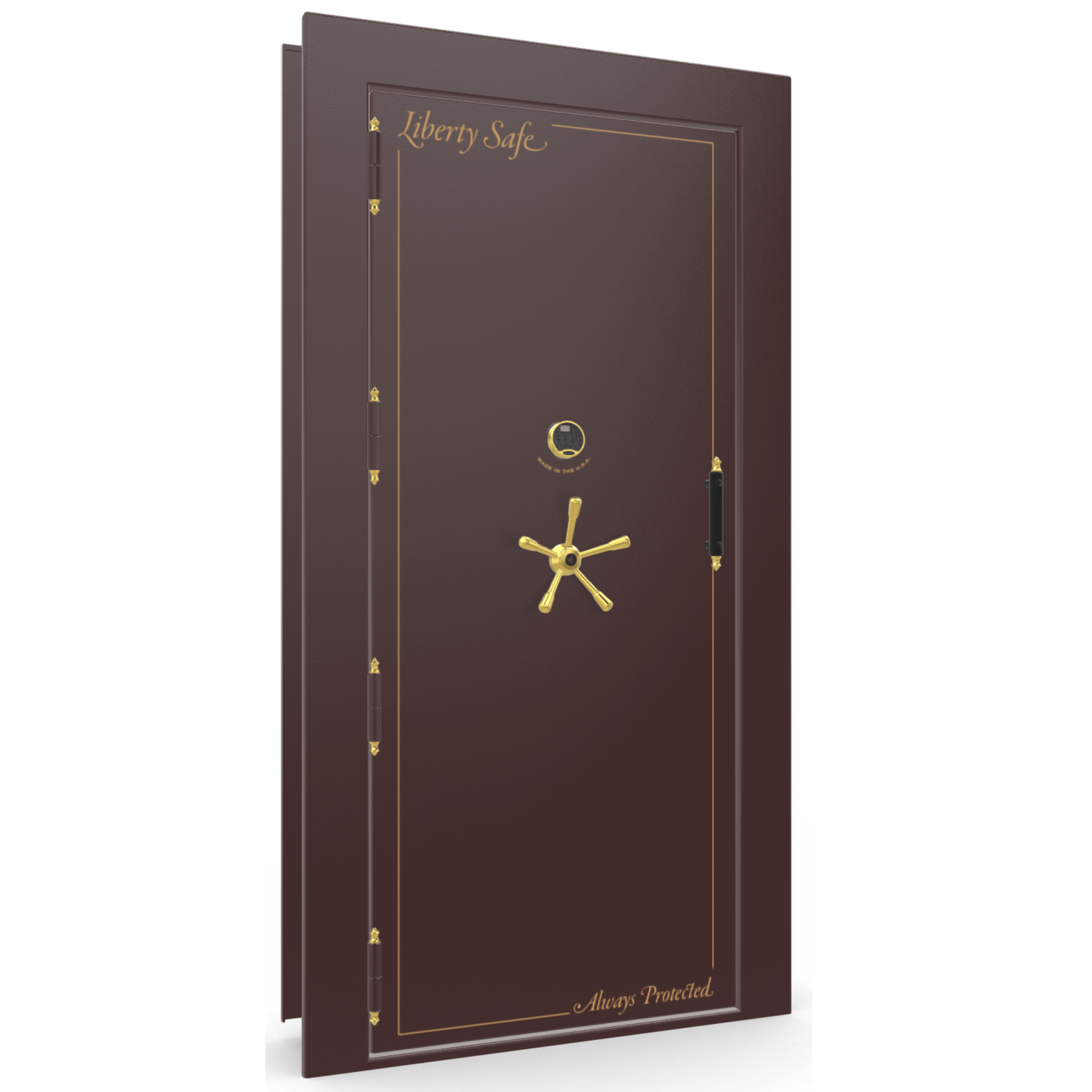

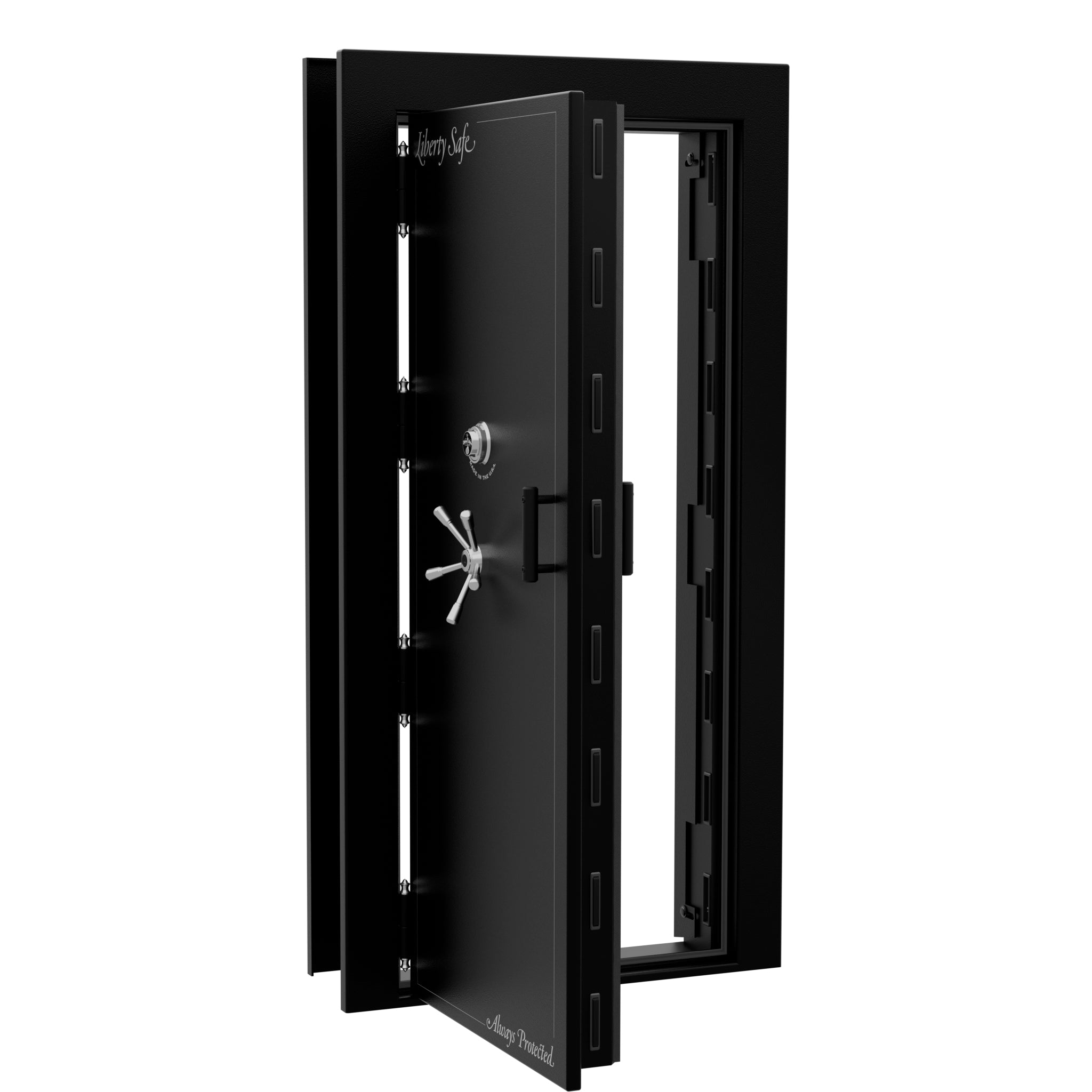

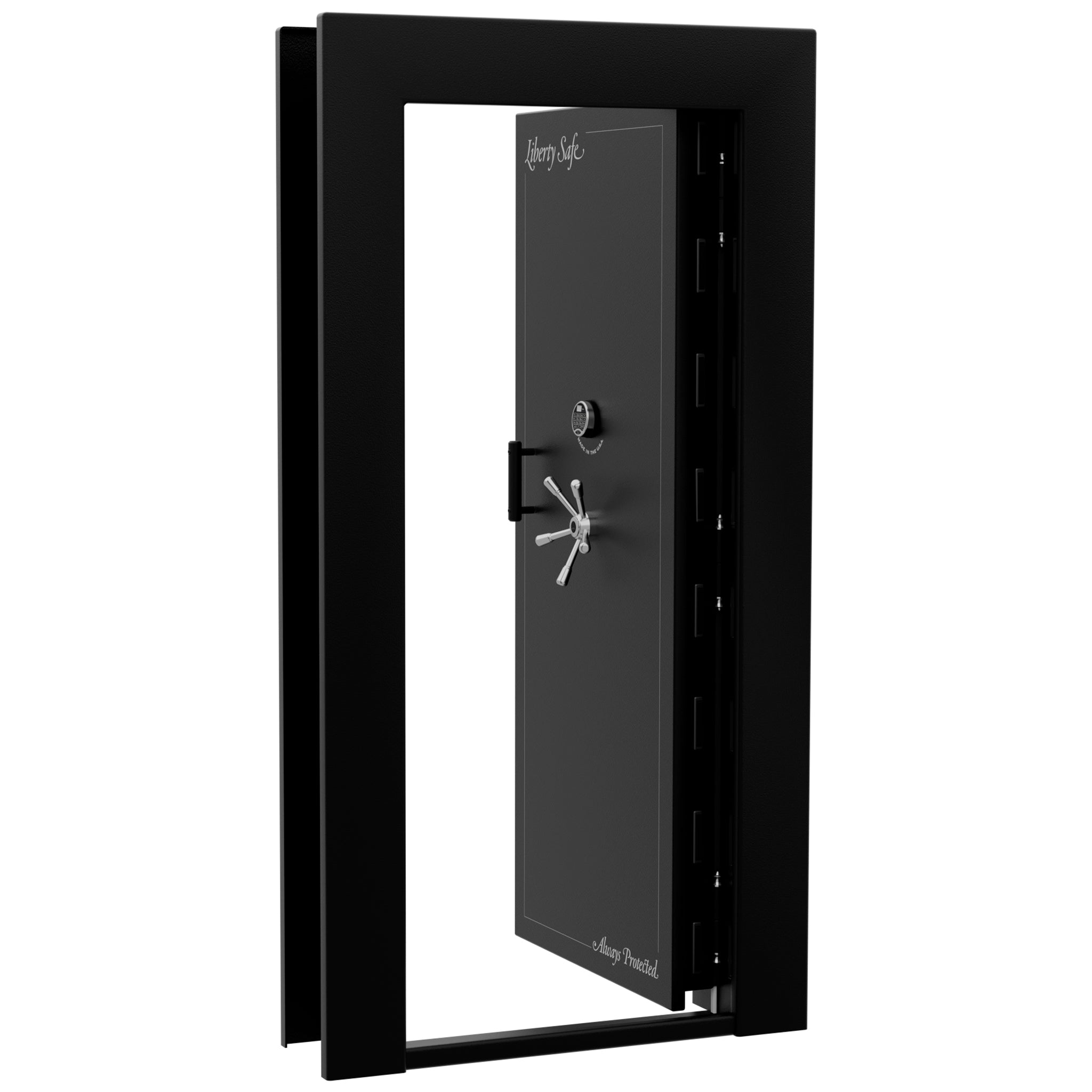

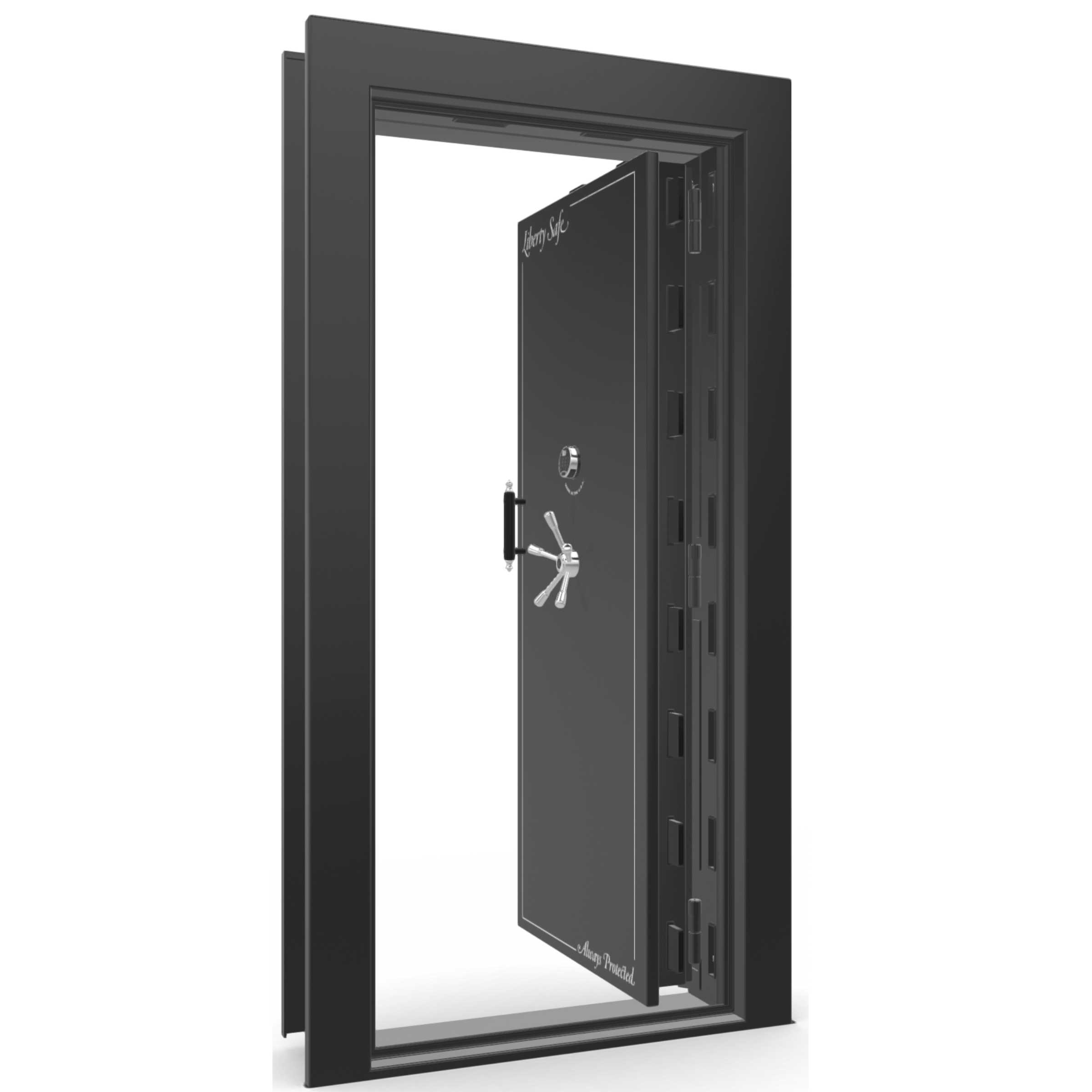

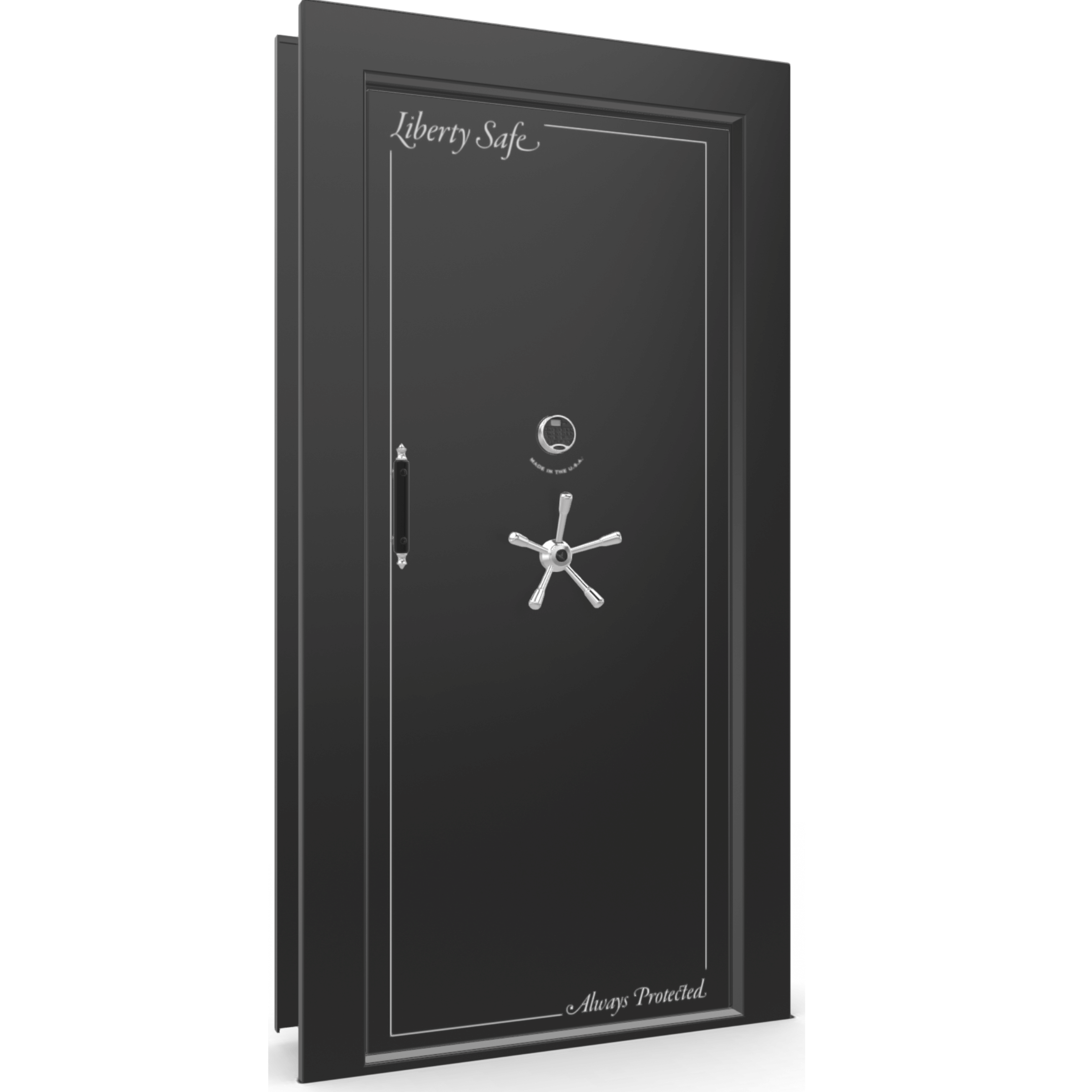

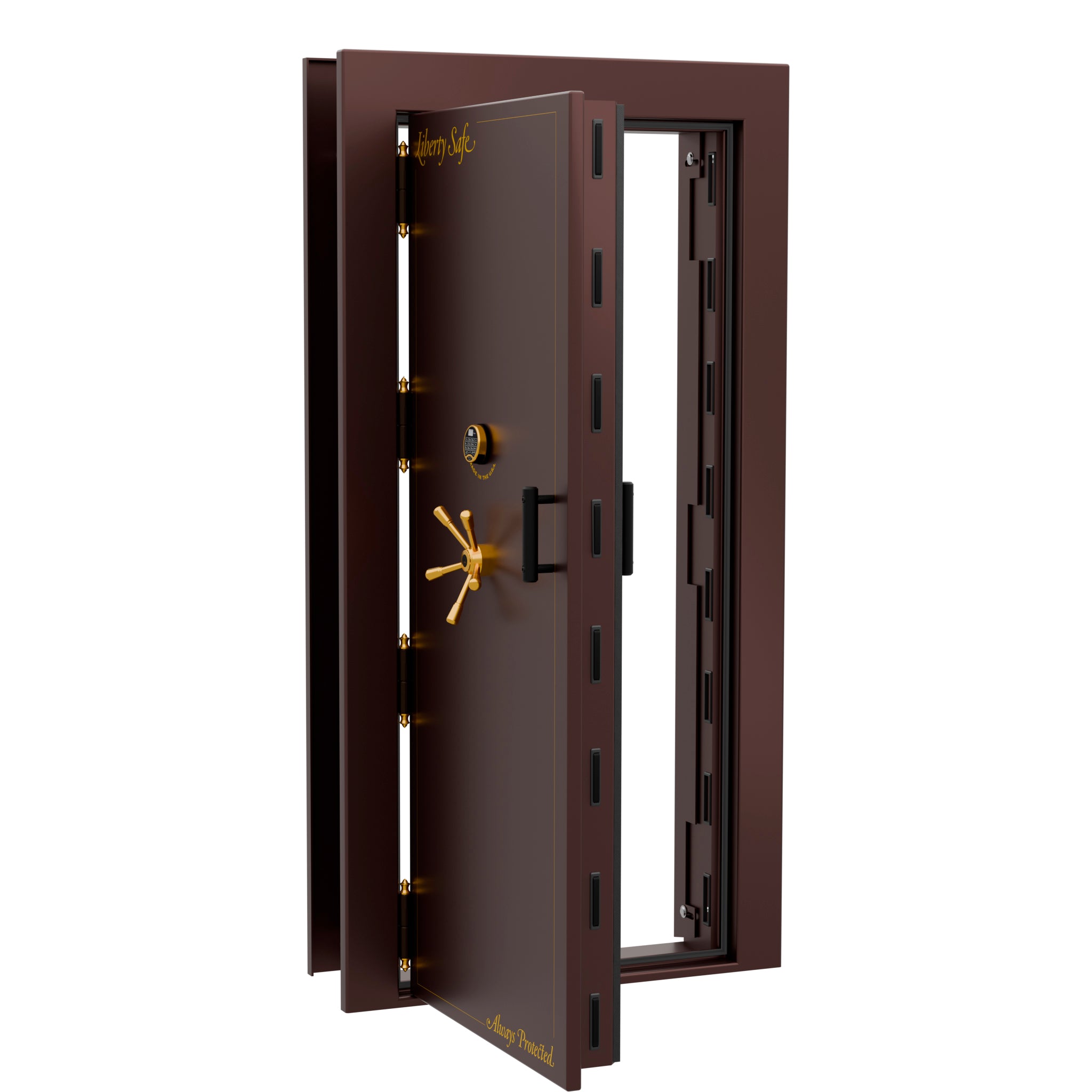

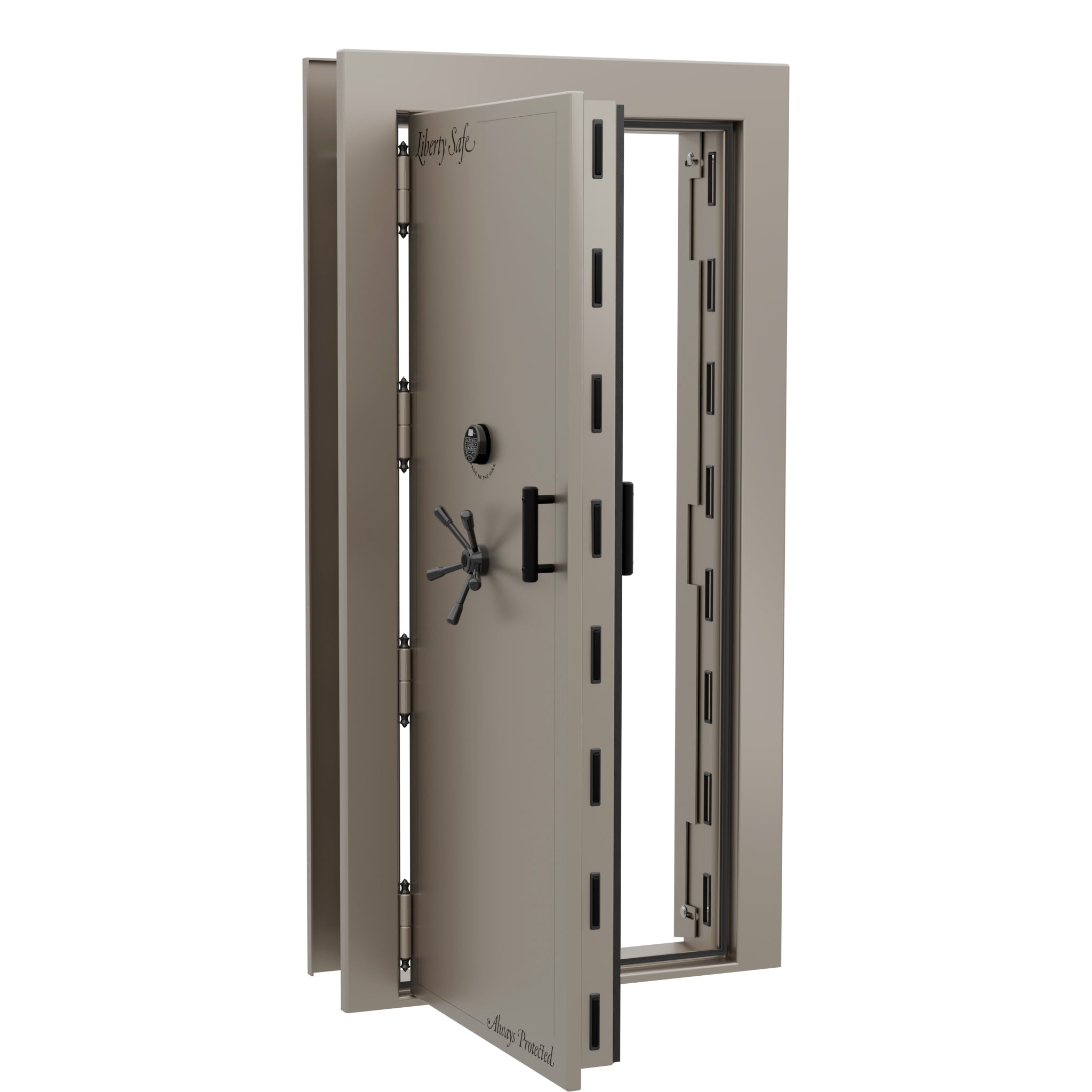

Vault Door
|
Vault Door
|
Vault Door Blockade
|
|
---|---|---|---|

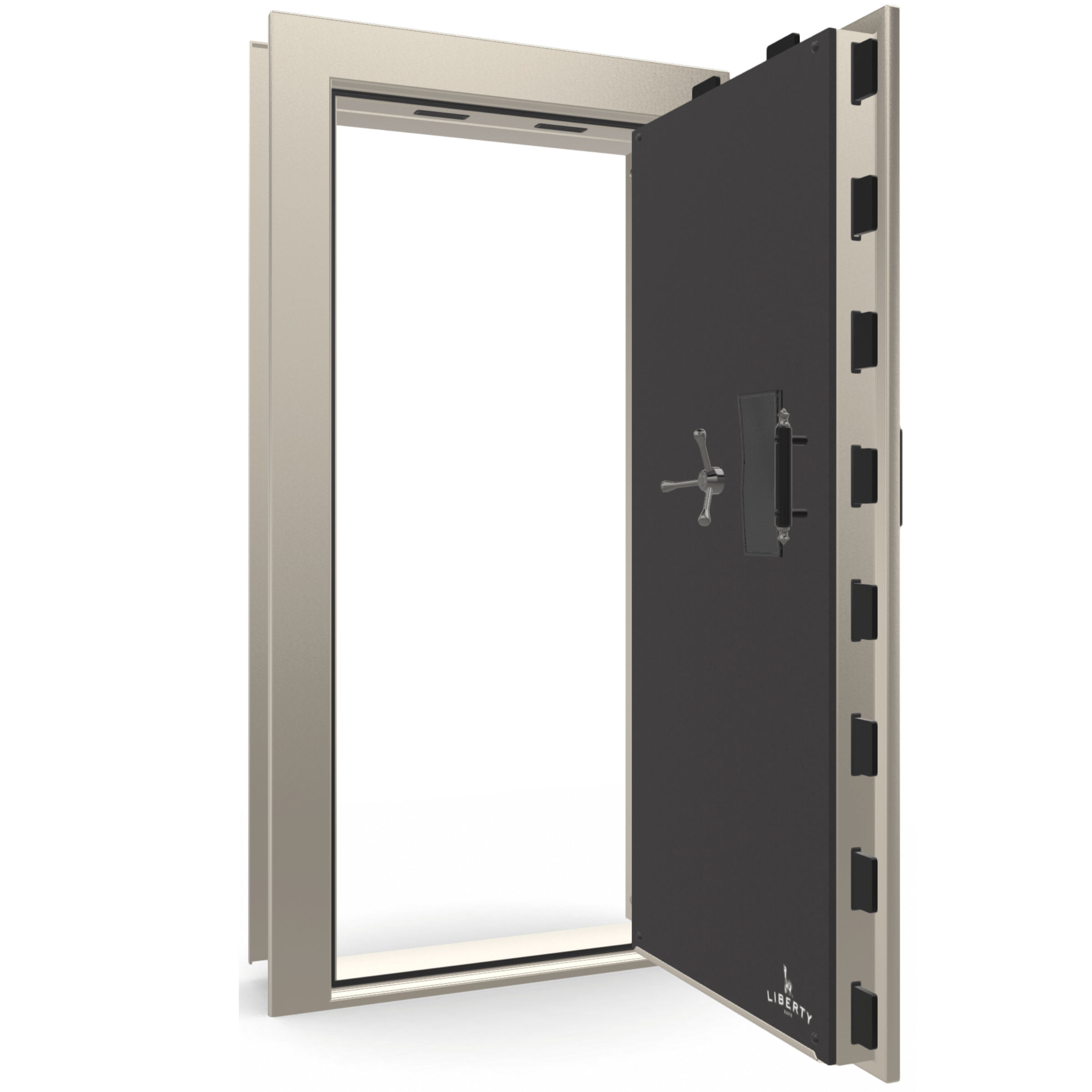

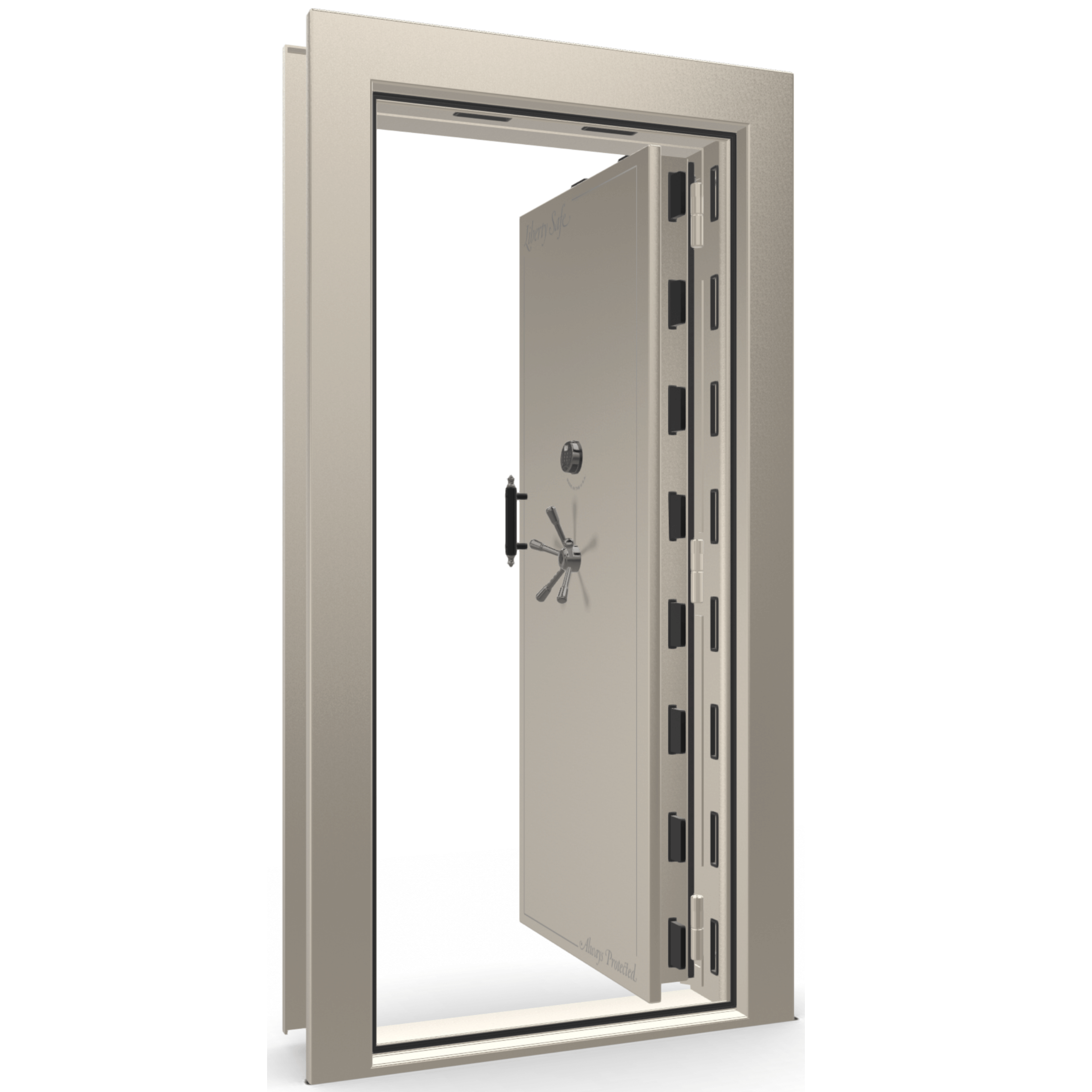

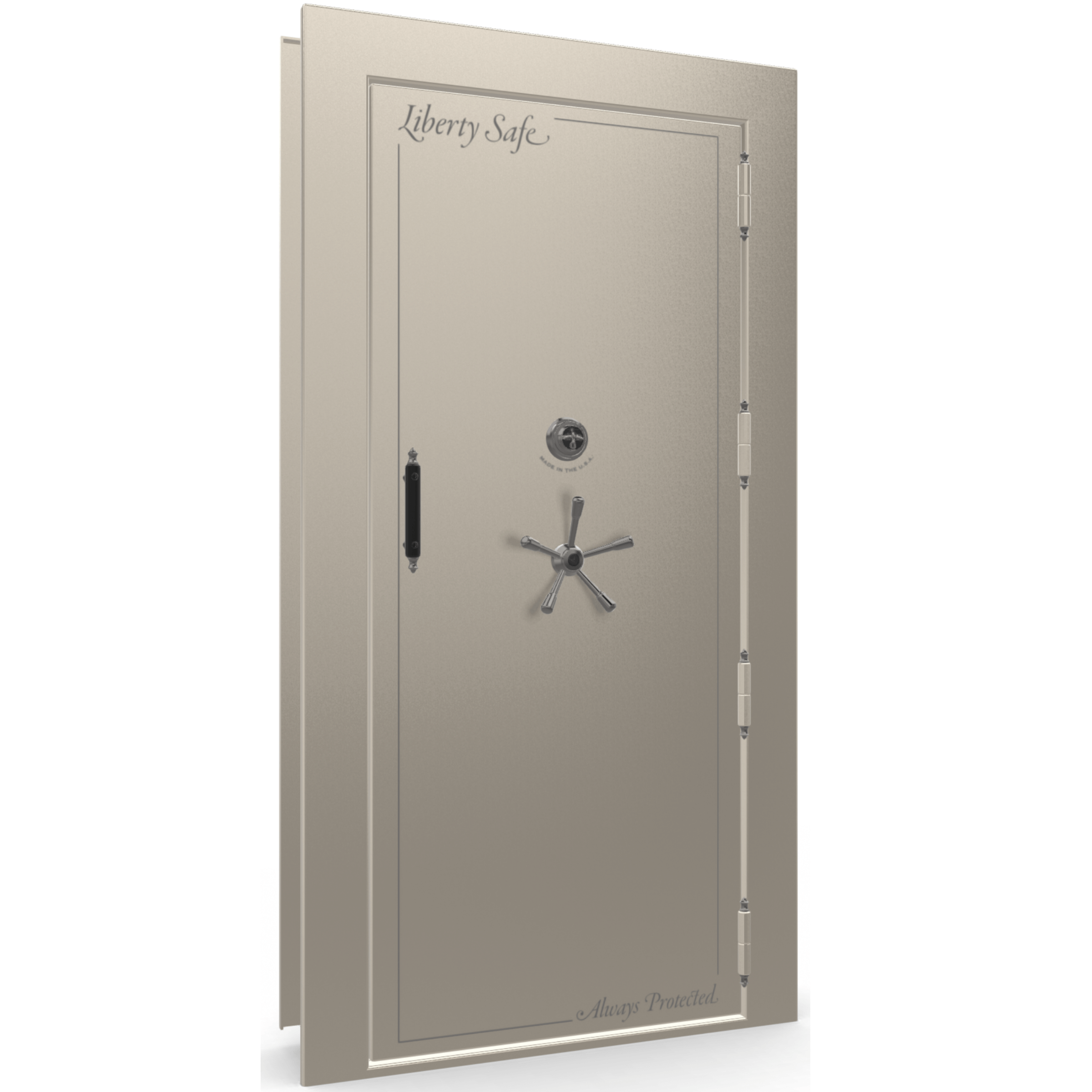

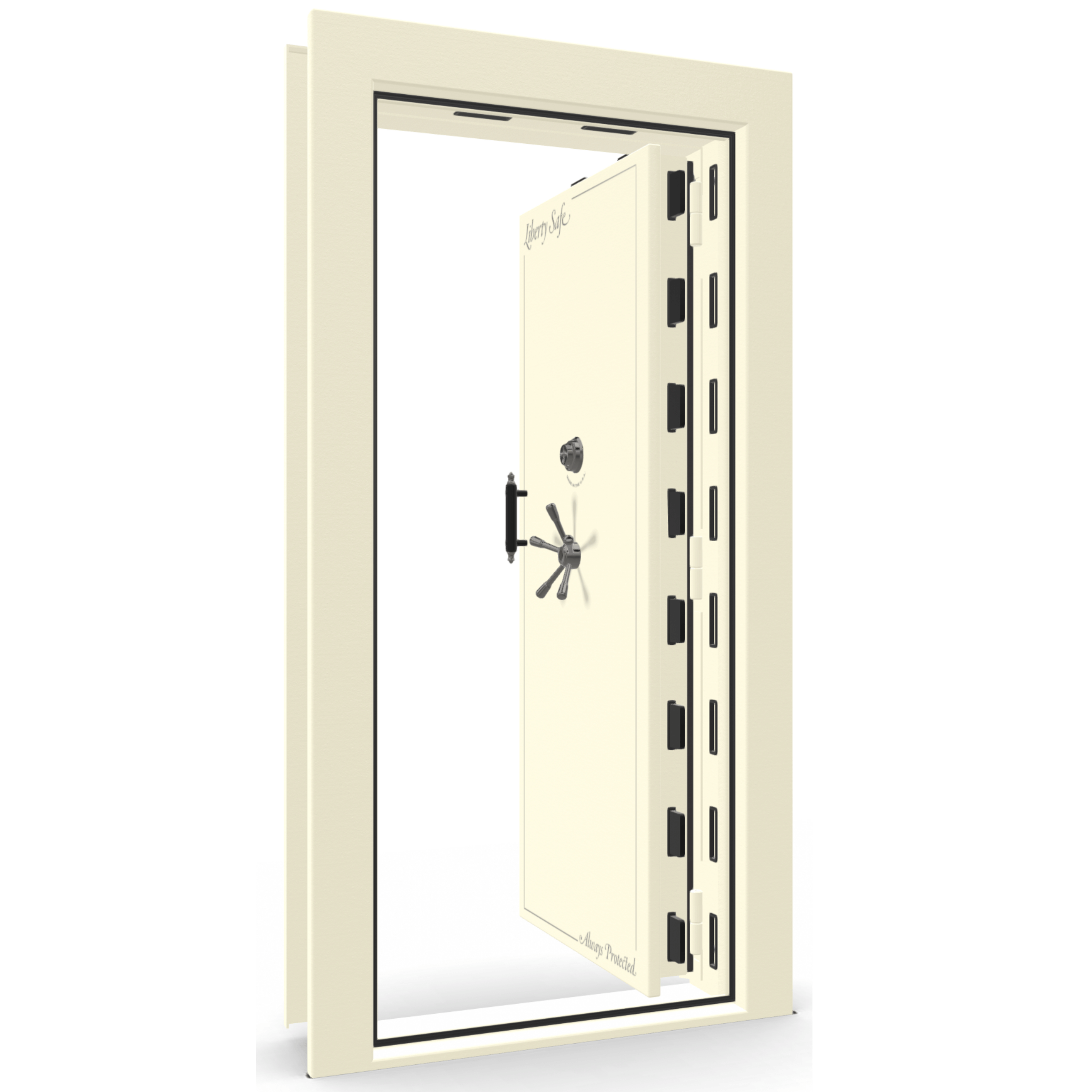

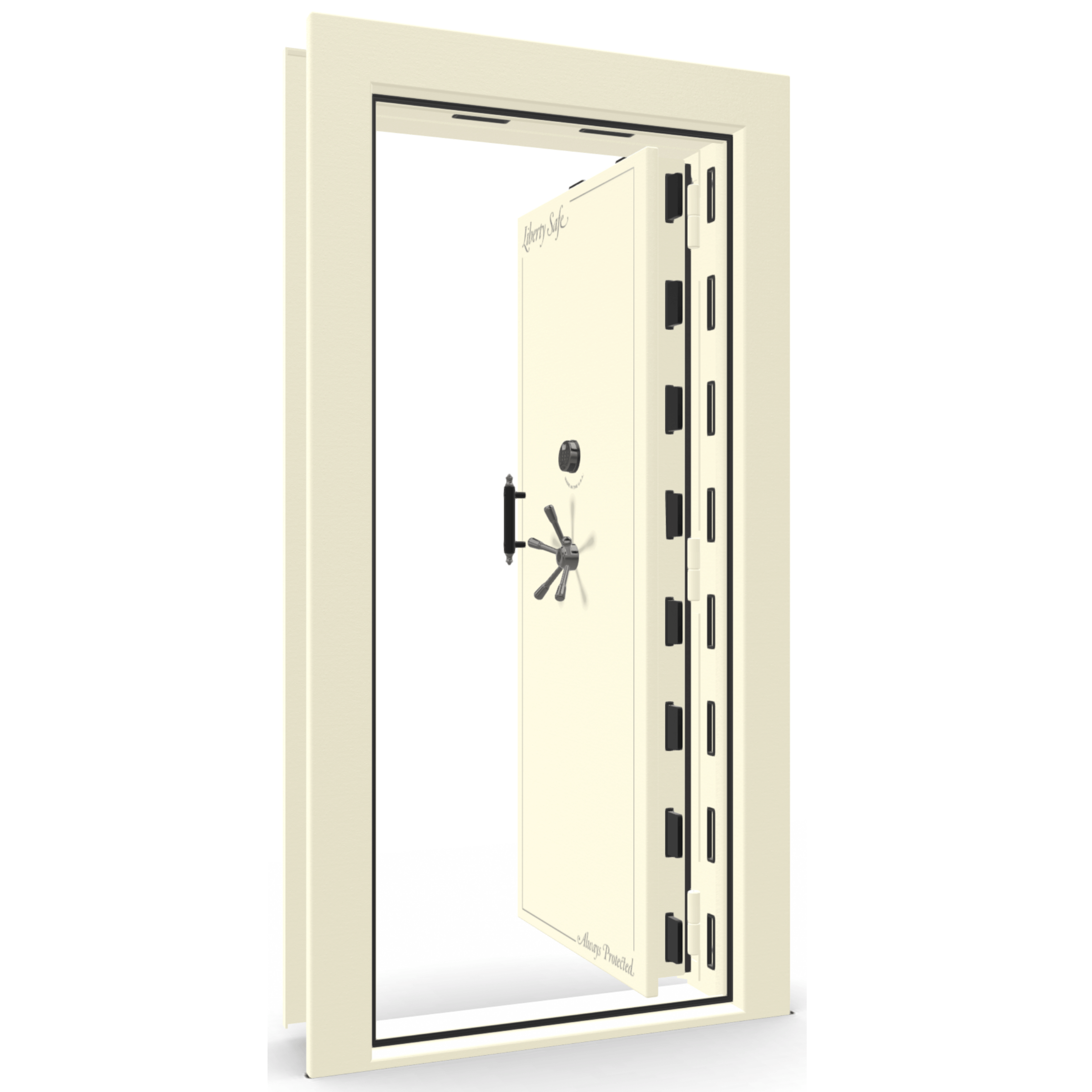

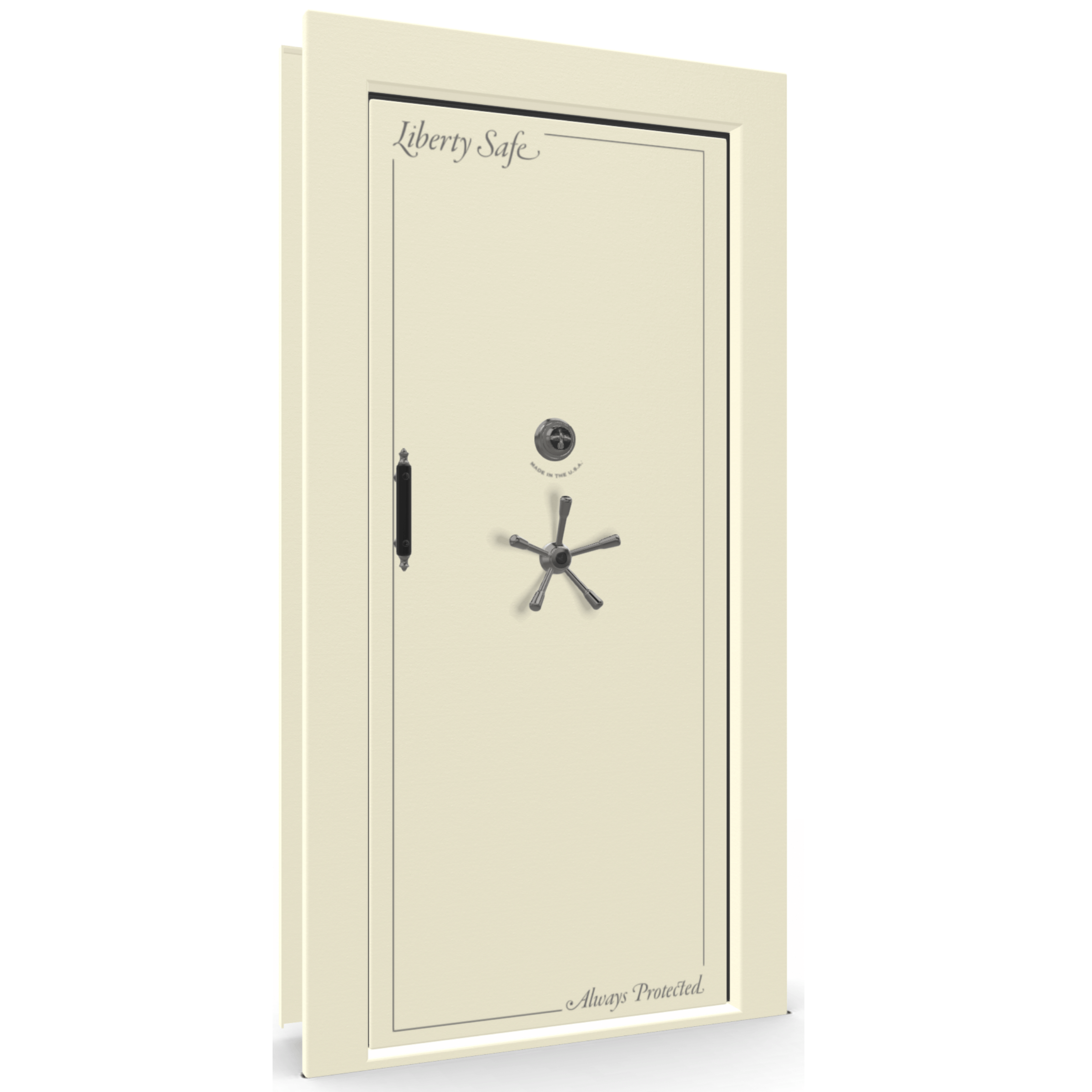

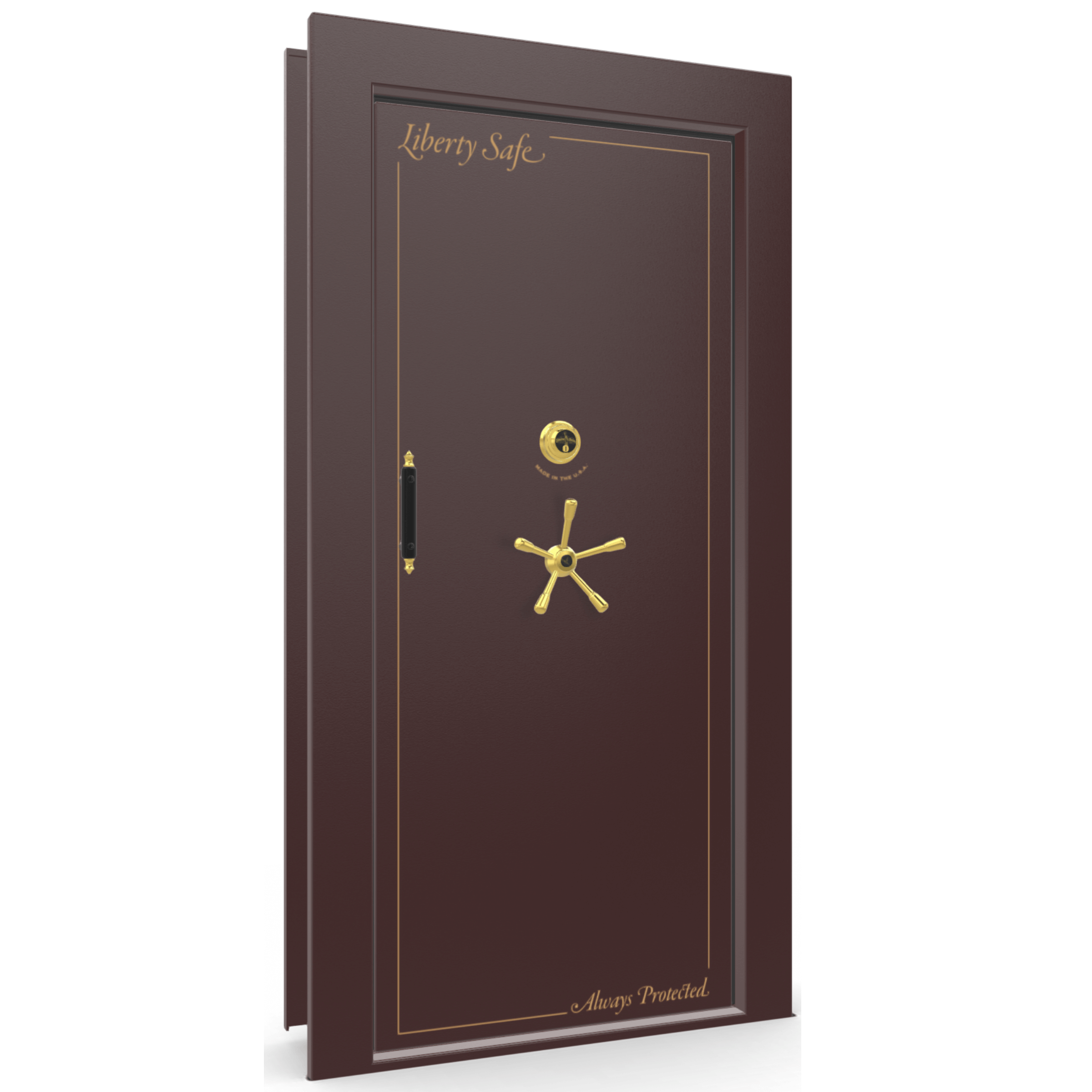

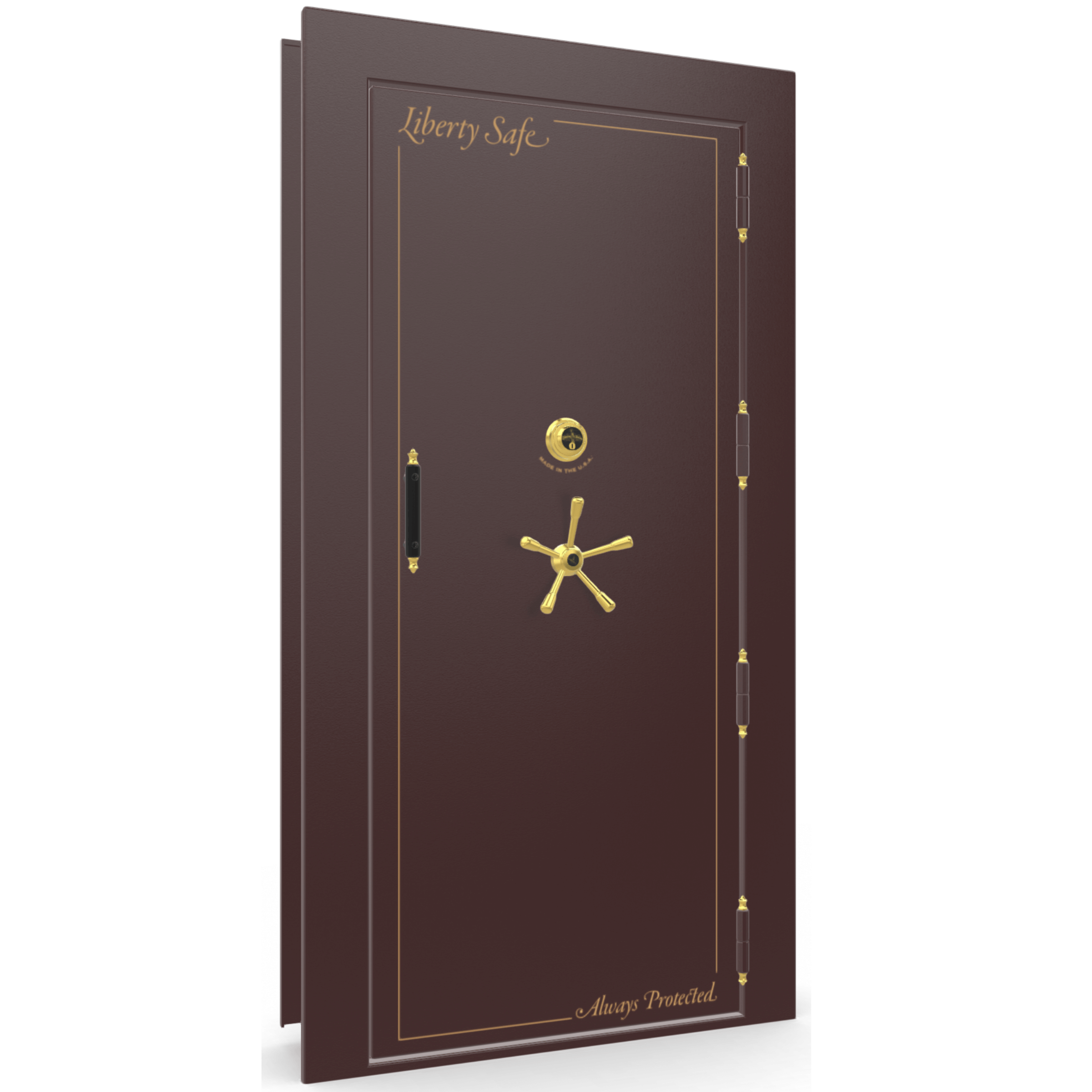

Model | VAULT DOOR – OUTSWING | VAULT DOOR – INSWING |
VAULT DOOR | BLOCKADE – INSWING |
# of Locking Bars | 18 | 18 | 6 |
Locking Bar Thickness | 1/2" | 1/2" | 1/4" |
Door Dimensions | 79” x 34” | 77” x 30.5” | 78.5” x 29.5” |
Walkthrough Clearance | If door is opened 90°, clearance is 27”; if opened 180°, clearance is 32” | Door opens to 90°, giving you a clearance of 26.5” | Door opens to 90°‚ giving you a clearance of 29.5” |
Threshold Height | 1.875” | 1.875” | 1.875” |
Rough Opening Requirement | 81”-85” H x 37”-42” W x 7”-10” D | 82.5”-85” H x 39”-42” W x 7”-9” D |
For clamshell installation: 82”-85” H x 38”-42” W x 7”-9” D; For bolt-in installation: 82”-85” H x 38”-42” W x 5” or greater D |
Hinge Options | Both left-hand swing and right-hand swing available | Both left-hand swing and right-hand swing available | Both left-hand swing and right-hand swing available |
Weight | 1,245 lbs. | 1,245 lbs. | 665 lbs. |
MEASUREMENTS: Measurements and dimensions are + or - 1/8" to all measurements for manufacturing variances.
Made in the U.S.A. from U.S. and Global Parts.
- UL listed Sargent and Greenleaf mechanical lock (electronic lock also available)
- High-end gear-driven door with ¼” steel plate
- Heavy-duty steel frame
- Internal lockout mechanism for use as a panic room
- Upgraded ball-bearing hardplate to protect the lock from drill attacks
- Dual relocker locks the door down in the event of attempted brute force entry
- Liberty’s exclusive, ultra-strong locking bars protect against pry attacks
- Slip-clutch mechanism protects against forced entry
- UL listed SecuRam toplit electronic lock
- Solid door with ¼” steel plate
- Internal lockout mechanism for use as a panic room
- Hardplate to protect the lock from drill attacks
- Dual relocker locks the door down in the event of attempted brute force entry
- Liberty’s exclusive, ultra-strong locking bars protect against pry attacks
