Graffunder | Castle | C7248 | Luxury Safe | CALL FOR PRICING

PLEASE NOTE: These are custom built safes. Pricing varies based on current price of steel/materials. Price quotes are only good for 72 hours.

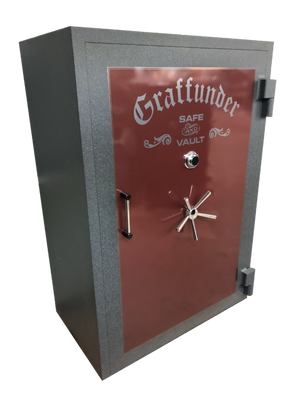

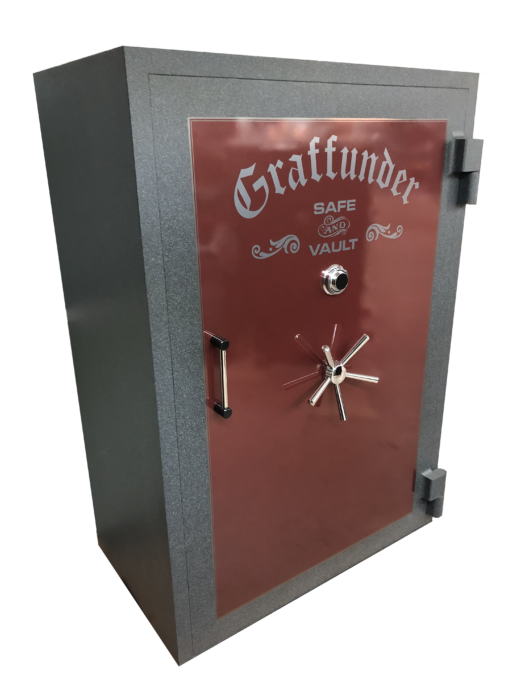

Graffunder Castle C7248 Overview:

  • Weight: 3600 Lbs
  • 71″H x 48.5″W x 28.25″D
  • Fire Rating: 1 Hour
  • Gun Capacity: 32-64

Since 1968, the Graffunder Castle 7248 gun safe built by Graffunder Safe have been hand crafted for commercial and residential use. Guided by the philosophy “quality over quantity”, our products exceed industry standards at every level and in every area. With a specialty in custom work; this business has earned its reputation as “the Rolls Royce of Safes”. The Graffunder safes and gun safes are built with B rate, C rate, E rate and F rate bodies and doors, giving the Graffunder gun safes the most and heaviest steel in the gun safe industry today. The Graffunder Castle 7248 gun safe offers a true “C” rated (1/2″ body, 1″ door) safe.  Due to the nature of their applications and our philosophy of randomization, the following unit is highly customizable and tailored to the individual end user.

Dimensions:  71″ x 48.25″ x 28.25″

Weight: 3600 Lbs


Outer plate: Minimum 1″ (12.7mm) of A-36 steel, 3.5″ (88.9mm) overall thickness. On fire rated units, door is insulated with 1½” (25.4mm) UL approved insulating material. Fire rated units also incorporate high temperature heat seals in strategic areas. Anti-drill barriers: Hardened steel ball bearing plates

Lock: U.L. listed group 2 mechanical lock

Re-locking systems: Randomly positioned, independent live or dead re-lockers, both thermally and mechanically activated.

Door Bolts: 1¼” diameter solid stainless steel


Outer plates consisting of minimum 1/2″ (6.3mm) A-36 steel. On fire rated units, additional barrier of 1.5″ (38.1mm) proprietary high density, cement based composite material enclosed between outer plate and 16ga (1.5mm) interior steel body.

GRAFFUNDER CASTLE 7248 GUN SAFE Standard Model Includes:

  • Three-spoke handle
  • Group II UL-listed combination lock
  • Electrical access hole

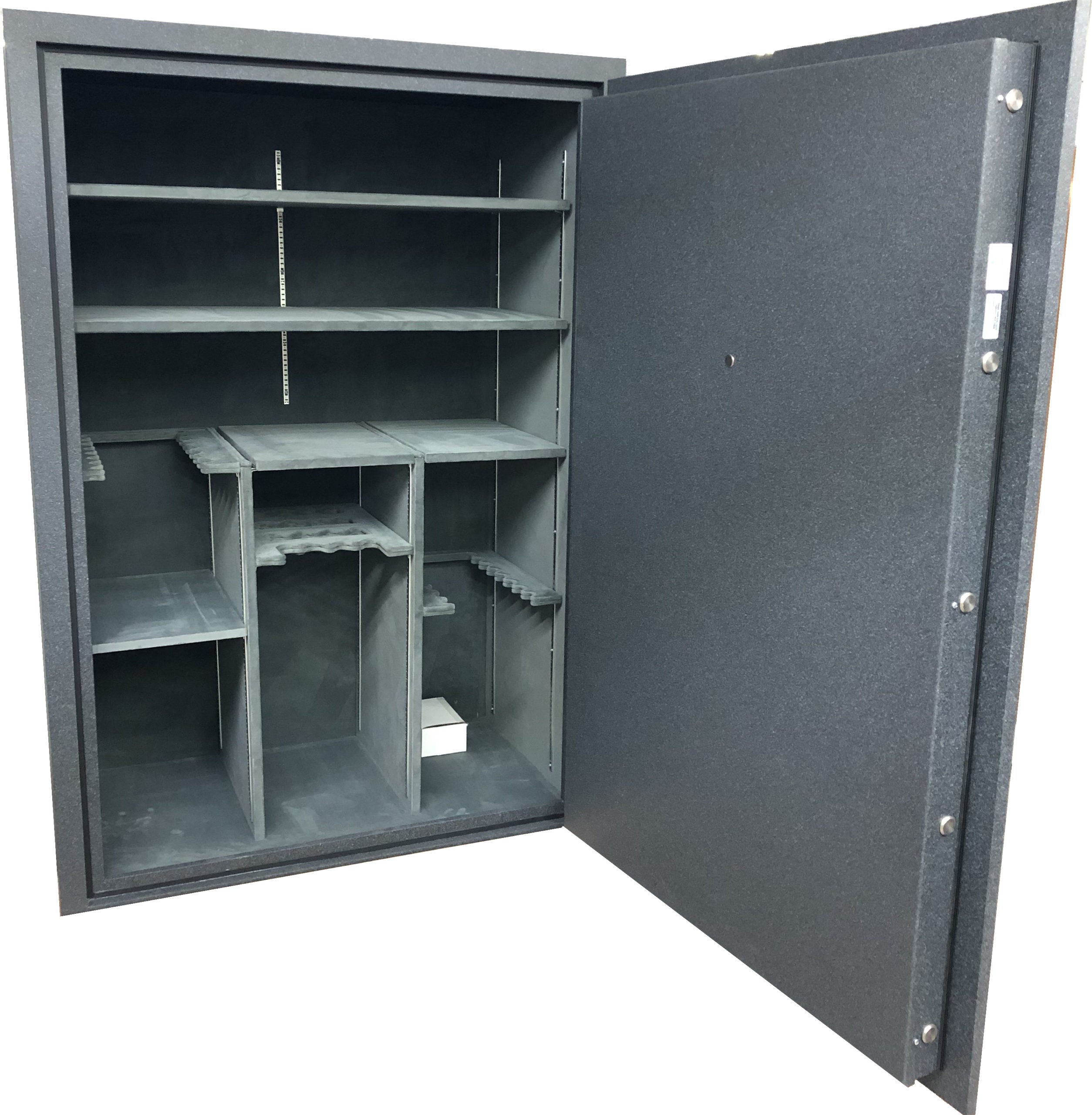

  • Choice of interior #1, #3 or #5
  • Optional interior choices #2, #4, or #6

The Graffunder CASTLE 7248 gun safe is for those serious about their security.

Any safe model can be designed to your specifications. If you have questions or need additional assistance, please contact us (702) 331-7233
