PLEASE NOTE: These are custom built safes. Pricing varies based on current price of steel/materials. Price quotes are only good for 72 hours.

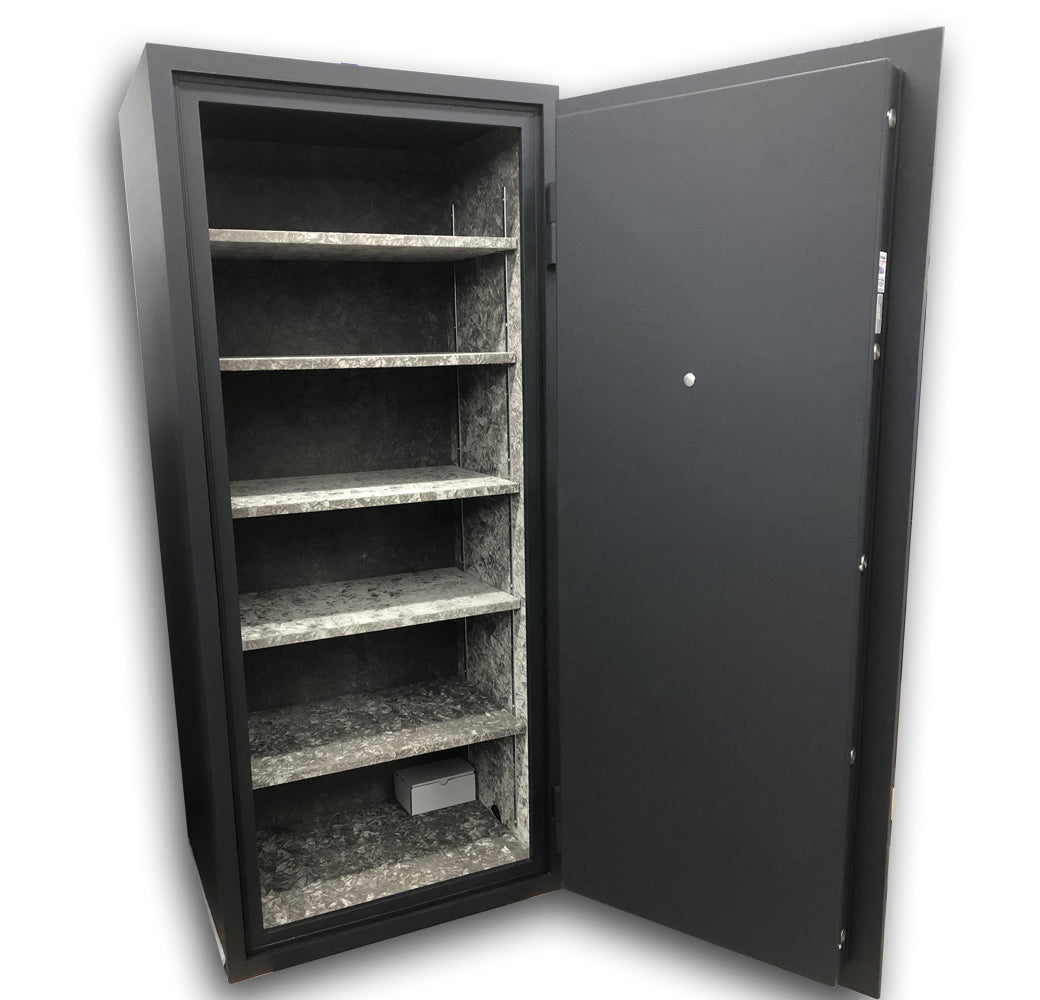

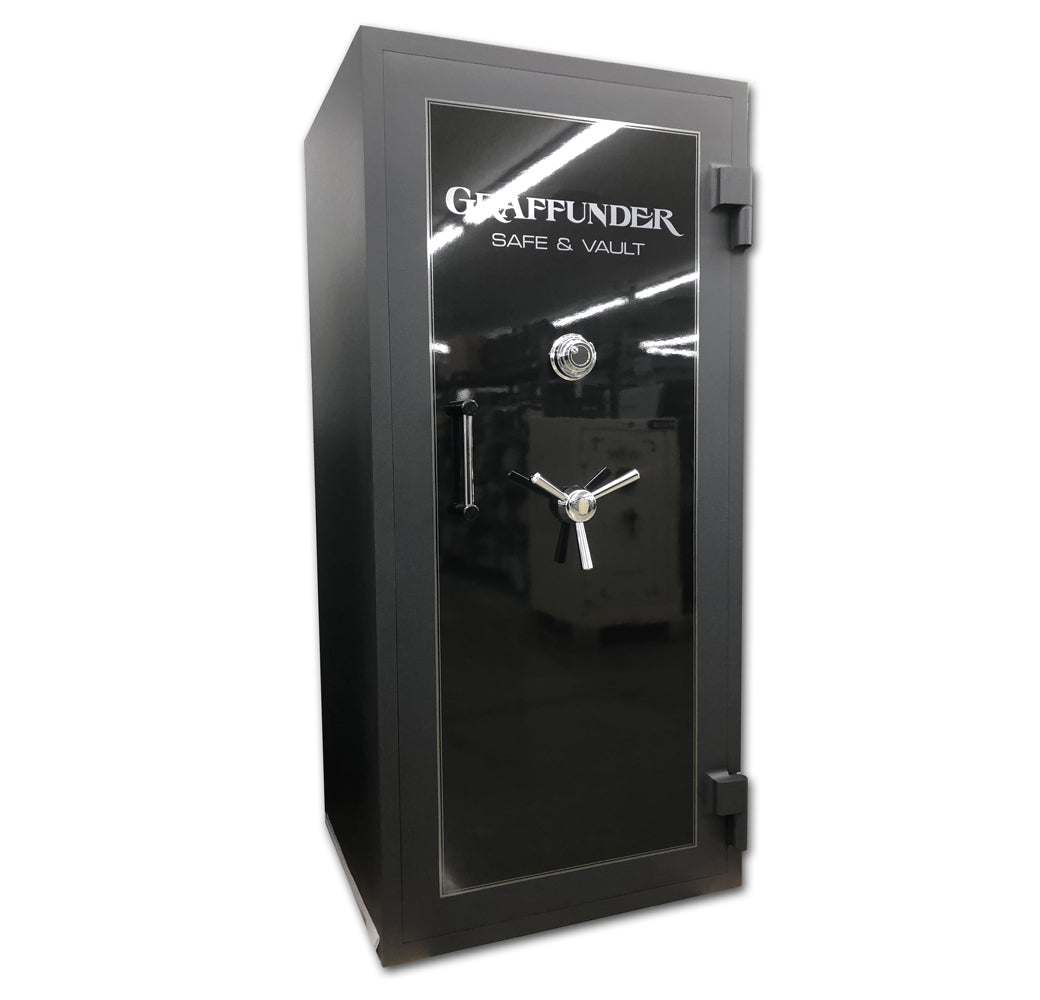

Graffunder Castle C6028 Overview:
- Weight: 2400 lbs
- 59″H x 28.5″W x 30″D
- Fire Rating: 1 Hour
- Gun Capacity: 16-32
Series: B,C,E,F
- B-RATE CONSTRUCTION: 1 3/4" overall body constructed of 1/4" A36 high tensile steel outer and 14 & 16 ga. inner plates enclosing a high density composite material. 3 1/2" overall door insulated with U.L. approved insulating material, outer plate being 1/2" thick A36 high tensile steel.
- C-RATE CONSTRUCTION: 2" overall body constructed of 1/2" A36 high tensile steel outer and 14 & 16 ga. inner plates enclosing a high density composite material. 4" overall door insulated with U.L. approved insulating material, outer plate being 1" thick A36 high tensile steel
- E-RATE CONSTRUCTION: 2 1/2" overall body constructed of 1" A36 high tensile steel outer and 14 & 16 ga. inner plates enclosing a high density composite material. 4 1/2" overall door insulated with U.L. approved insulating material, outer plate being 1 1/2" thick A36 high tensile steel
- F-RATE CONSTRUCTION: 2 1/2" overall body constructed of 1" A36 high tensile steel outer and 14 & 16 ga. inner plates enclosing a high density composite material. 4 1/2" overall door insulated with U.L. approved insulating material, outer plate being 1" thick A36 high tensile steel and 1/2" Manganese
- 1 - hour 1750 degree factory fire rating
- 8 to 10 solid 1 1/4" stainless steel locking bolts, active front and back to prevent door removal after hinge attack
- U.L. listed group II combination lock, with re-lock and 1 million possible combinations
- Additional relocking devices activated by tool and/or torch attack for added security
- Lock protected by Ball Bearing Anti Drill Barriers
- Fully recessed, tightly toleranced door for protection against forced entry
- High temperature heat seal door jam with additional intumescent fire and smoke seal
- Hardened hinge pins that ride on thrust bearing washers
- Attractive paint finishes to choose from
- Variety of interiors to choose from
- All safes covered by limited lifetime warranty
- Model designations (see below): B = B-rated, C = C-rated, E = E rated, and F= F rated

ADDITIONAL FEATURES OF E and F RATE AS FOLLOWS:
- U.L. approved Group 1 & 1R manipulation proof lock
- Additional anti-drill barrier.
- Hardened ball bearing anti-drill barrier protects bolts from punching attack
- Graffunder Vault Doors are also available in the E rating and F rating.
Loading Fee $200.00
1/2 a36 Steel Plate Door.
Any safe model can be designed to your specifications. If you have questions or need additional assistance, please contact us (702) 331-7233.
