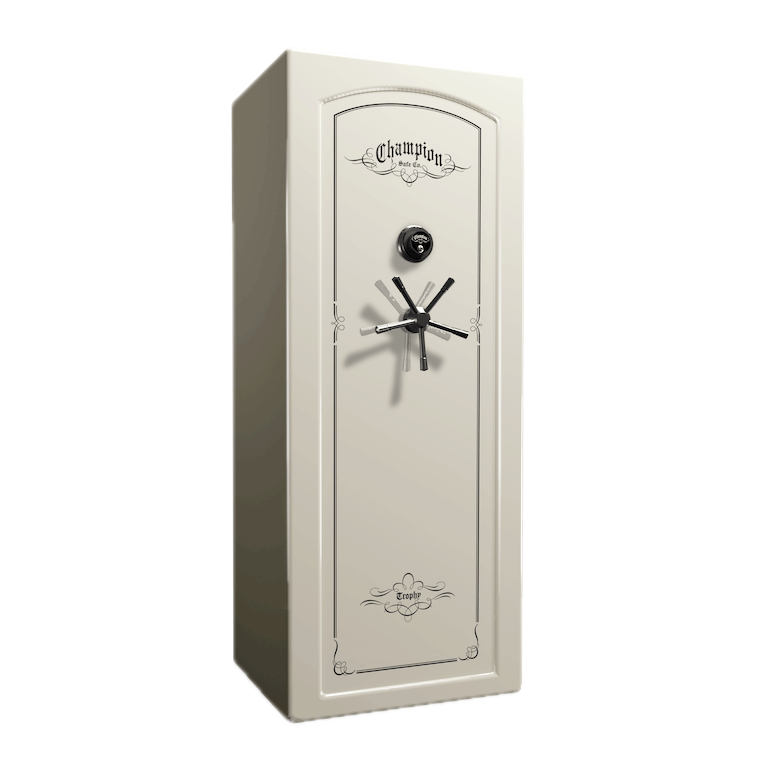

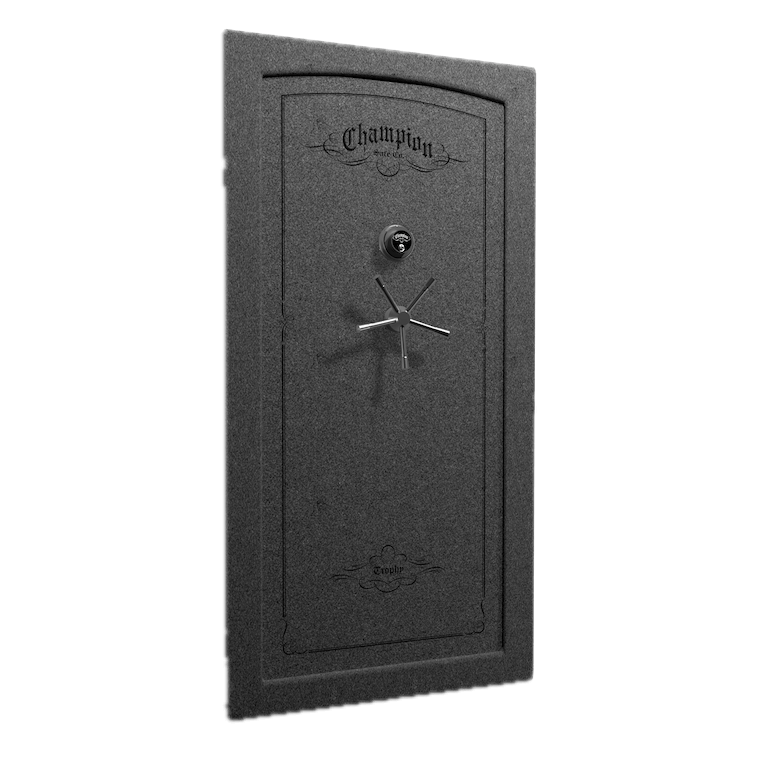

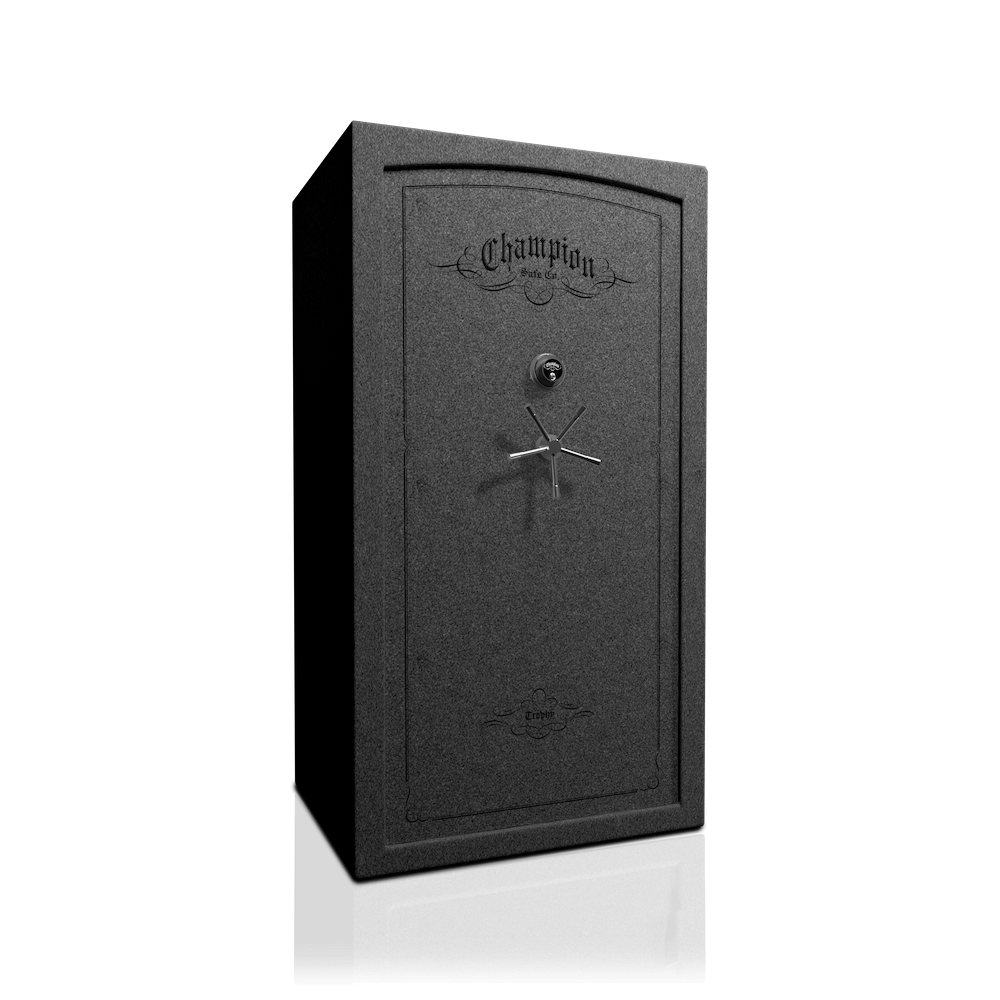

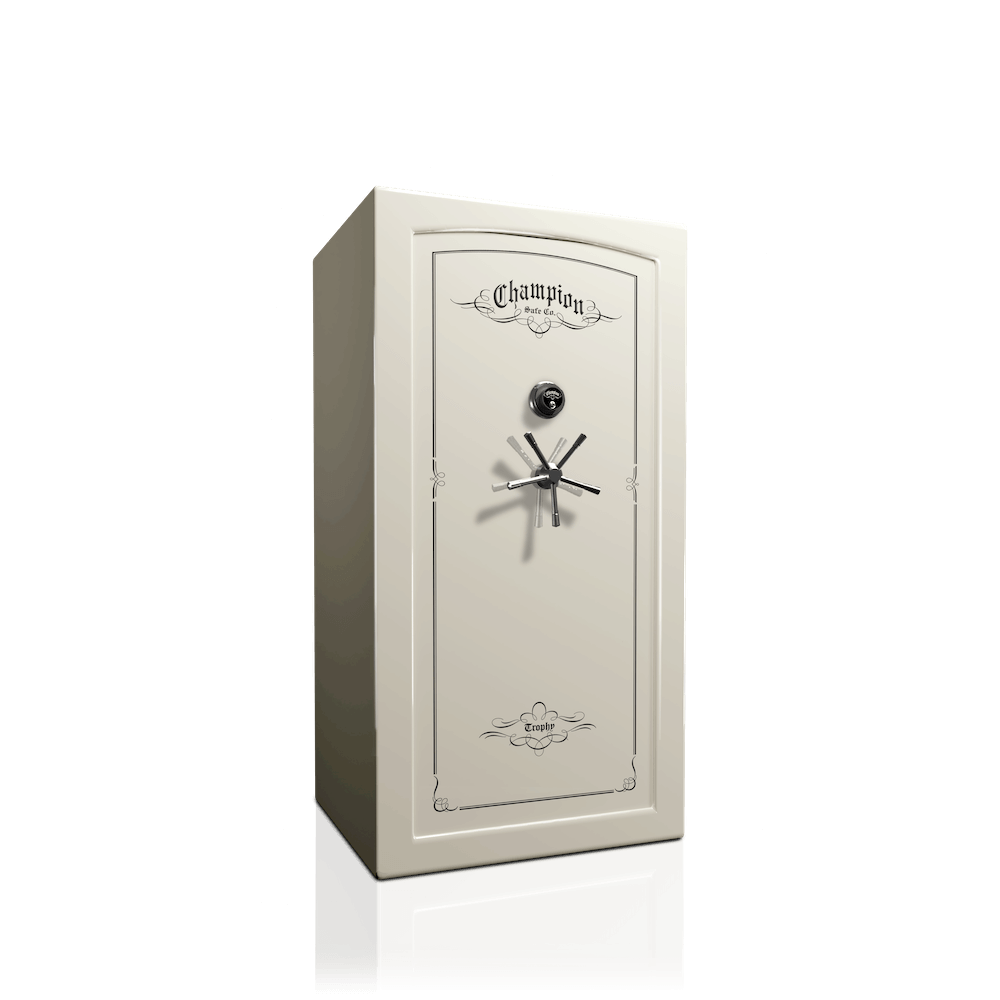

Champion Safes Trophy Series

Body

• Up to Two-Inch Thick Composite Walls
• 11-Gauge Steel Walls
• Up to Three Layers of Fire Insulation
• Double-Steel Door Casement™

High-Security Door

• Classic Steel Arch Doorway™
• 4-1/2″-Thick Double Plate Steel Door
• 10-Gauge Outer Steel, Full 14-Gauge Inner
• 3/4″ Reinforced Door Edge
• Internal Ball-Bearing Hinges
• Three Layers of Fire Insulation
• Five-Spoke Handle with Slip Clutch

BoltWorks

• Four-Way Active Boltworks
• Up to 16, 1-1/4”-Diameter Door Bolts
• Bolt-Detent™ System
• Roughneck™ Bolt Guides

Lock Protection

• Sargent & Greenleaf® Group II Dial Lock Standard
• Champion’s Auto-Relock™ System
• Diamond-Embedded Armor Plate™

Interior

• Plush Velour Interior
• High Capacity Gun Racks
• LED Lighting with Motion Sensor
• 110-Volt Power Receptacle
• Steel Reinforced Top Shelves (TY-60, TY-50)
• Deluxe Door Organizer

Ratings

• 1500°F 75-MINUTE FIRE RATING
• Phoenix™ Class III Fire Protection
• Tested in an ASME Certified Facility
• UL® Security Rating
• Lifetime Warranty

---

Note: All safes come in additional colors and sizes. Please contact Champion Safe to order a safe not available through our online market. Additional delivery time can be expected.

AVAILABLE SIZES

Safe Model	Dimensions WxHxD*	Volume (Cubic Feet)	Approx. Weight (lbs)	Outer Shell Thickness	Outer Door Steel Thickness	Inner Door Steel Thickness	Door Edge Thickness	Active Bolts	Gun Count
TY-60	50" x 72.25" x 30.5"	59CF	1250	11 ga.	10 ga.	14 ga.	3/4"	16 - 1.25"	62
TY-50	42" x 72.25" x 30.5"	51 CF	1105	11 ga.	10 ga.	14 ga.	3/4"	16 - 1.25"	52
TY-40	36" x 66" x 28.5"	42 CF	905	11 ga.	10 ga.	14 ga.	3/4"	14 - 1.25"	42
TY-25	31" x 60" x 26.5"	26 CF	705	11 ga.	10 ga.	14 ga.	3/4"	14 - 1.25"	24
TY-17	24" x 60" x 23.5"	17 CF	550	11 ga.	10 ga.	14 ga.	3/4"	12 - 1.25"	12

*Depth includes 2.5″ for handle.

---

No Compromise for Greatness

Built with the same exacting precision and superiority as Champion’s higher-end models, the Trophy Series offers rugged protection. Its 11-gauge steel body, reinforced with a Double-Steel Door Casement™, provides a solid steel foundation. Its thick Double Plate Steel Door with full inner door steel and numerous 1¼”-diameter four-way active door bolts provide excellent security. The Trophy’s door defense system includes, Champion’s Auto-Relock™ system and Diamond-Embedded Armor Plate™. To protect from the hottest fires, it boasts a 1500°F 75-minute fire rating. The Trophy Series comes in high-gloss and textured finishes, with a velour-covered interior and convenient door organizer.
