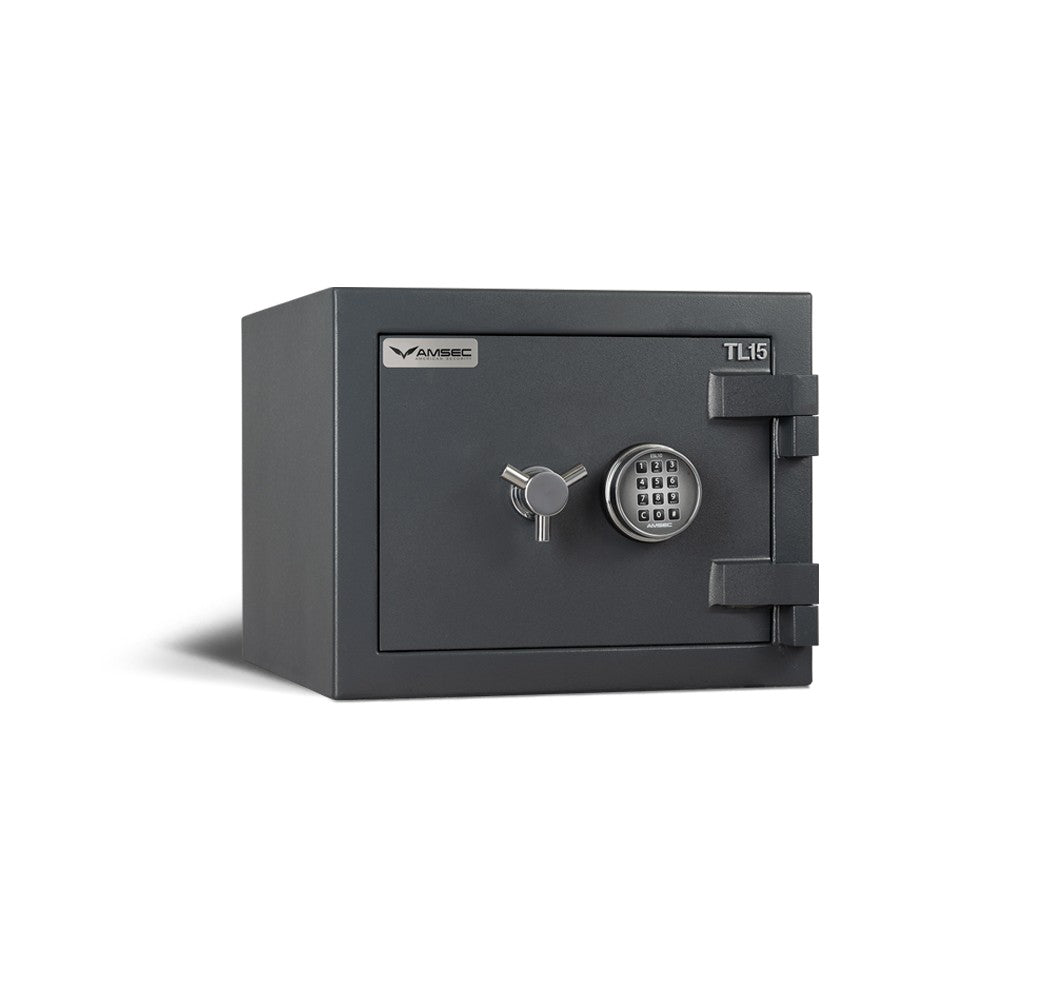

American Security MAX1014 High Security Composite Safe

• UL certified TL-15 burglary protection
• 90 minute Intertek verified fire rating
• Composite materials offer excellent fire protection
• Massive 4-3/4″ thick door
• 2-13/16″ thick body
• Gear driven 4-way boltwork
• Drill shattering glass plate relocker protection

Door

• Overall thickness of 6¾”. Constructed with a 2½” defense barrier of outer and inner steel plates enclosing a unique, high-density fire and burglary resistant composite material
• Defense barrier houses a proprietary amalgam of nuggets and steel barriers to withstand concentrated attacks from the most sophisticated equipment used by burglars today
• Heavy-duty pull handle standard on all models

Body

• Total protective thickness of 2¾” enclosing a high-density fire resistant composite material with nuggets and steel barriers
• A reinforced drill resistant door frame protects the door and each individual bolt chamber from severe side attacks
• A proprietary inner steel barrier protects against peeling attacks
• High-strength adjustable shelves with charcoal gray finish
• Equipped with a recessed 9/16” diameter anchor hole

Fire Endurance

90-minute Intertek verified fire rating (When analyzing fire performance, weigh reports from ETL or UL laboratories against unverified factory testing claims)

LOCKS

Equipped with the AMSEC ESL10XL U.L. Listed Type 1 electronic lock. The lock is protected by an internal relock mechanism and a massive drill-shattering hardplate

Hinges

Heavy-duty steel hinges provide smooth door operation

Specs

External Height	15.875"
External Width	19.75"
External Depth	19.375"
Internal Height	10.13"
Internal Width	14.13"
Internal Depth	11.50"
Cubic Inches (interior)	0.95
Weight	485
Door Clearance	10.13 x 14.13
Total Body Thickness	2.75
Total Steel in the Body	0.224
Total Door Thickness Decimal	2
Total Steel on Door Decimal (Gauge)	.12 (11 Ga.)
Burglary Protection (Safe Rating)	TL-15
Burglary Level	Level 8
Fire Rating	ETL
Fire Rating time	90-minute
Fire Rating Degrees	1200°
Fill Type	Concrete Mix
Customizable?	No
